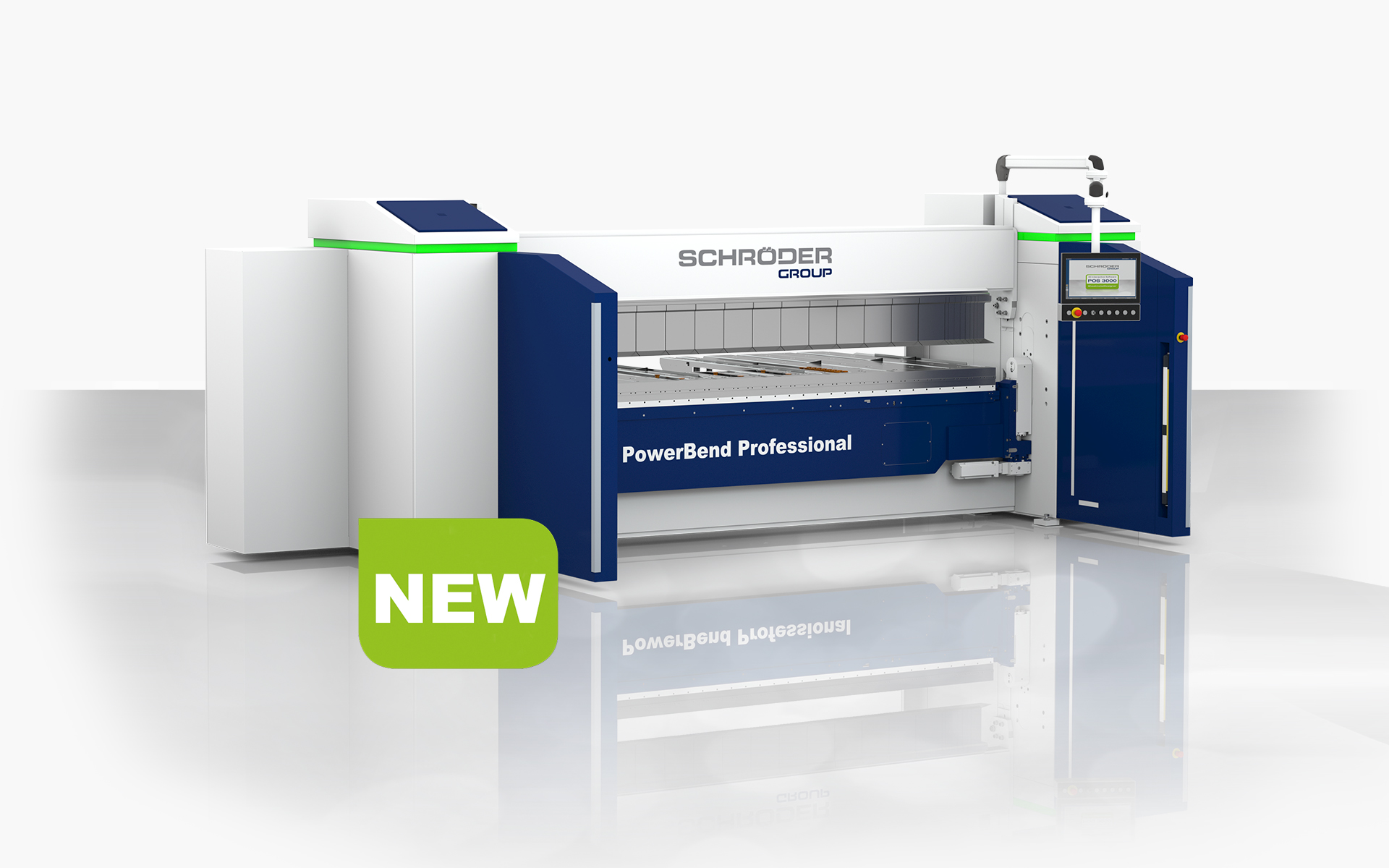

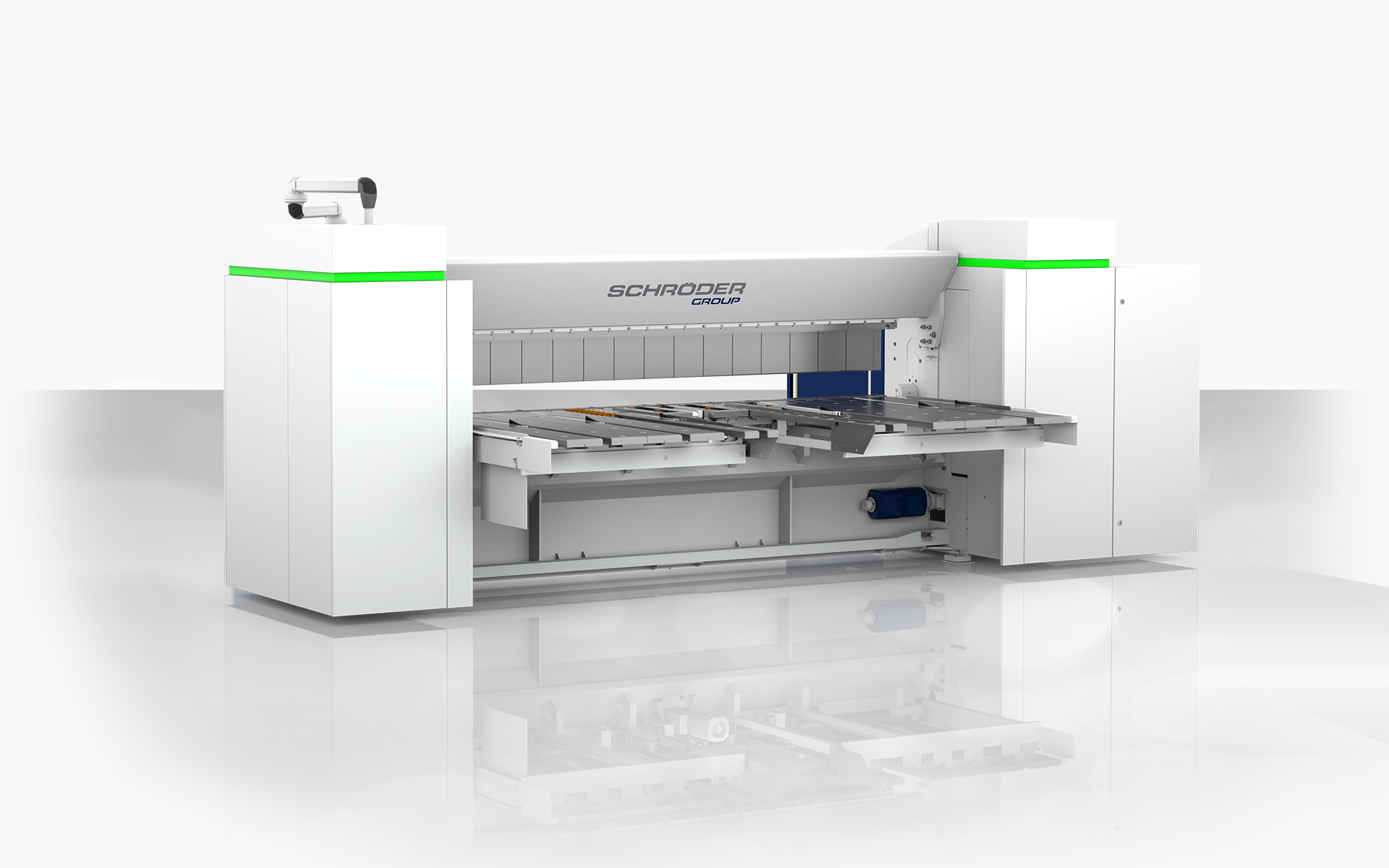

Schröder PowerBend Professional 3200×3.0 is a state-of-the-art electromechanical folding machine designed for processing sheet metal up to 3.0 mm thick. It is optimized for continuous operation in large workshops, medium-sized enterprises, and industrial environments.
Built with a rigid frame designed using Finite Element Method (FEM) analysis and equipped with modern servodrives, the machine ensures high speed, precision, and reliability. Its standout feature is the innovative Up’n Down system, which allows for bending in two directions without flipping the workpiece, significantly increasing overall productivity.
Advantages and Features
540 mm Clamping Beam Stroke: Enables the production of box-shaped items up to 250 mm in height.

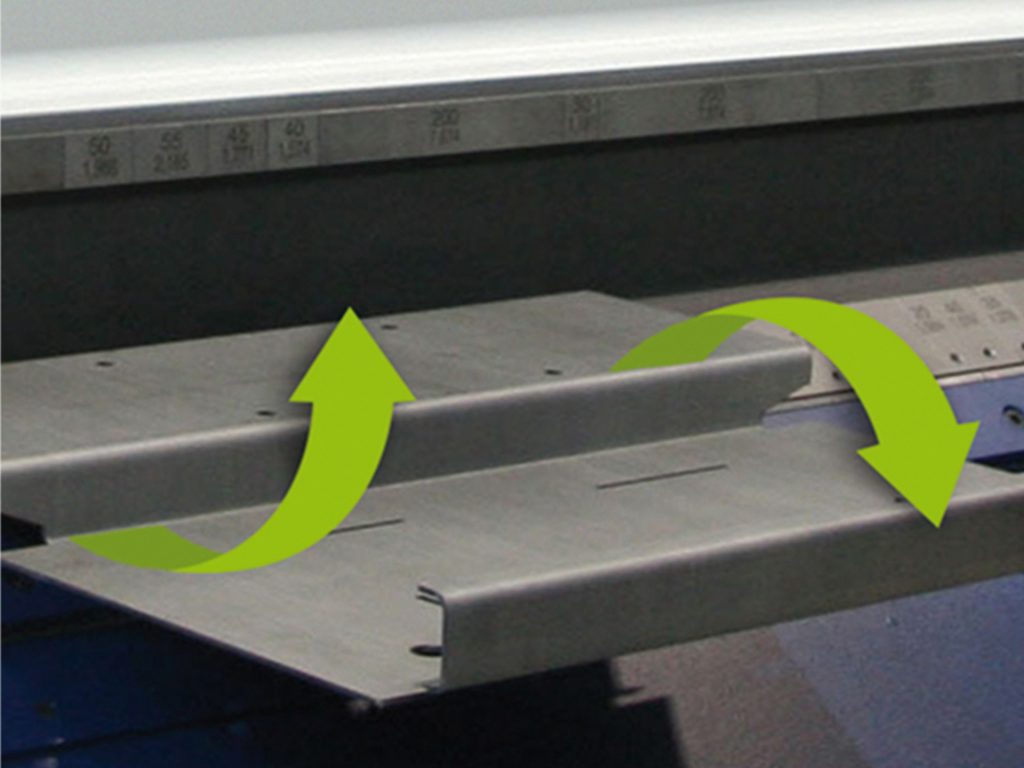

Up’n Down Technology: Executes bends in both directions (up and down) within a single cycle.
Servodriven Folding Beam: Provides precise and rapid adjustments.

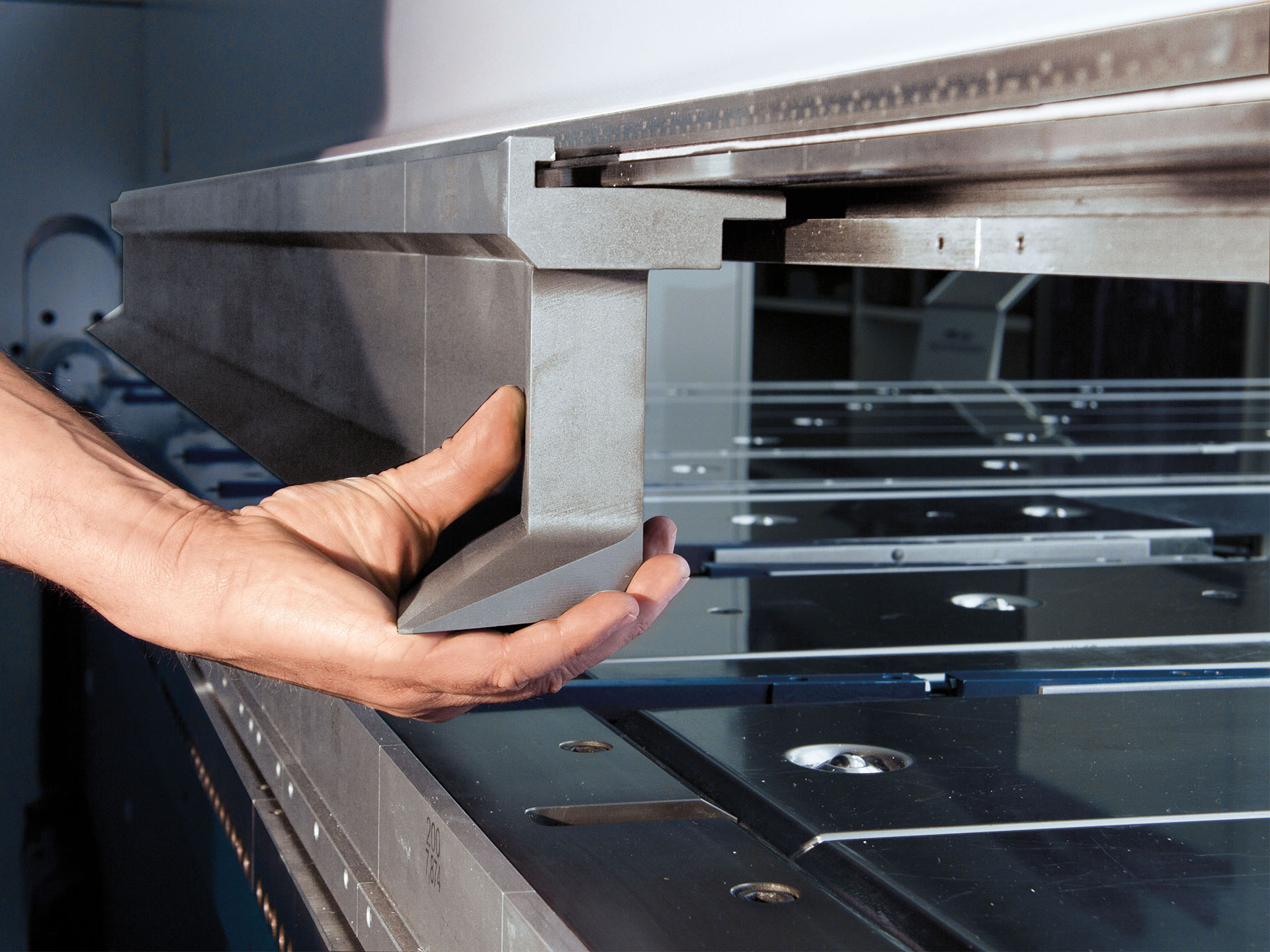

Hydraulic Tool Clamping: Facilitates quick tool changes to minimize downtime.

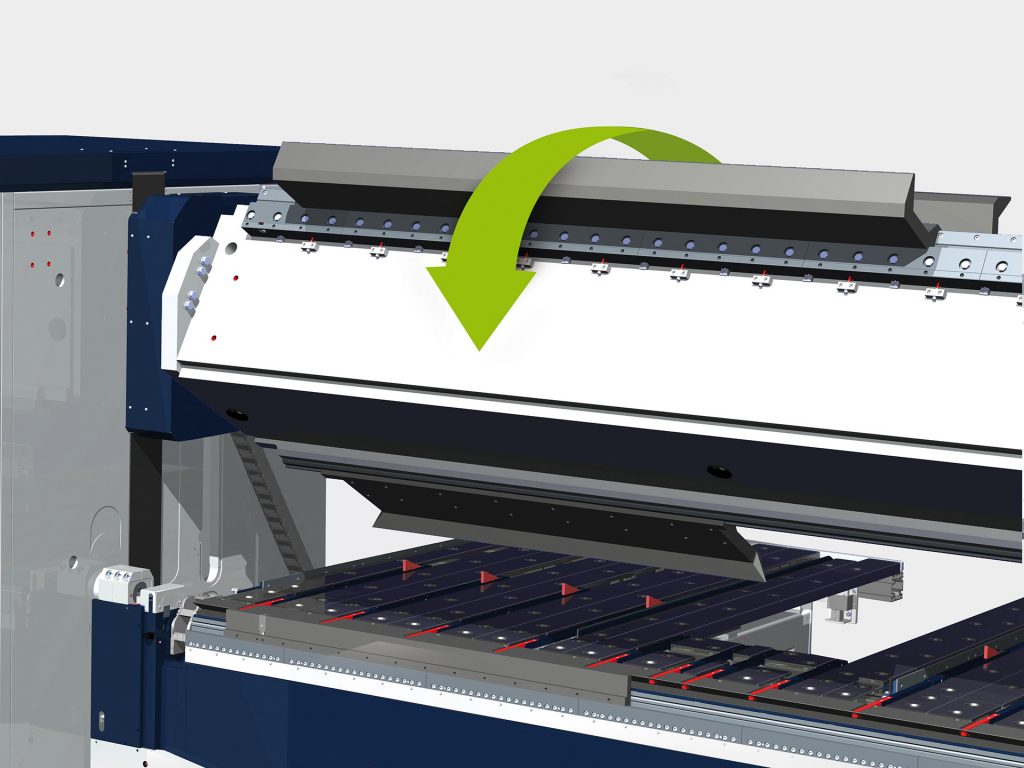

Rotating Clamping Beam Option: Provides two tool stations, drastically reducing setup time for complex profiles.
Advanced Control: Integration with POS 2000 or the optional POS 3000 for 3D graphical control, DXF import, and CAM connectivity.
Industry 4.0 Ready: Equipped with energy-efficient IE3 drives and ready for integration with automated material handling systems.
Standard Equipment
POS 2000 Professional: Includes radius function and remote maintenance capabilities.
WZS 2000: Clamping beam with hydraulic tool clamping.
Folding Beam: Equipped with servodrives and motorized adjustment.
Lower Beam: Features a WZS 16300 blade (1100 N/mm2) with slots for backgauge fingers.
Backgauge System: Range up to 1600 mm, ball transfers, and pneumatic fingers.
Safety Package: Light barriers, RFID protection, and a foot switch.
Note: The standard machine is supplied without tools.
Special Equipment and Options
Rotating Clamping Beam (48°/180°): With hydraulic clamping for multiple tool setups.
Hemming Function: For precise double bends (teardrop/crushed hems).
Up’n Down Package: Fully automatic upward and downward bending cycles.
POS 3000: 3D graphics, DXF import, bending simulation, and CAM link.
Vacuum Suction System: 6 suction cups integrated into the backgauge for material handling.
Backgauge Extensions: U-shaped or J-shaped tables up to 3200 mm.
Industrial Upgrades: 12 kVA transformer, air conditioning for electrical cabinets.
Technical Specifications
