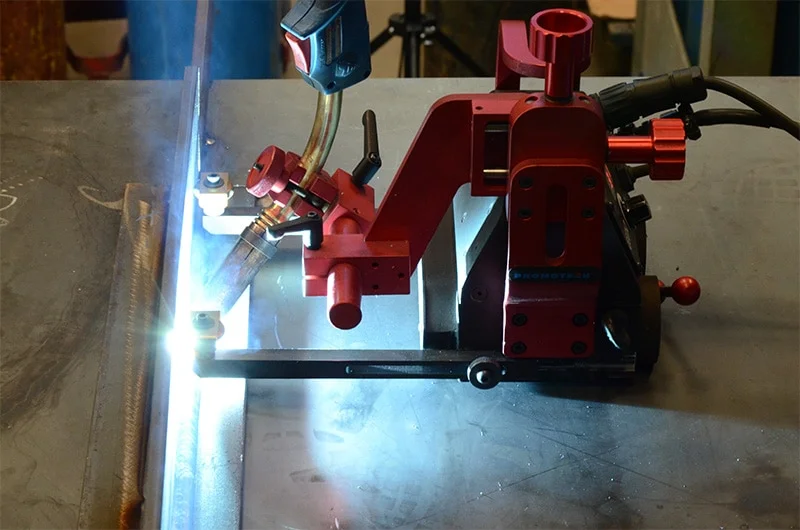

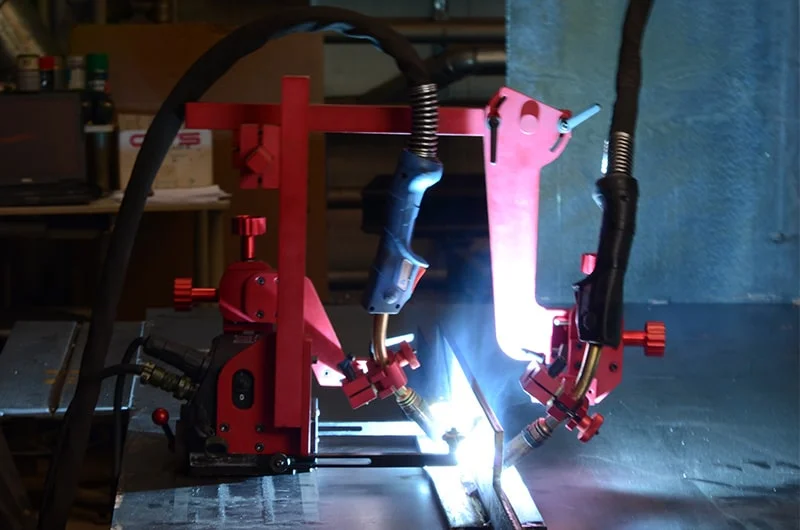

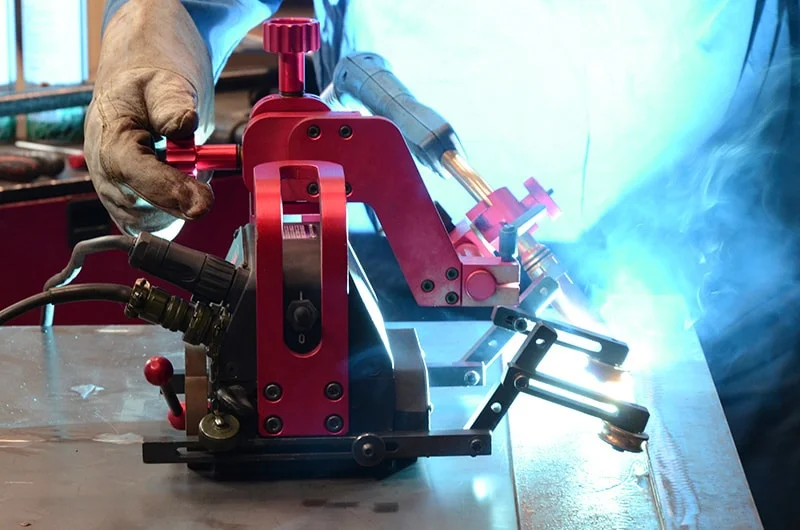

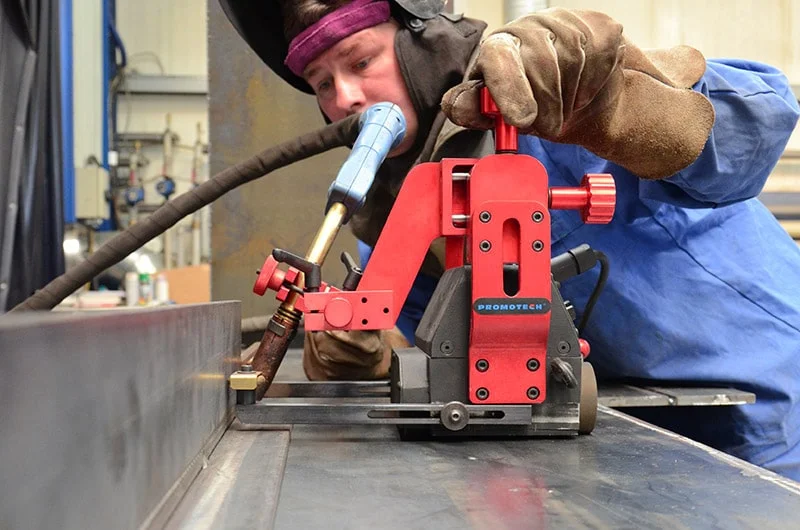

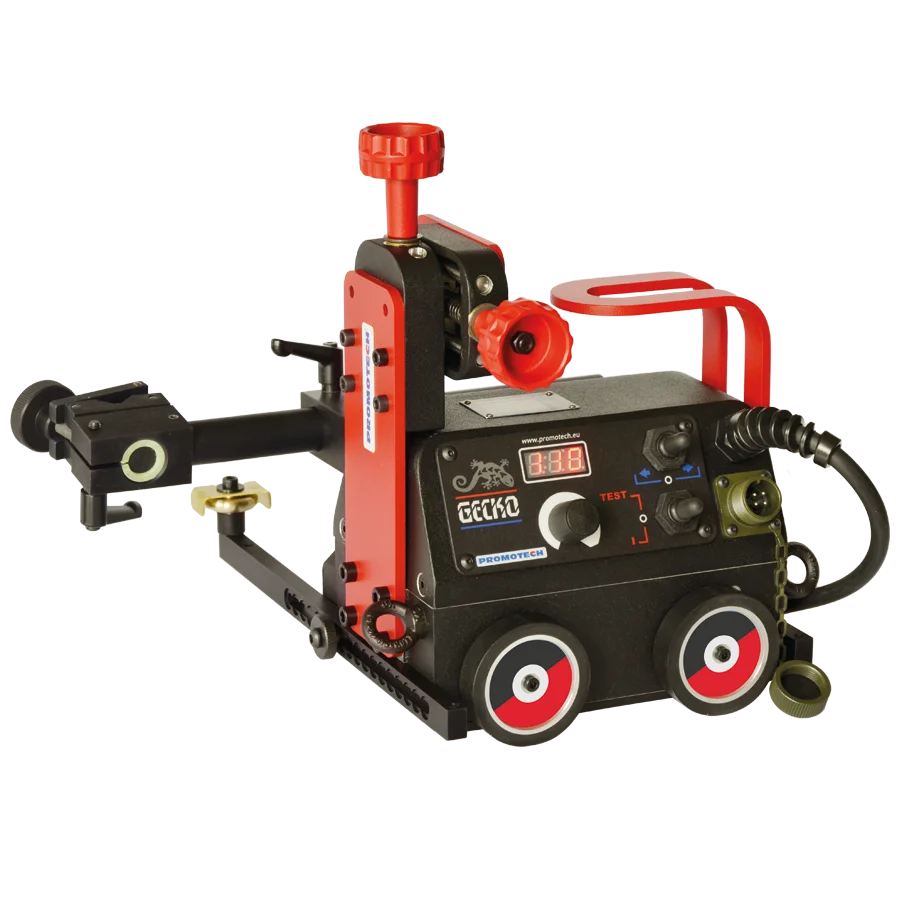

Gecko Compact Welding Carriage

Advantages and Features

The closed-loop speed control system stabilizes travel speed, enabling uniform heat input to produce consistently high-quality welds

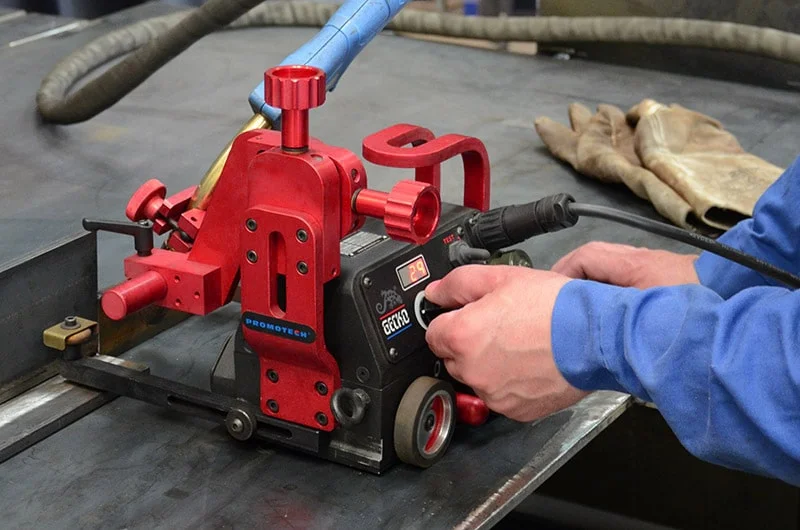

Multifunctional LED display to present travel speed, units, and diagnostic messages

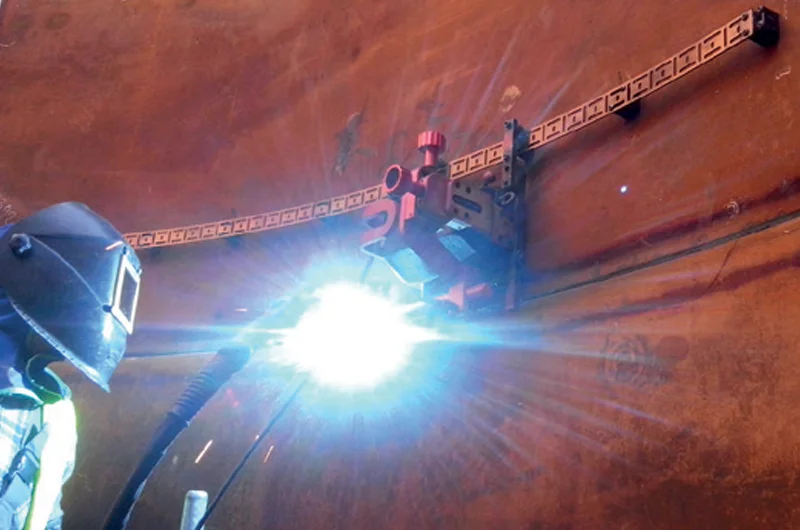

4-wheel drive magnetic traction permits out-of-position use
Possibility of pre-setting the torch activation time before and after the tractor travel for better filling of the weld seam at both ends
Convenient Power Supply 115–230 V, 50–60 Hz or 42 V, 50–60 Hz
GECKO produces consistently high-quality welds and cuts in a fraction of the time required by manual operations
Reduce wasted filler metal – eliminates over-welding
3 years of warranty

Technical Specifications

GECKO GECKO HS

Voltage	1~ 115–230 V, 50–60 Hz 42 V, 50–60 Hz	1~ 115–230 V, 50–60 Hz 42 V, 50–60 Hz
Power	20 W	20 W
Welding position (according to EN ISO 6947 and AWS/ ASME)	PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G PG / 3F / 3G (contact dealer)	PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G
Torch diameter	16–22 mm (0.63–0.87’’); up to 35 mm (1.38”) option	16–22 mm (0.63–0.87’’); up to 35 mm (1.38”) option
Minimum radius of curved workpiece surface	OD 1000 mm (39.4”) ID 1250 mm (49.2”)	OD 1000 mm (39.4”) ID 1250 mm (49.2”)
Minimum workpiece thickness	4 mm (0.16’’	4 mm (0.16’’)
Ground clearance	4 mm (0.16’’	4 mm (0.16’’
Horizontal pulling force	150 N	150 N
Vertical pulling force	100 N	N/A
Cross slide adjustment range	0–35 mm (0–1.38’’) up down, left-right	0–35 mm (0–1.38’’) up down, left-right
Horizontal speed	0–110 cm/min (0–43.3 in/min)	5–220 cm/min (1.5–86.6 in/min)
Vertical speed	0–100 cm/min (0–39.4 in/min)	N/A
Weight	8 kg (18 lbs)	8 kg (18 lbs
Welding settings storage	1 (last used)	1 (last used)
Product Code (115–230 V, 50–60 Hz, plug EU)	WOZ-0466-10-20-00-0	WOZ-0528-10-20-00-0
Product Code (115–230 V, 50–60 Hz, plug UK)	WOZ-0466-10-10-00-0	WOZ-0528-10-10-00-0
Product Code (42 V, 50–60 Hz	WOZ-0621-10-04-00-0	WOZ-0622-10-04-00-0
