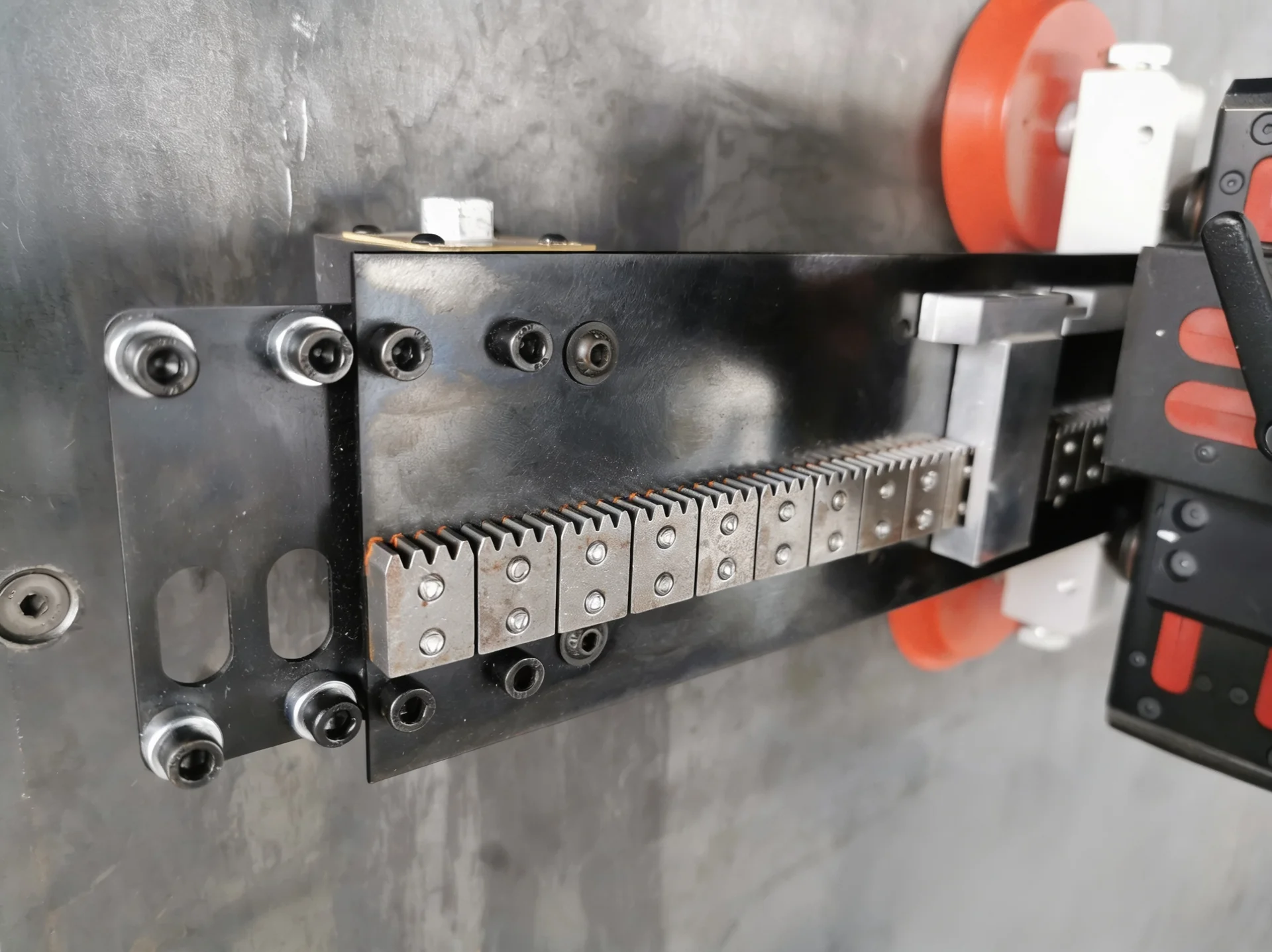

Hi-Flex Tracks

Advantages and Features

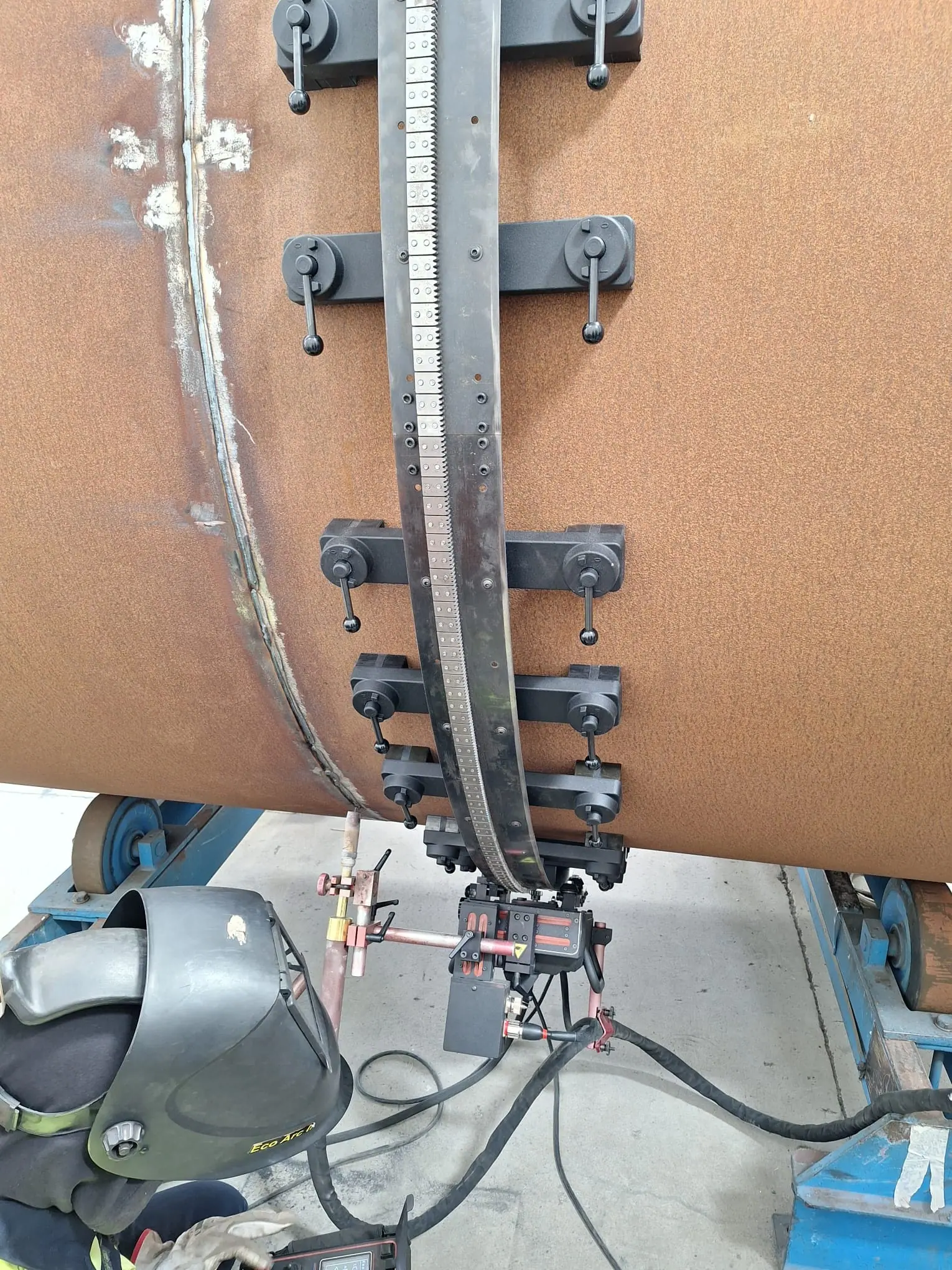

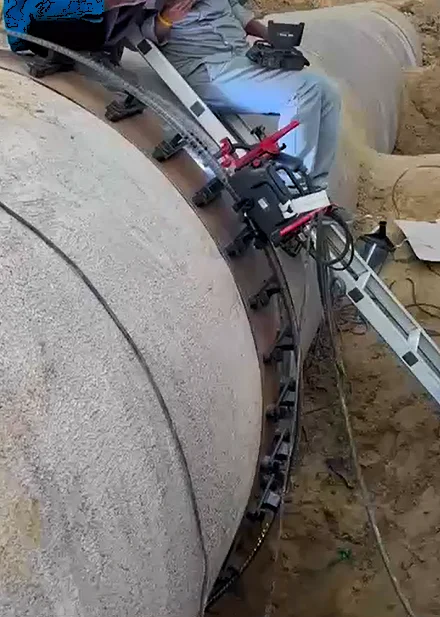

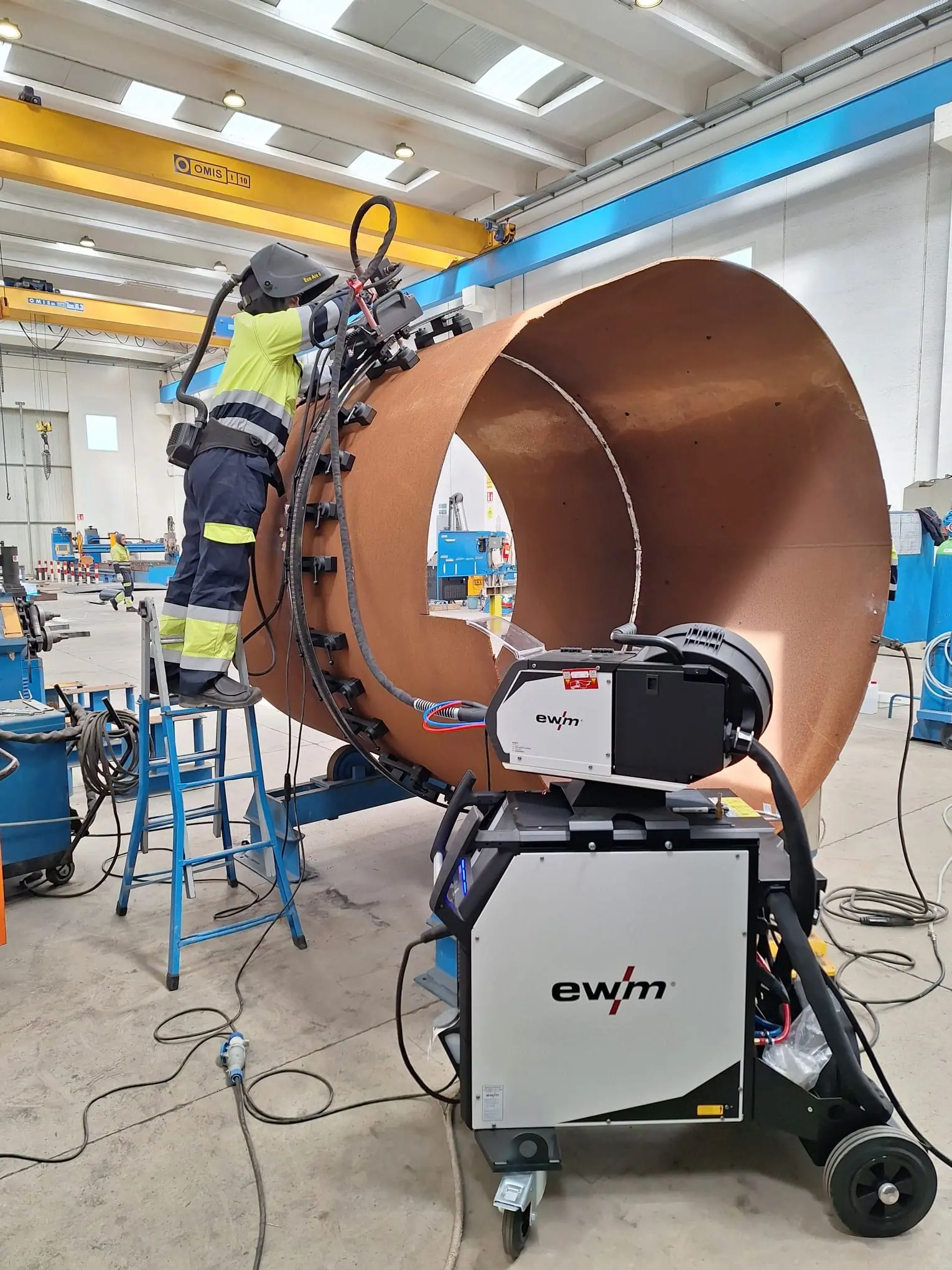

For circumferential, irregular, and straight-line applications

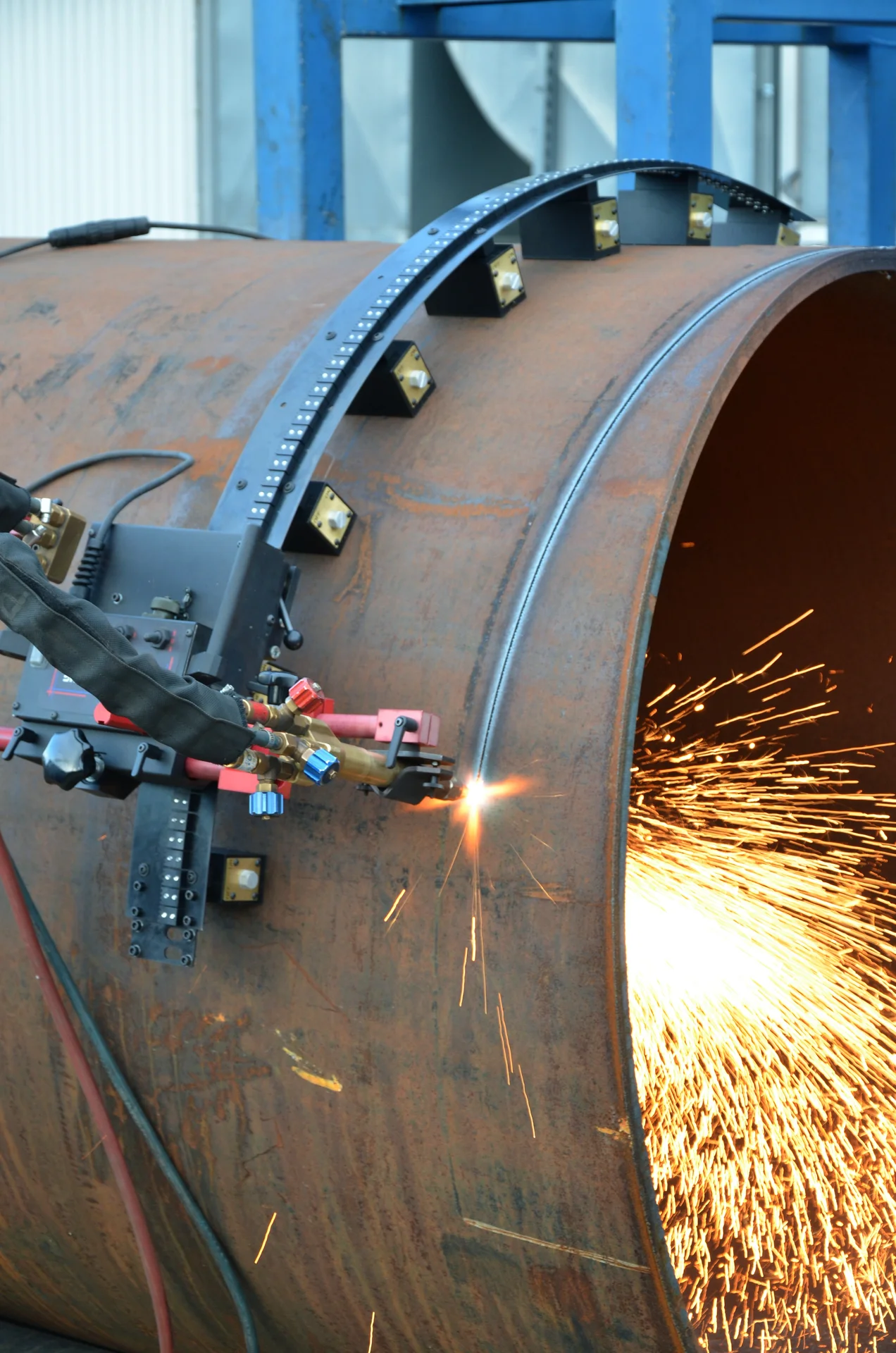

The minimum curve radius on the convex surface is 0.75 m (30″)

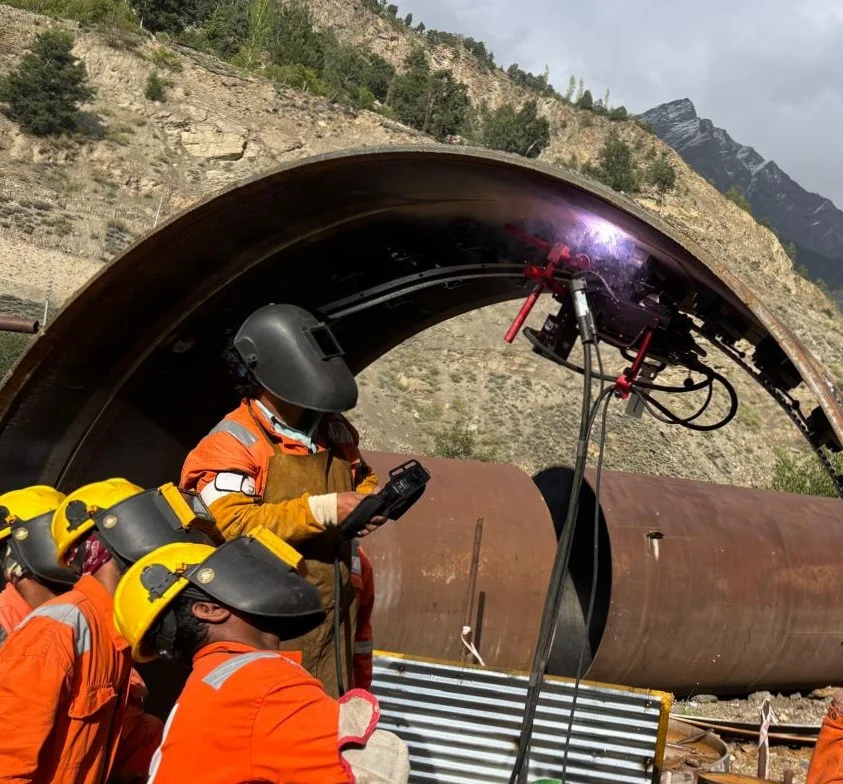

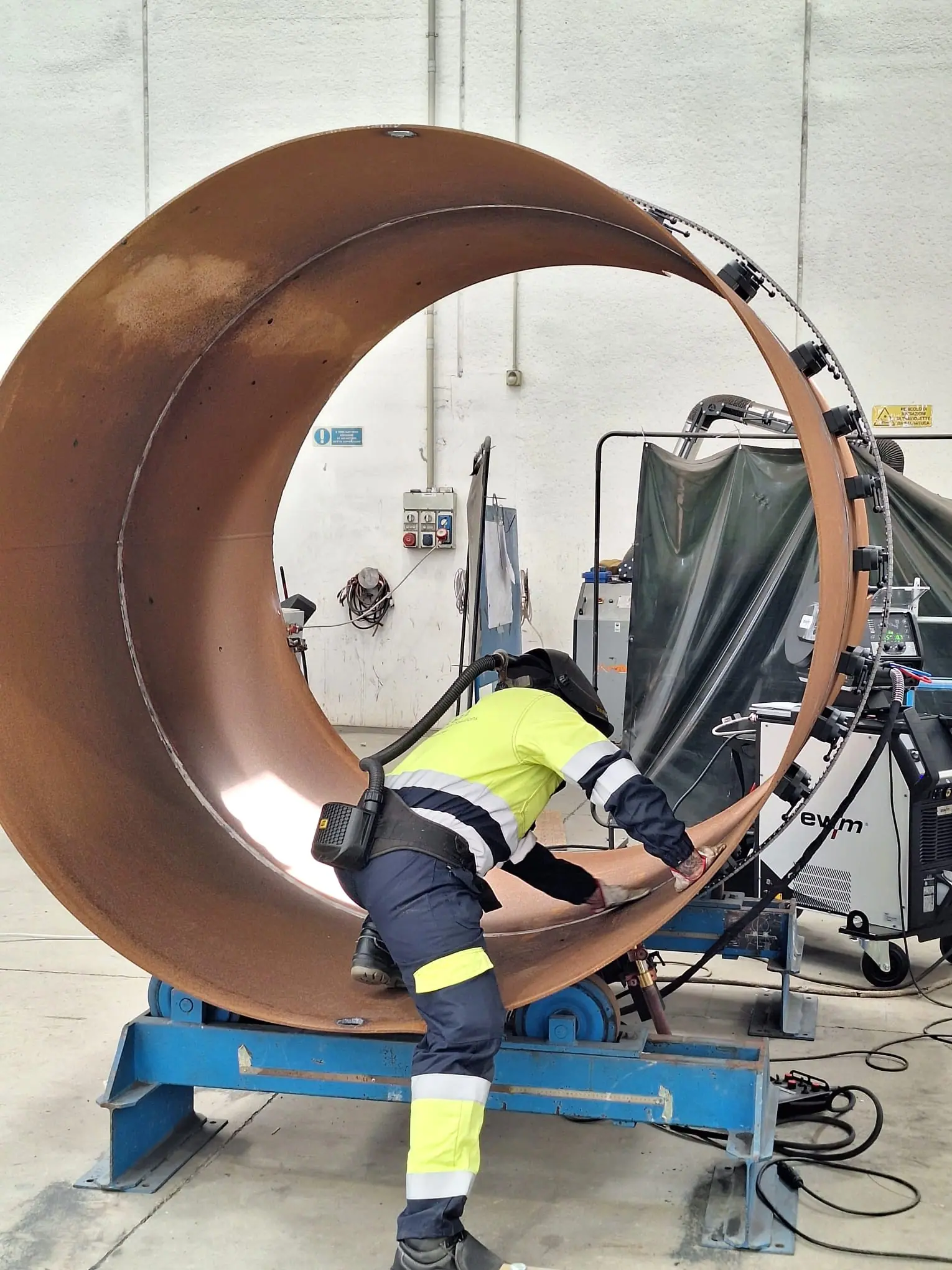

The minimum curve radius on the concave surface is 1.7 m (67″)
Minimum OD 1.5 m (60″) for the external run
Length of a single rail, 1.52 m (5 ft)
The maximum number of units is 15 pcs (if narrow magnetic units are in use)
Joinable for unlimited run length
Can be fixed on both ferrous and non-ferrous materials by means of magnetic or vacuum units to allow travel in any plane or position

Technical Specifications

Product code	Description
TRO-0673-00-00-00-0	Hi-Flex Track min OD 1500 mm

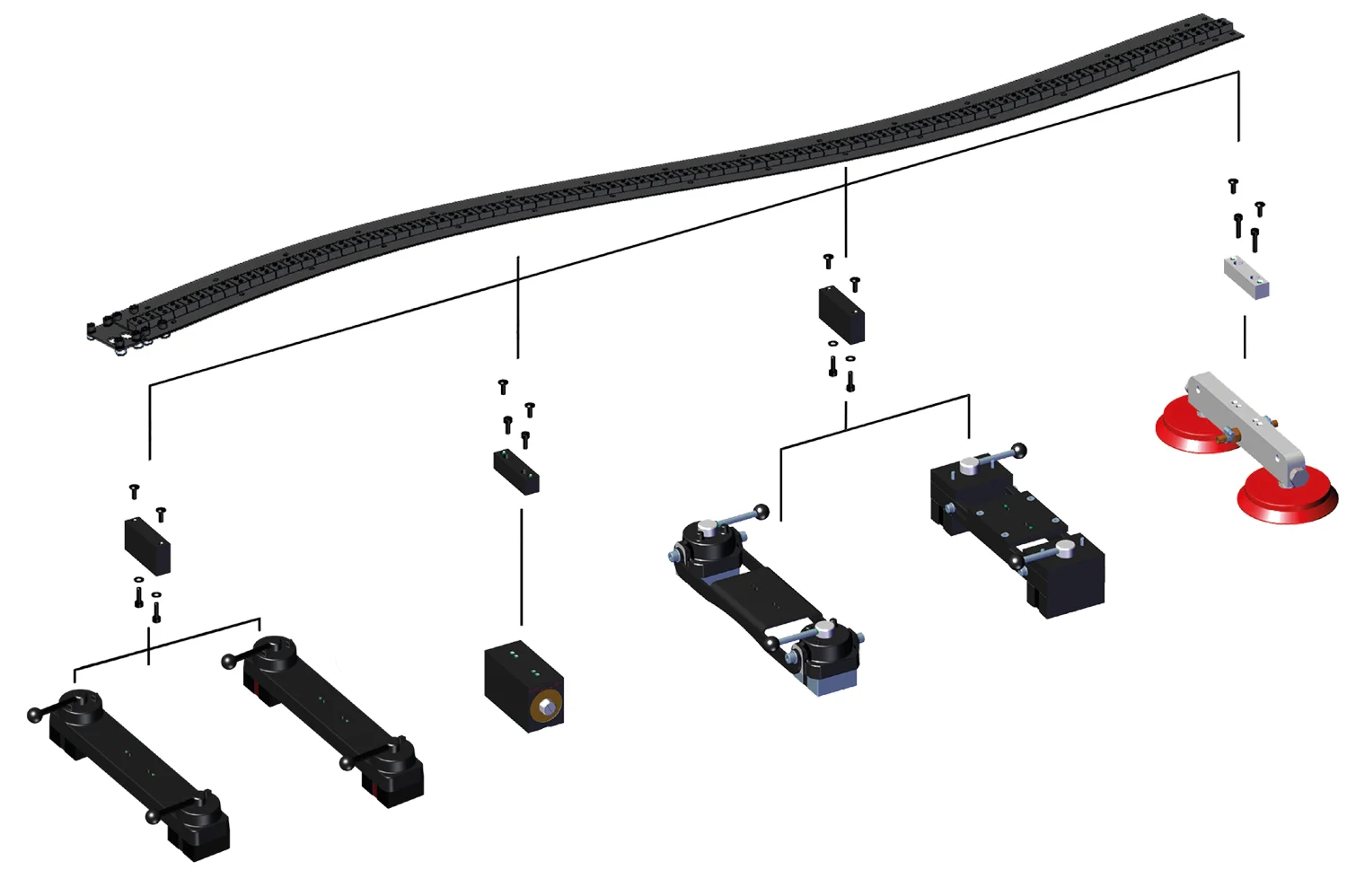

DYS-0482-19-00-00-0	Bracket for magnetic unit for semi-flexible track and Hi-Flex track

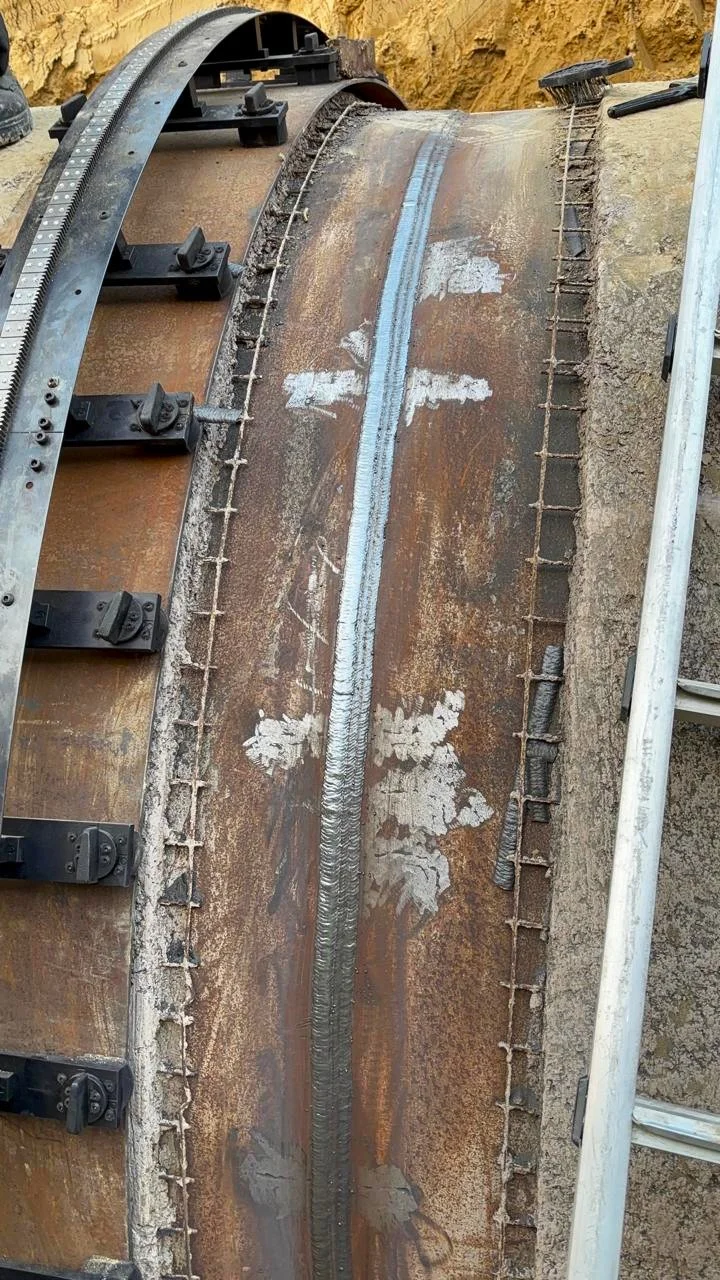

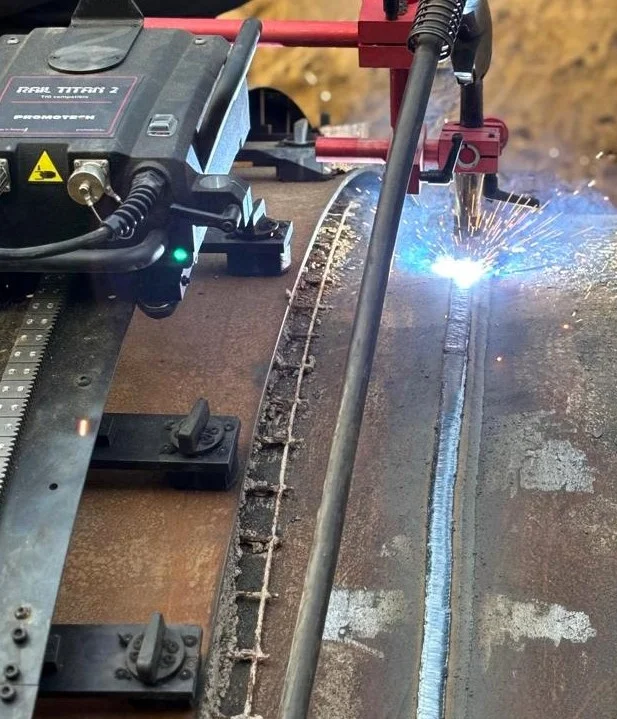

ZSP-0475-92-00-00-0	Magnetic unit
ZSP-0475-93-00-00-0	Heat-resistant magnetic unit
DYS-0582-10-00-00-0	Bracket for magnetic narrow unit for semi-flexible track and Hi-Flex track
PDS-0582-10-00-02-0	Narrow magnetic unit with hexagon
ZSP-0475-85-00-00-0	Pivoting magnetic unit
ZSP-0523-19-00-00-0	Spacing-adjustable magnetic unit

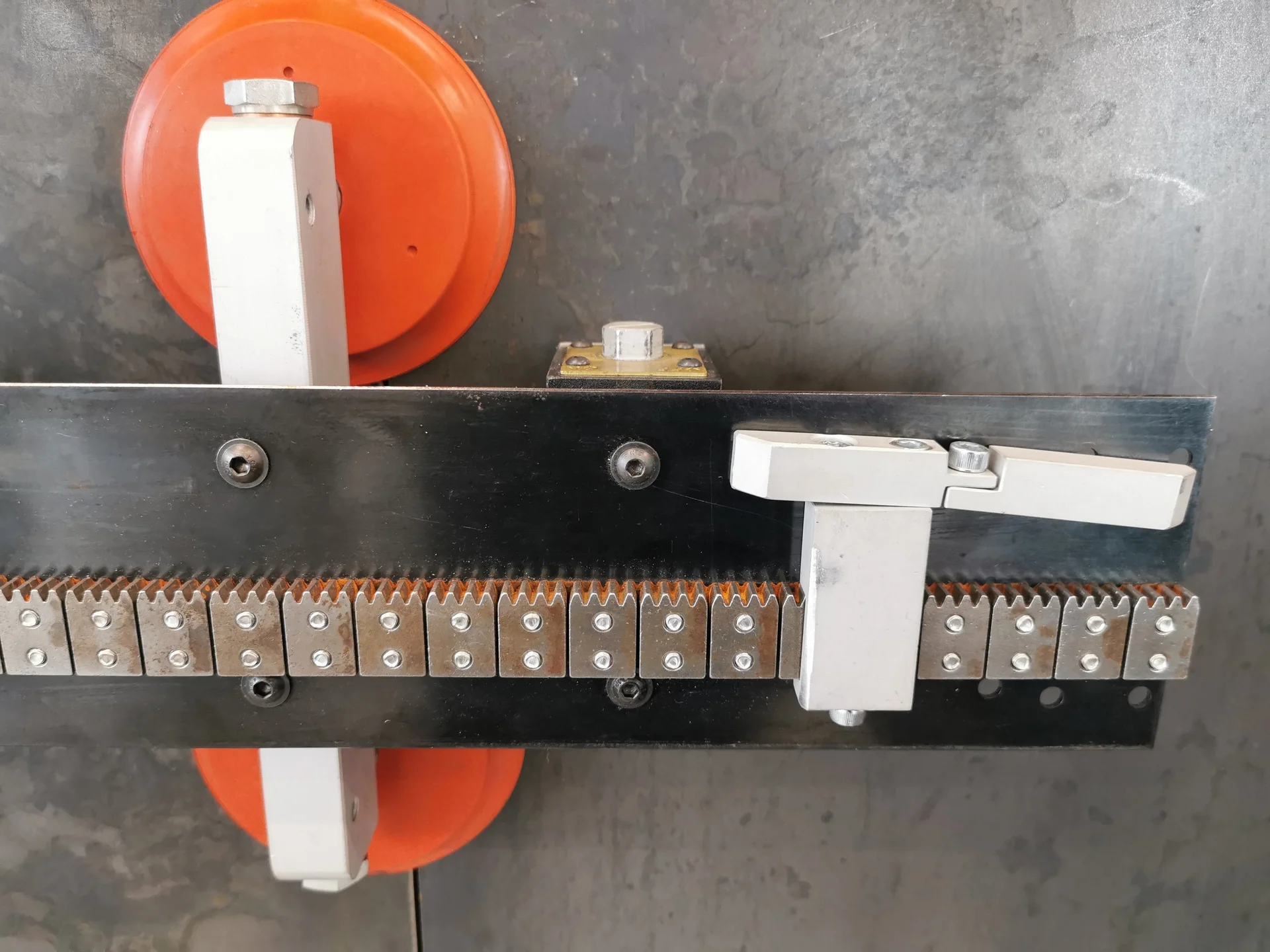

DYS-0541-11-01-00-0	Bracket for vacuum modular unit for semi-flexible track and Hi-Flex track

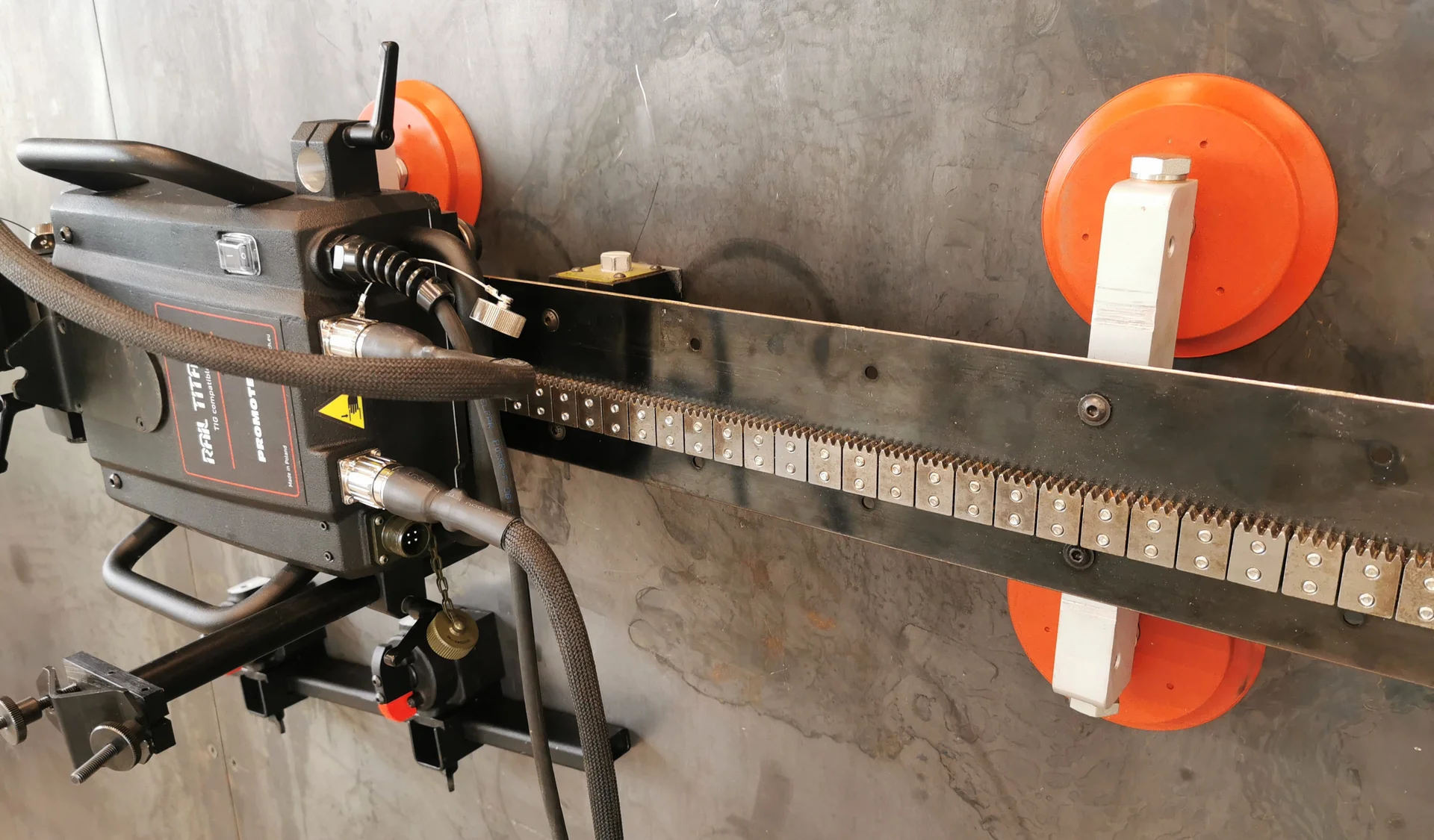

MST-0541-10-02-00-0	Vacuum modular unit

Welding position	Qty. of units per track
PA/ 1G	min. 8 pcs
PB/2F	min. 8 pcs
PC/2G	max 15 pcs*
PD/4F	max 15 pcs*
PE/4G	max 15 pcs*
PF/3F	max 15 pcs*
PF/3G	max 15 pcs*
* using the narrow magnetic units
