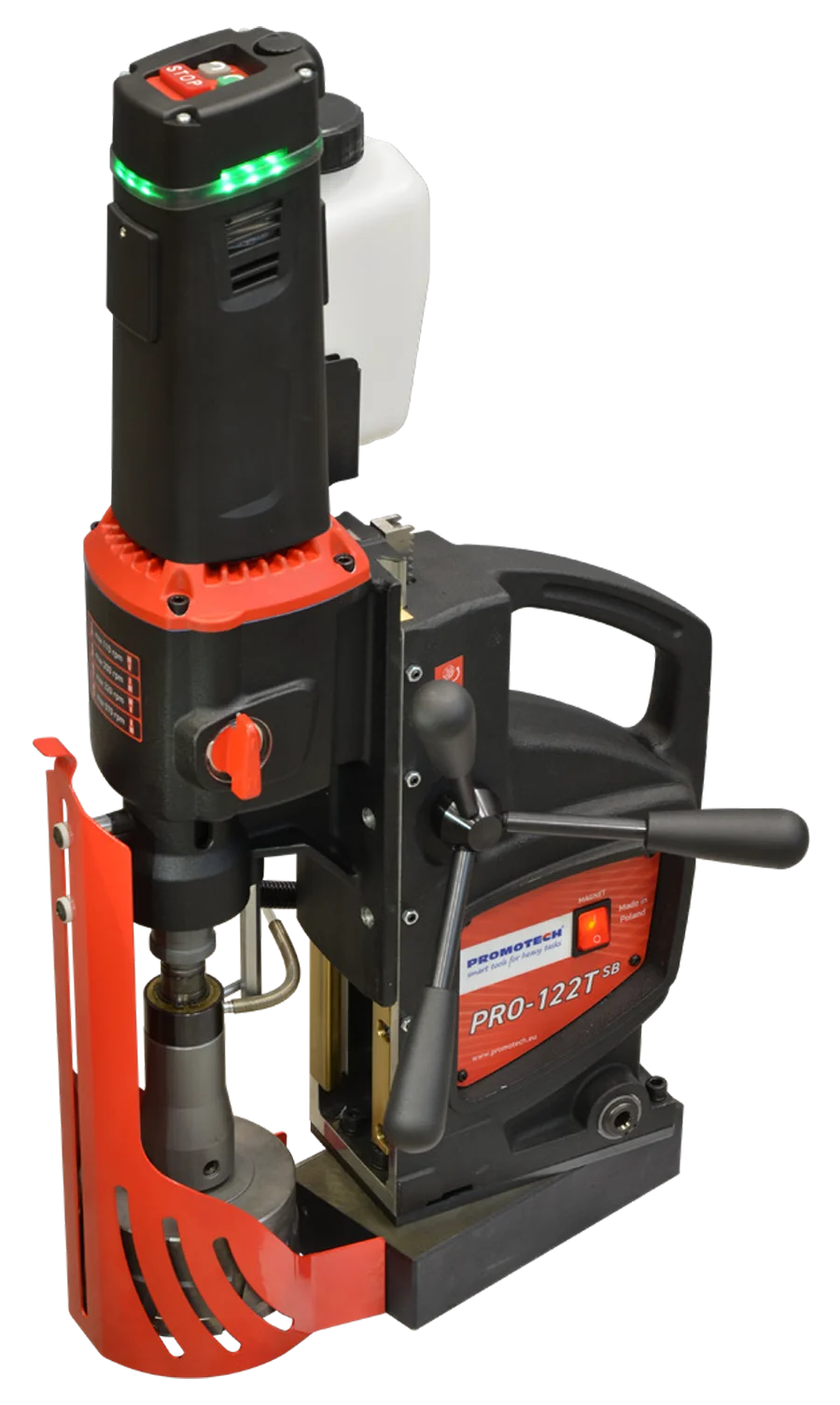

Industrial Tapping & Drilling Machine With Swivel Base PRO-122T SB

Features and Advantages

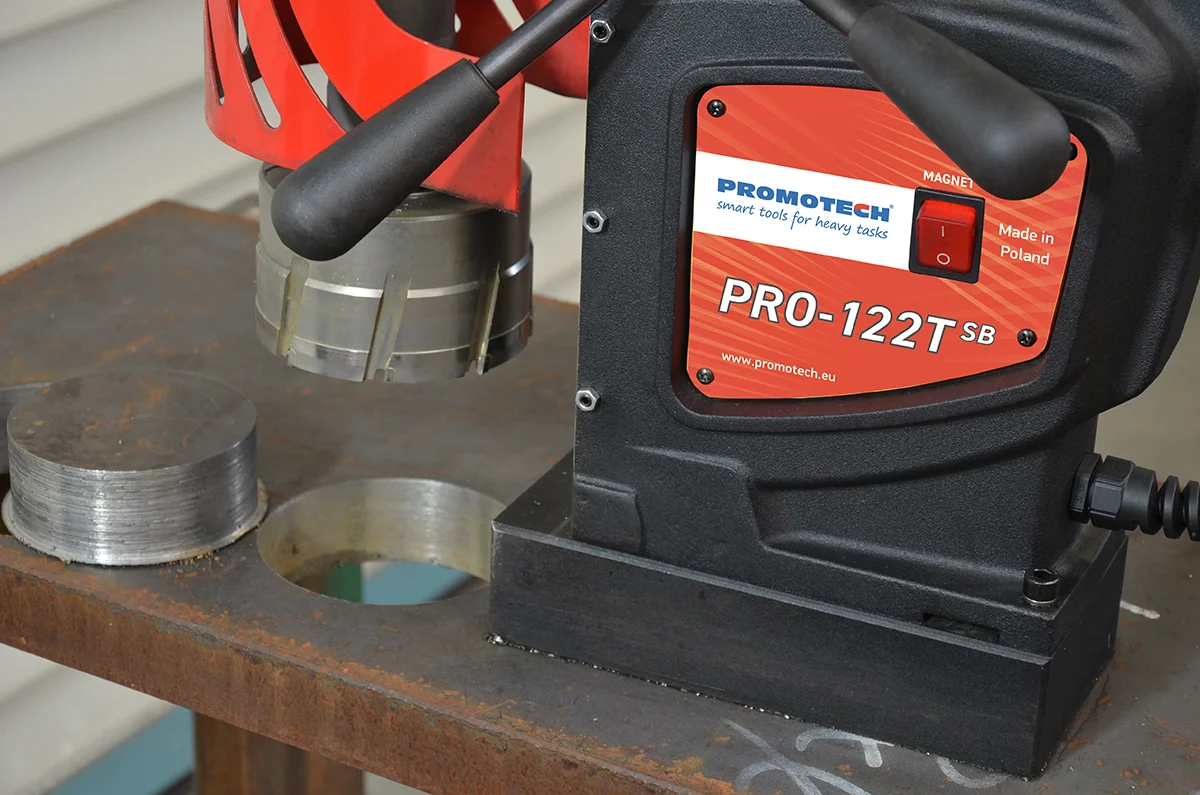

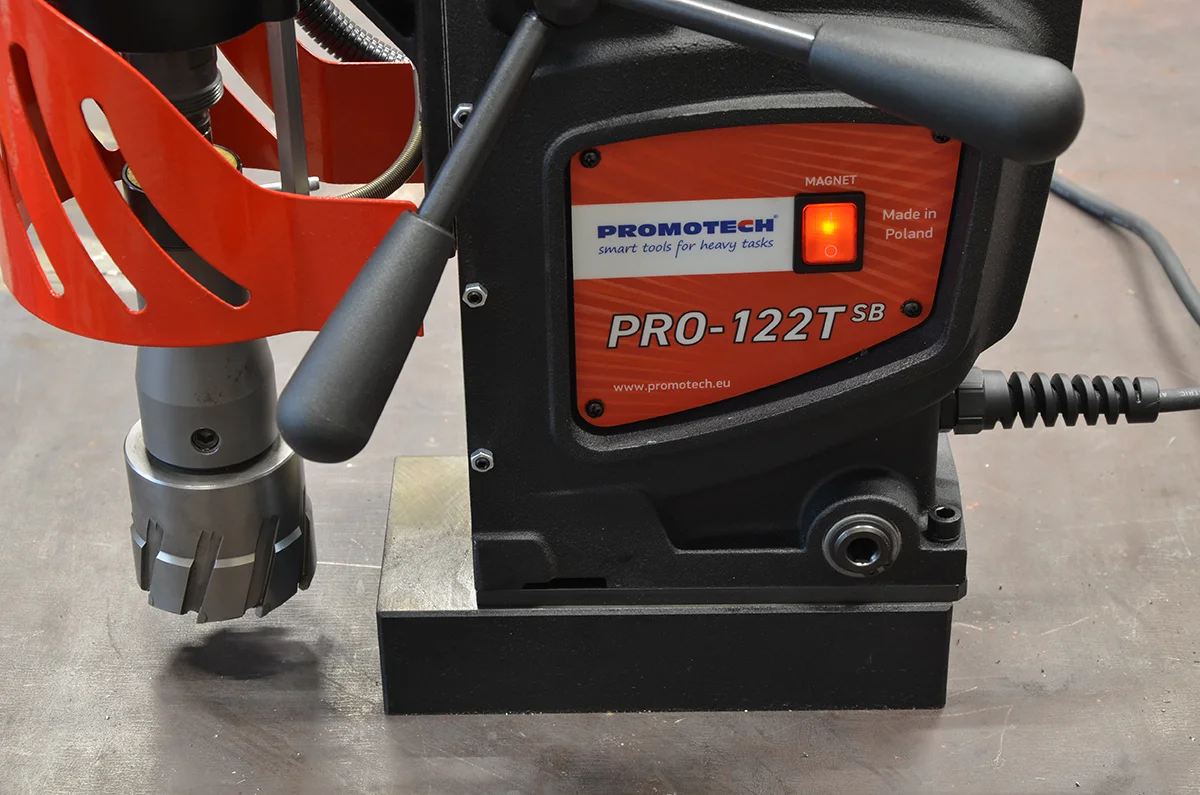

The swivel base enables local displacement of the machine to facilitate precise hole positioning
The most powerful motor in its class (among MT3 drills) with heavy-duty 4-speed gearbox
Electronic Speed Stabilization System (ESSS) maintains stable speed regardless of load changes
Tapping of through and blind holes

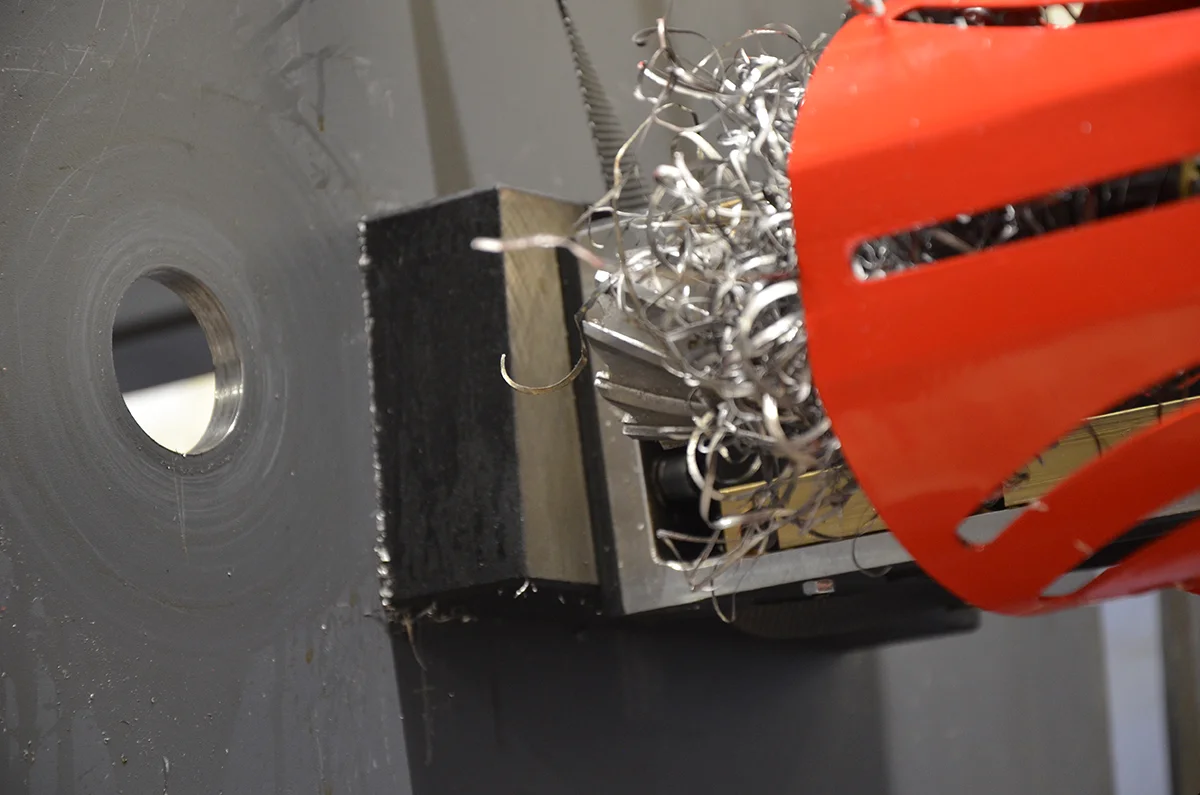

Milling with TCT or HSS cutters or drilling
Electronic clutch
Both overload and overheating protection
2 years of warranty

Technical Specifications

Motor Speeds (under load)	75–110 rpm (gear I) 135–200 rpm (gear II) 220–320 rpm (gear III) 390–570 rpm (gear IV)
Power	2300 W
Weight	28.5 kg (63 lbs)
Max milling capacity *	110 mm ÷ 120 mm for up to 2” D.O.C. cutters w/o swivel base in use 110 mm for up to 2” D.O.C. cutters with or w/o swivel base in use 100 mm for up to 4” D.O.C. cutters with or w/o swivel base in use
Max drilling capacity	31.75 mm (1-1/4”)
Max Tap size	M30 (1-1/4”)
Stroke	225 mm (9”)
Max depth of cut	100 mm (4”)
Voltage	1~ 220–240 V, 50–60 Hz 1~ 110–120 V, 50–60 Hz
Overload protection	yes
Overheat protection	yes
Continuous Speed Adjustment	yes
ESSS (Electronic Speed Stabilization System)	yes
Semi-automatic gib adjustment	yes
MFSC (Magnetic Field Shape Control)	yes
ESB – Energy Saving Base	yes
Magnet detachment safeguard	yes
Magnetic clamping force (surface with the thickness of 25 mm and roughness Ra = 1.25)	1835 kgf (18 000 N)
Magnet Base Dimensions	110 mm × 220 mm × 50 mm 4.3” × 8.7” × 2”
Base adjustment range	shift +10 mm (0.39”)/-5 mm (0.20”) turn ±15° Min. Workpiece Thickness 10 mm (3/8”)
Min. Workpiece Thickness	10 mm (3/8”)
Spindle	MT3
Tool holder	19 mm (3/4”) or 32 mm (1-1/4”) Weldon
Product Code 220–240 V, 50–60 Hz	WRT-0739-10-20-00-0
Product Code 110–120 V, 50–60 Hz	WRT-0739-10-10-00-0
