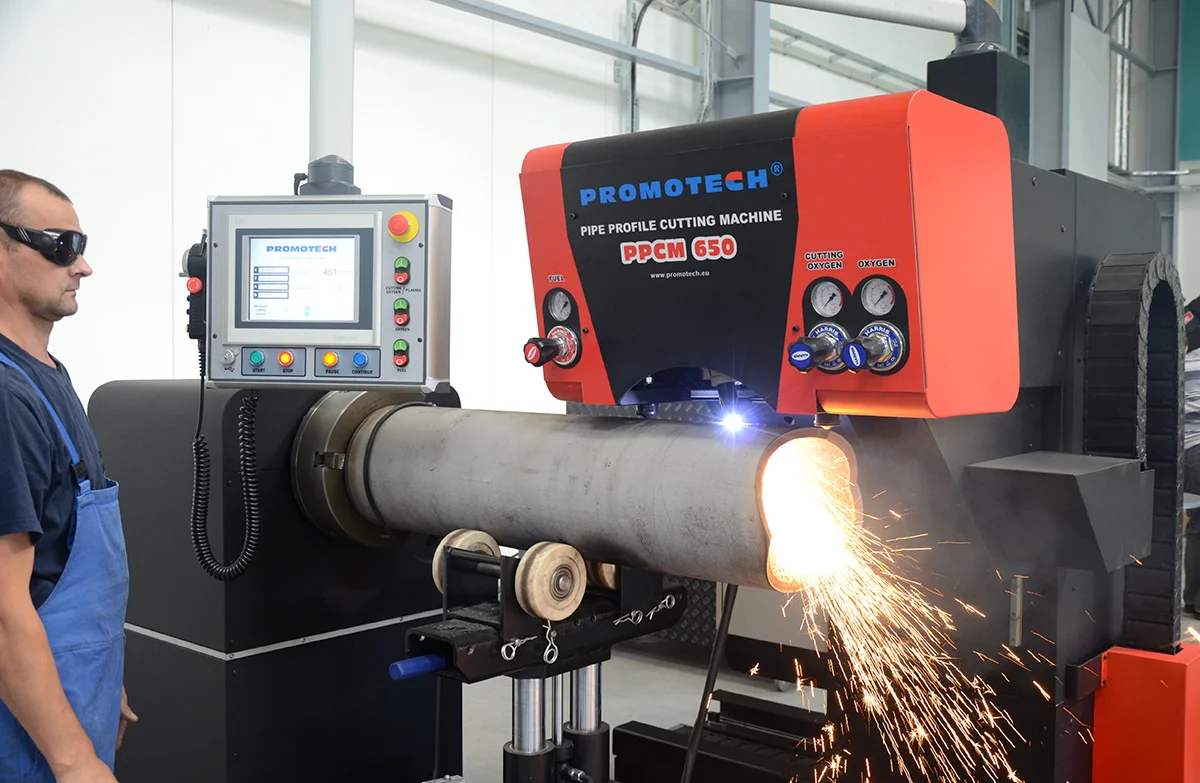

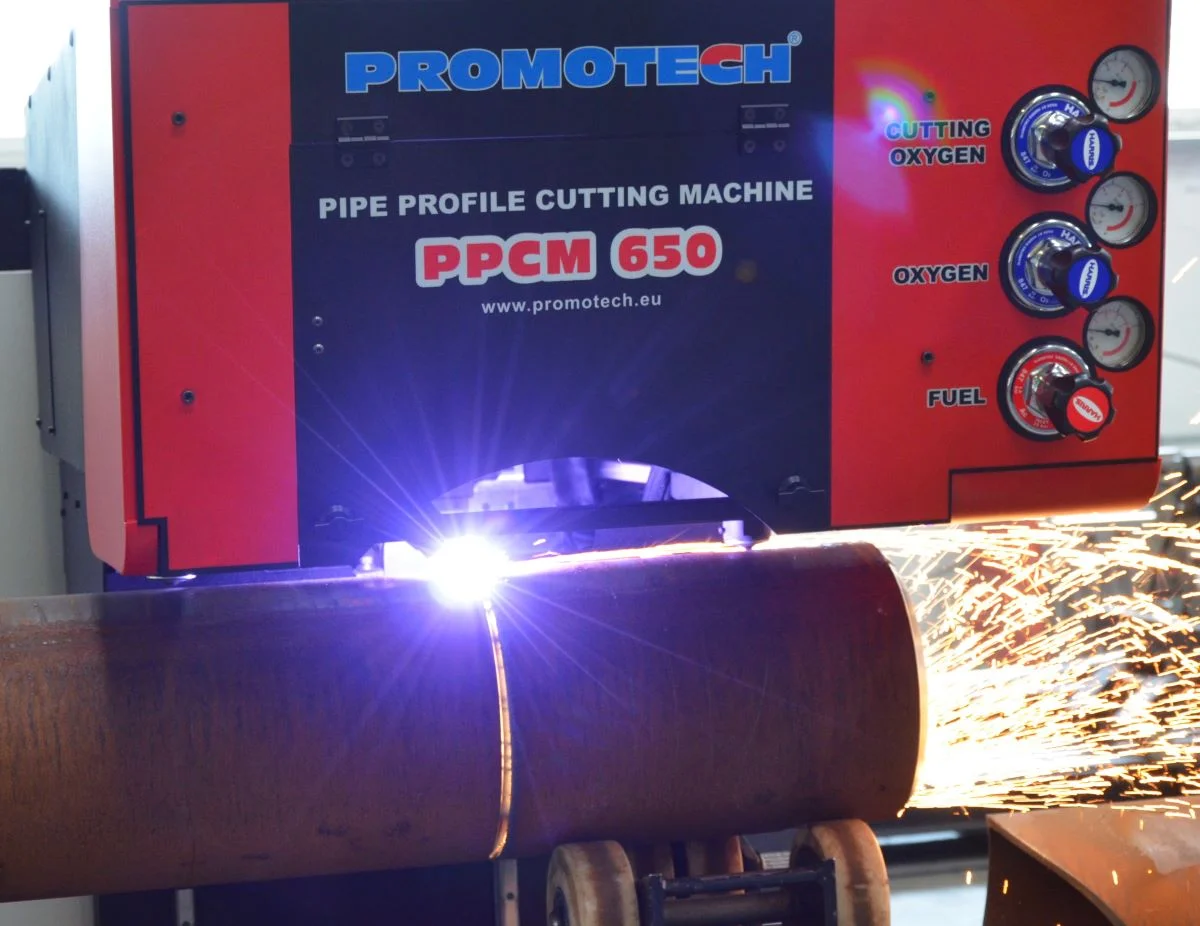

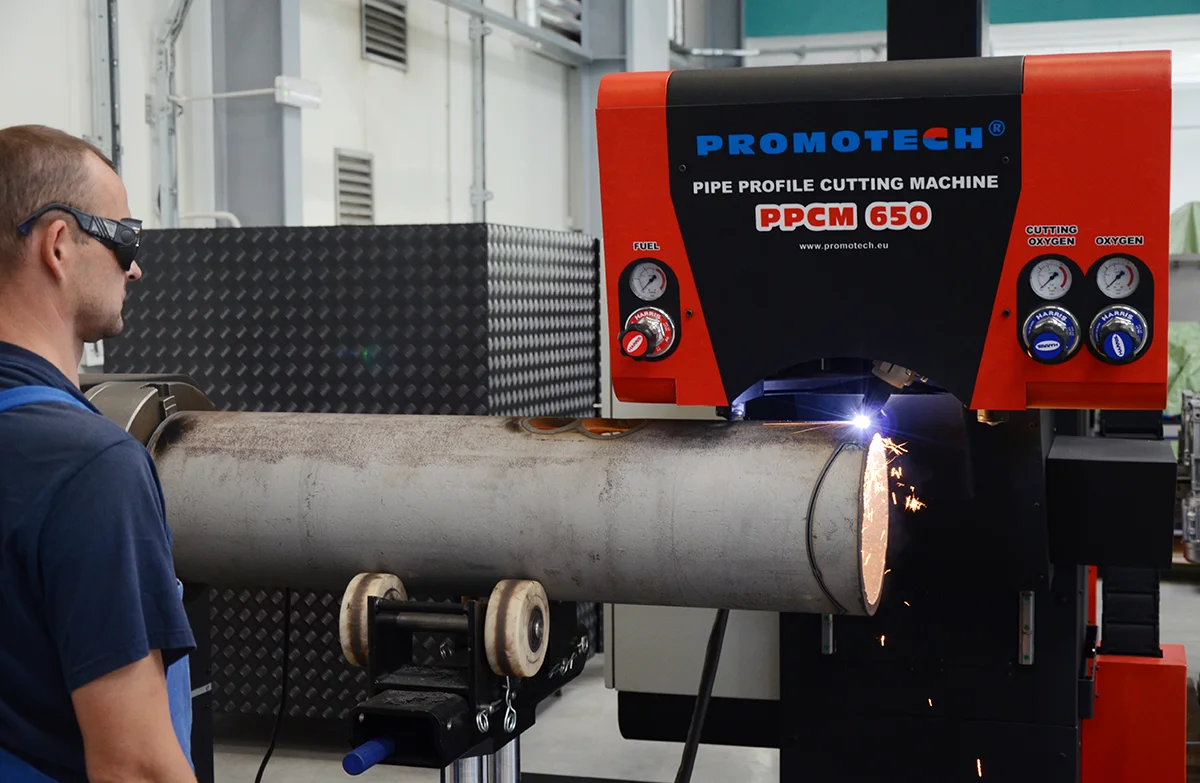

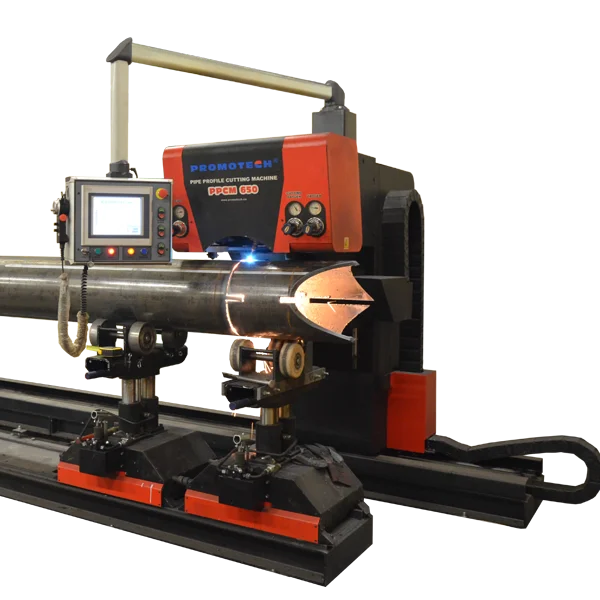

PPCM-650 Pipe Profile Cutting Machine

Brand:
Order a product
Technical specialist

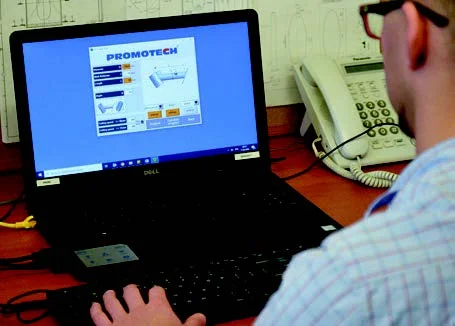

The most important feature and advantage of PPCM-650 is its user-friendly software, including a wide scope of standard macros representing the typical cutting shapes. An integrated library of macros allows for the parametric definition of typical pipe joints and fast shape programming on-site directly from the machines’ control panel just after a short training. Off-line programming is also possible by means of dedicated PPCM SIM PC software containing the same macros library. Pipe joints can be prepared remotely in the office to keep the machine operating, increasing process efficiency and reducing downtime.

Advantages and Features
  • User-friendly software, including a library of macros for most typical cutting shapes
  • Automatic compensation of cutting speed depending on the material thickness, torch angle, and cutting direction for the best cutting quality
  • Heavy-duty rigid construction
  • Well-proven in most demanding environments
  • Easy access to gas valves
  • Fume exhaust system through spindle (option)
  • Additional torch to heat up the material (option)
Technical Specifications
Pipe OD diameter 50 - 650 mm (2-26")
Max. pipe length 6 or 12 m (19 or 39 ft.)
Pipe weight up to 3 000 kg
Wall thickness 3 – 50 mm
Max. cutting angle 45 degree
Cutting method Oxy-Acetylene

Oxy-Propane (Option)

Plasma (Option)
Ignition: Oxy-fuel / Plasma Manual / Automatic
Pipe support 2 pcs for up to 6-meter long pipes

4 pcs for up to 12-meter long pipes

Additional supports on request
Vertical oval compensation mechanism Included
Airconditioning of control cabinet Available as Option
Menu language English, Croatian, Finnish, French, Russian, Turkish Other languages on request
Fume exhaust system Available as Option
Auto nesting of multiple parts Available as Option
Transfer of NC data from CAD: Tekla files, SAT, STEP, IFC, Excel etc. files thru LANTEK flex 3D Available as Option
