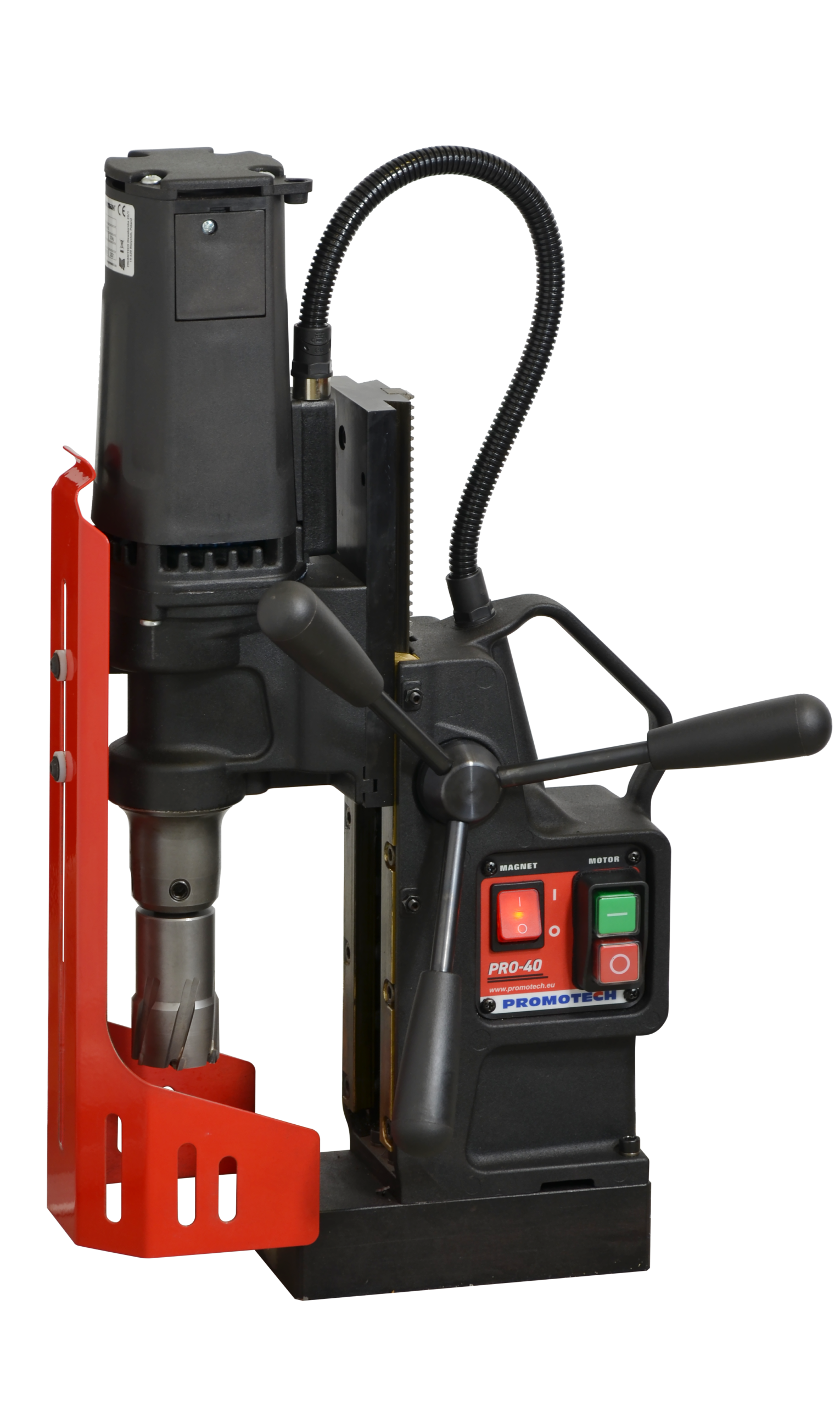

PRO-40 Practical Mag Drill

Features and Advantages

Compact design with excellent ratio weight/power
Rigid casting designed to withstand downward drilling force, prolonging the tool’s life
Large stroke enables the use of long tools
Innovative smart magnet with reduced weight
Energy Saving Base (ESB) uses only 50% of its power when the motor is not running
Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
Magnetic Power Adhesion Control (MPAC) detects the adhesive force of the electromagnetic base and protects both the machine and the operator from working on too thin workpiece
Up to 2 years of warranty

Technical Specifications

Motor Speeds (under load)	440 rpm
Power	1100 W
Weight	13 kg (28.7 lbs)
Max milling capacity TCT/HSS	40/40 mm (1.57"/1.57")
Max drilling capacity	16 mm (0.63")
Stroke	160 mm (6.3")
Max depth of cut	50 mm (2")
Voltage	1~ 220–240 V, 50–60 Hz 1~ 110–120 V, 50–60 Hz
MFSC (Magnetic Field Shape Control)	yes
MPAC (Magnetic Power Adhesion Control)	yes
ESB (Energy Saving Base)	yes
Magnetic clamping force	1009 kgf (9900 N)
Magnet base dimensions	84 × 168 × 41.5 (mm) 3.3 × 6.6 × 1.6 (")
Min. work piece thickness	6 mm (1/4")
Spindle	19 mm (3/4") Weldon
Tool holder	19 mm (3/4") Weldon
Product Code 220–240 V, 50–60 Hz	WRT-0723-10-20-00-0
Product Code 110–120 V, 50–60 Hz	WRT-0723-10-10-00-0
