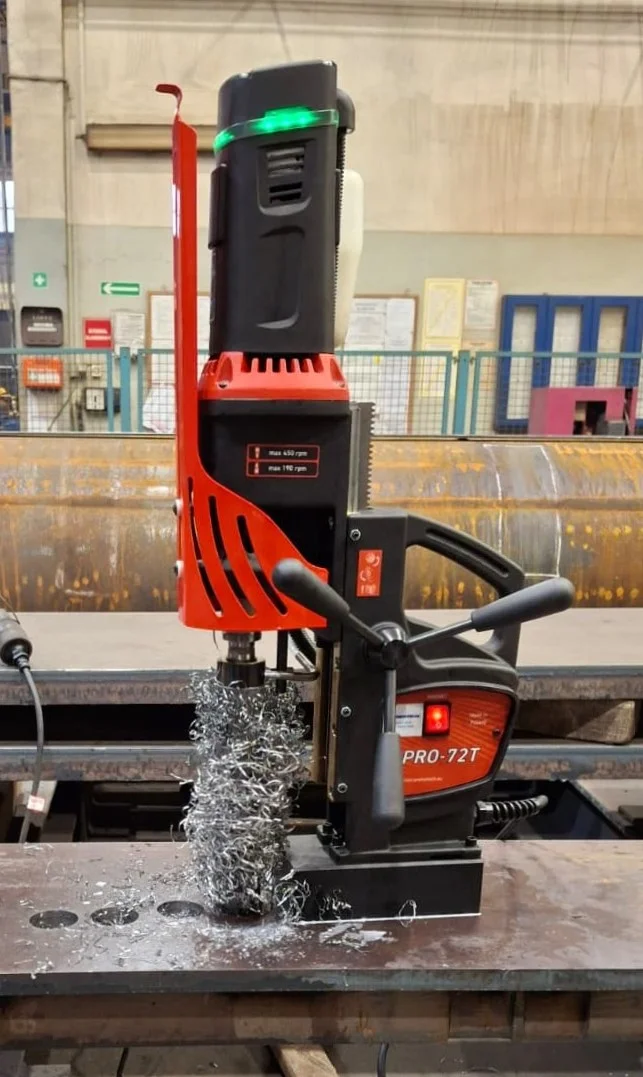

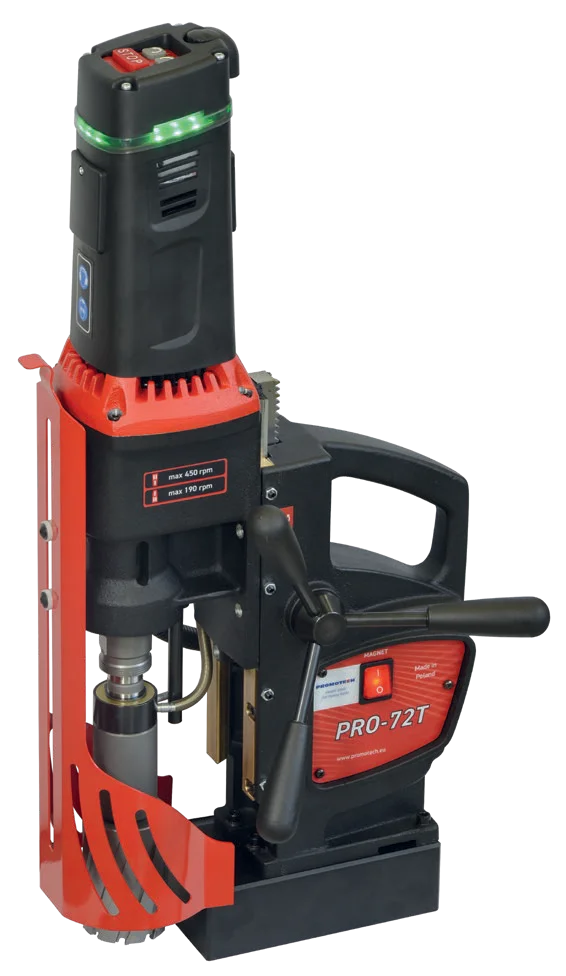

PRO-72T Versatile Drilling & Tapping Machine

Features and Advantages

Integral forward/reverse operation – the ability to tap pre-drilled holes up to M20
360-degree visual monitoring system indicates the current condition of the drill and gives safety and diagnostic information, e.g. worn brushes
Electronic Speed Stabilization System (ESSS) maintains stable speed regardless of load changes
Rigid casting designed to withstand downward drilling force, prolonging the tool’s life
Tilt sensor – to stop the motor if the machine breaks away from the surface whilst in operation
Semi-automatic gib adjustment enables simple, fast, correct, and repeatable slide backlash settings without any expert knowledge or experience
Energy Saving Base (ESB) uses only 50% of its power when the motor is not running
Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
2 years of warranty

Technical Specifications

Motor Speeds (under load)	120–190 rpm (gear I) 290–450 rpm (gear II)
Power	1600 W
Weight	18 kg (40 lbs)
Max milling capacity	70 mm (2-3/4”) *
Max drilling capacity	25 mm (1”)
Max Tap size	M20 (7/8")
Stroke	190 mm (7-1/2”)
Max depth of cut	75 mm (3”) *
Voltage	1~ 220–240 V, 50–60 Hz 1~ 110–120 V, 50–60 Hz
Overload protection	yes
Overheat protection	yes
Continouous Speed Adjustment	yes
ESSS (Electronic Speed Stabilization System)	yes
Semi-automatic gib adjustment	yes
MFSC (Magnetic Field Shape Control)	yes
ESB – Energy Saving Base	yes
Magnet detachment safeguard	yes
Magnetic clamping force (surface with the thickness of 25 mm and roughness Ra = 1.25)	1122 kgf (11 000 N)
Magnet Base Dimensions	92 mm × 180 mm × 54 mm 3-5/8" x 7" x 2-1/8"
Min. Workpiece Thickness	8 mm (5/16)
Spindle	MT3
Tool holder	19 mm (3/4”) Weldon
Product Code 220–240 V, 50–60 Hz	WRT-0686-10-20-00-0
Product Code 110–120 V, 50–60 Hz	WRT-0686-10-10-00-0

* If more than 60 mm (2-3/8″), use an MT3 arbor with 32 mm Weldon tool holder (UCW-0686-08-00-00-0).
