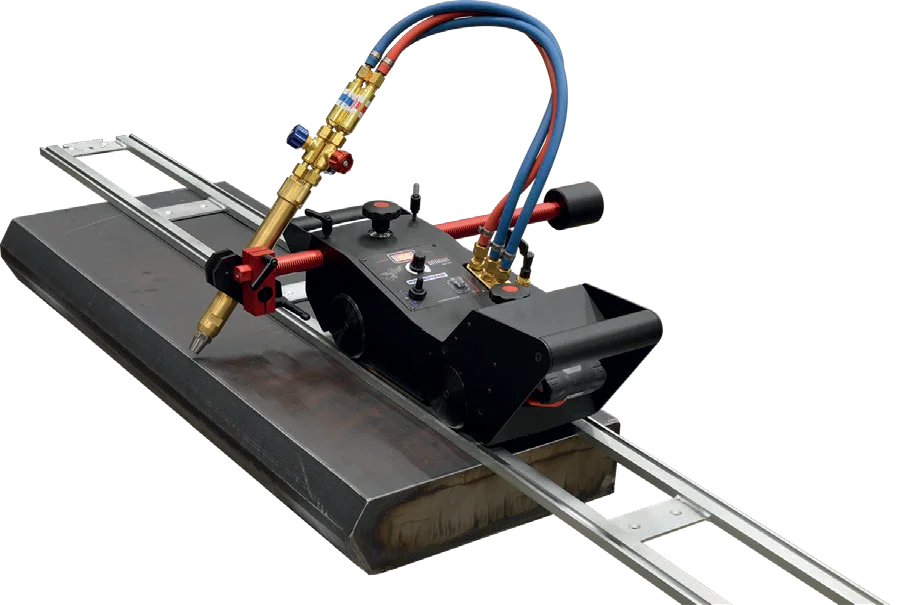

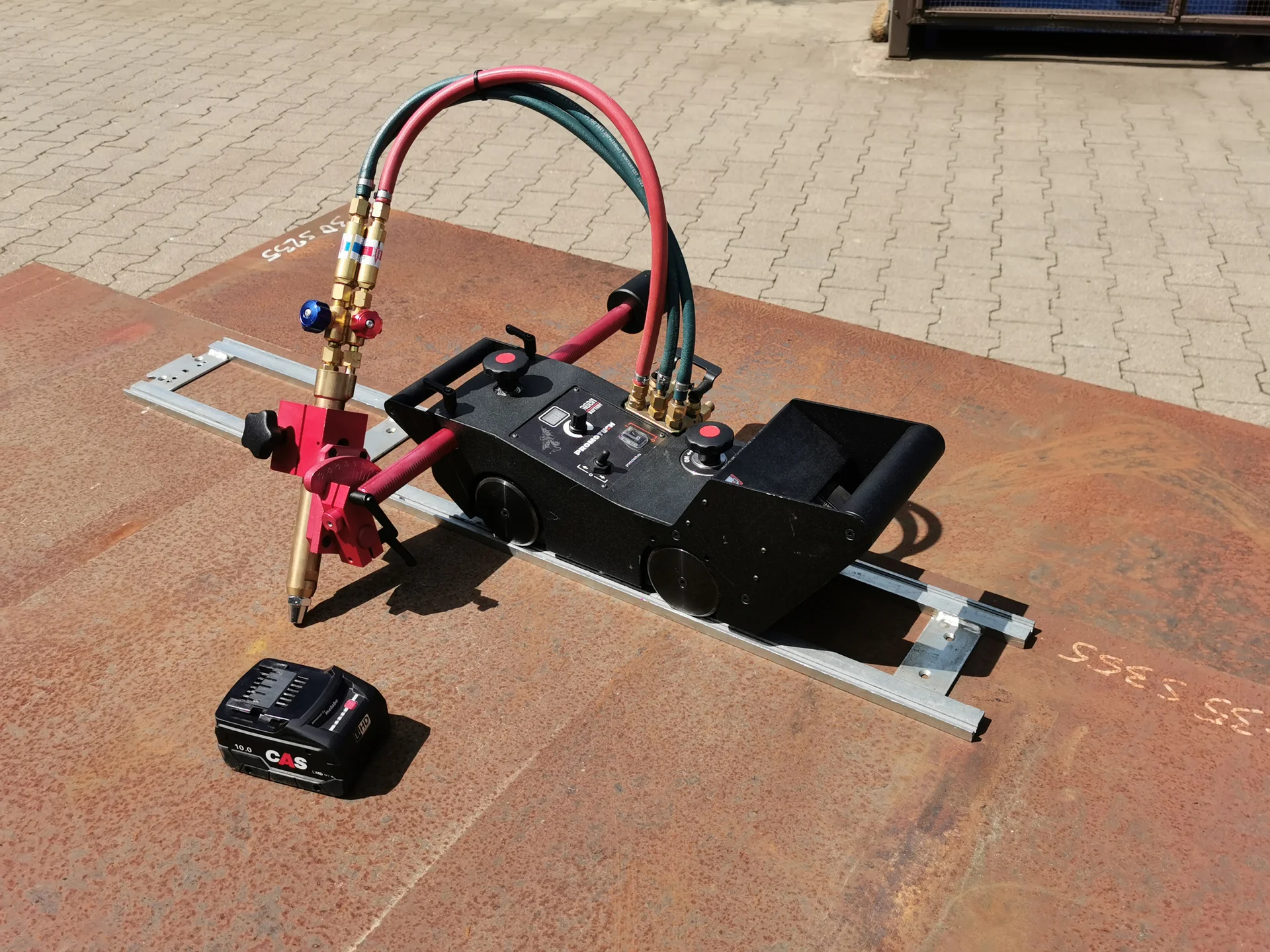

DRAGON Battery Cordless Cutting Tractor

Advantages and Features

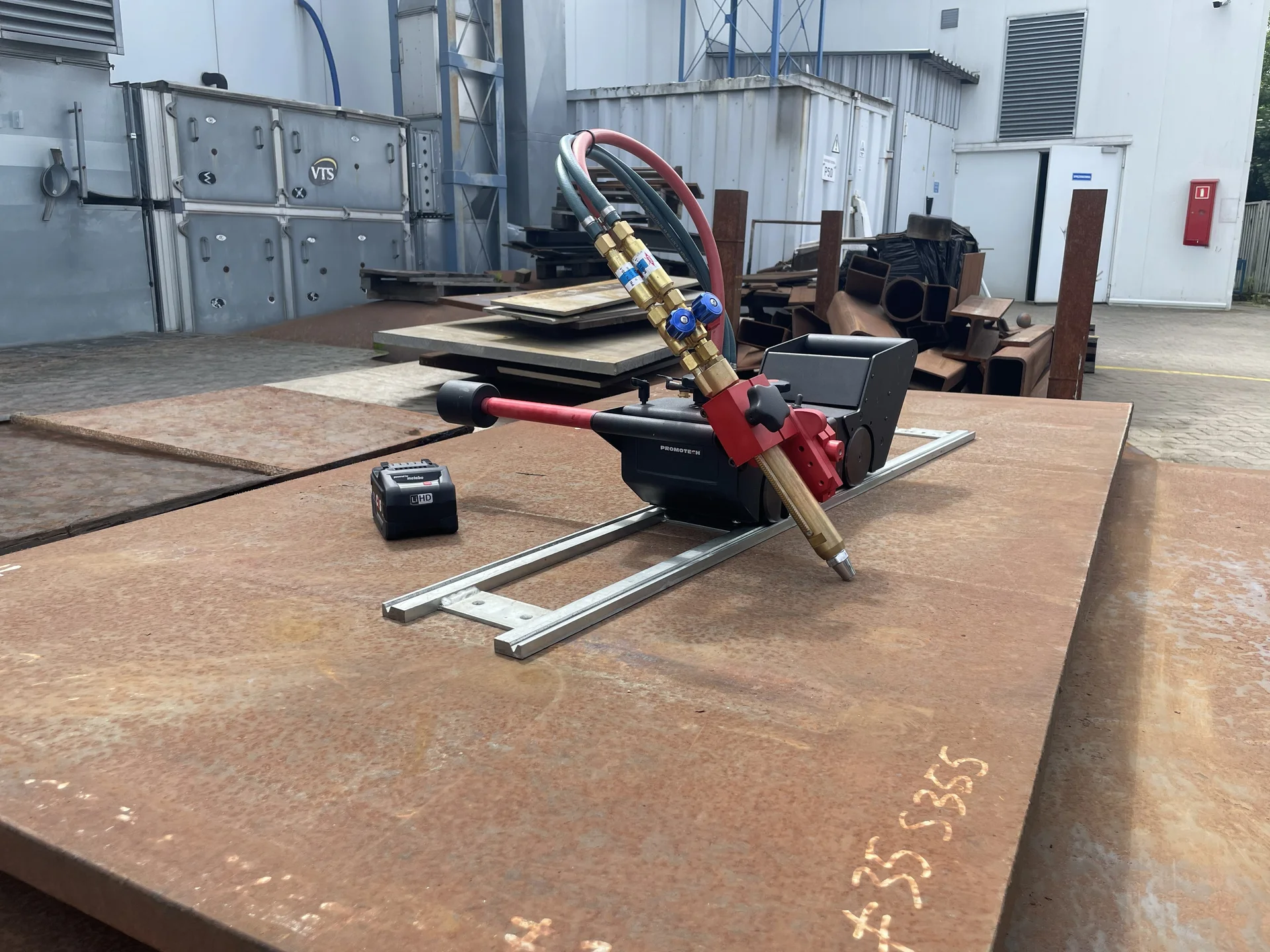

Ideal for use in the field – no need for mains power and one less cable to carry around
Conveniently powered by an 18-volt DC battery (same CAS battery as other cordless PROMOTECH machines)
The LiHD battery, supported by intelligent battery management, ensures maximum power availability for an extended period
Digital speed control and stabilization for high-quality cuts

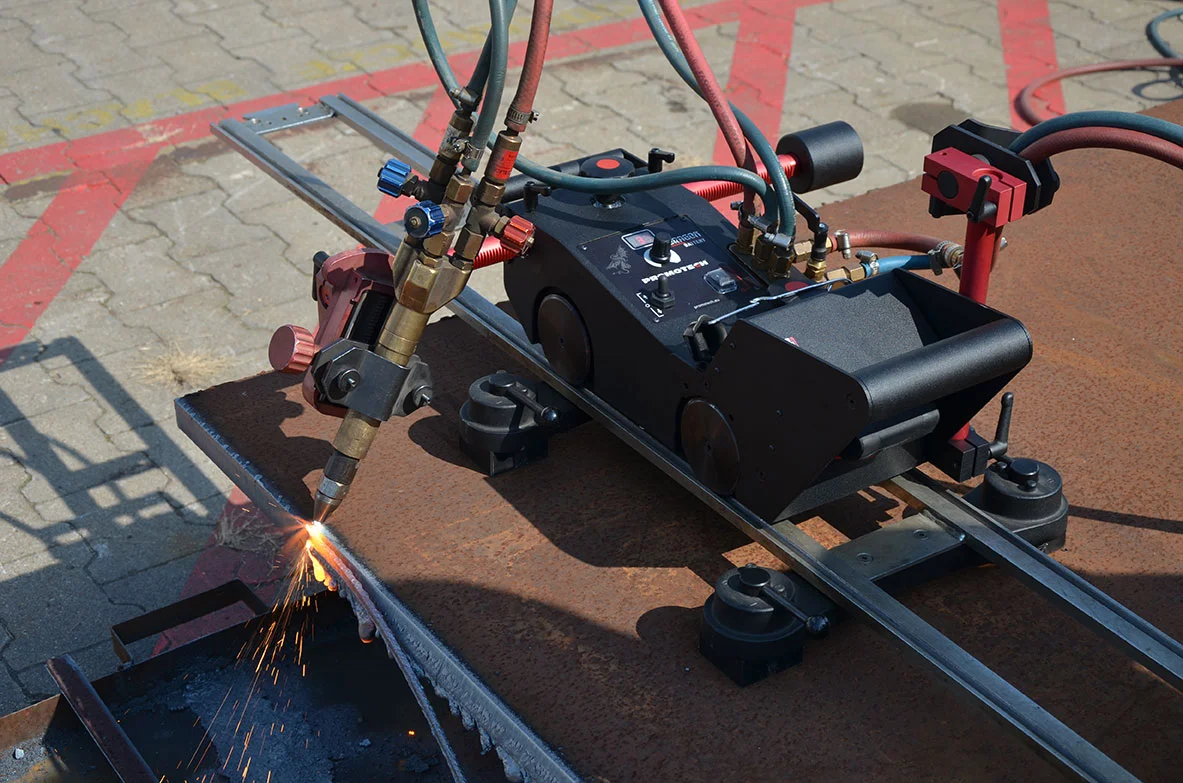

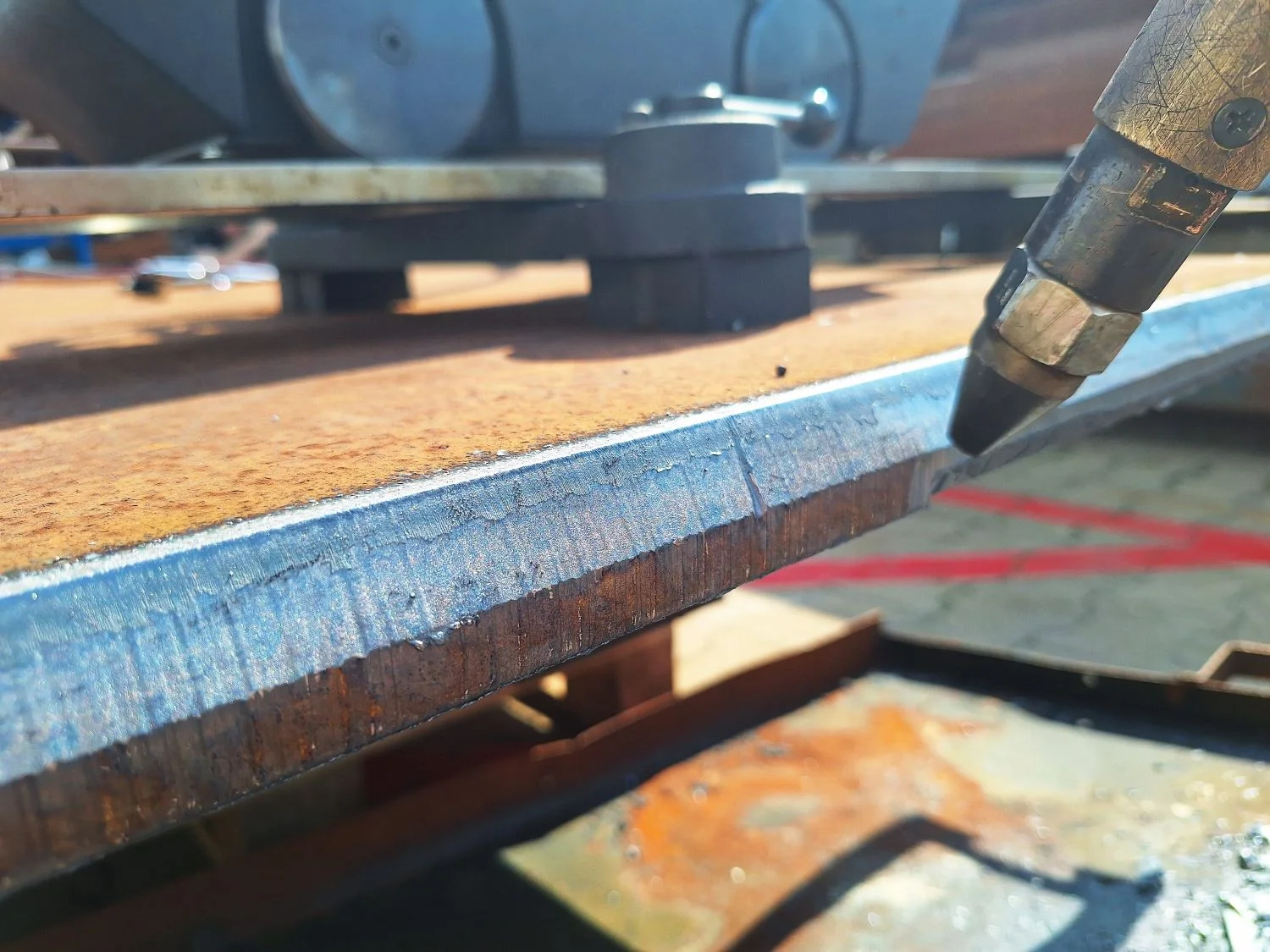

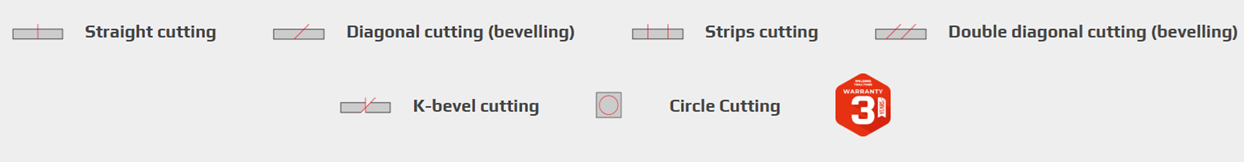

Cutting and bevelling up to 45° (also parallel, using 2 torches)

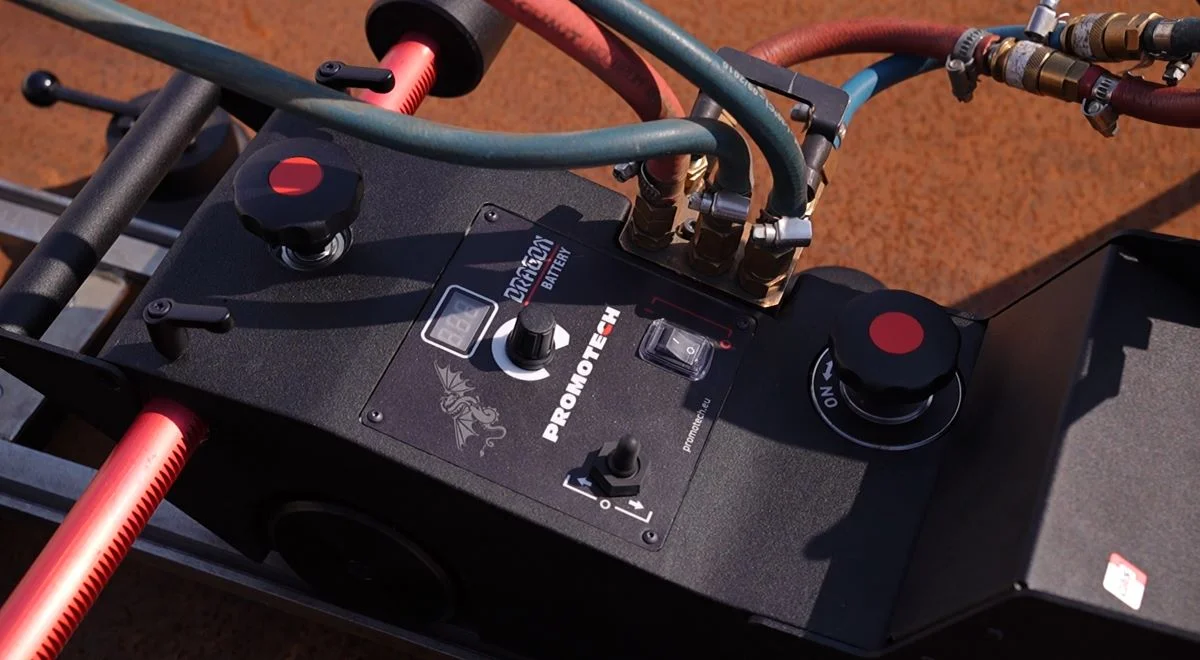

LED display with readouts of both actual and set speeds, as well as report messages

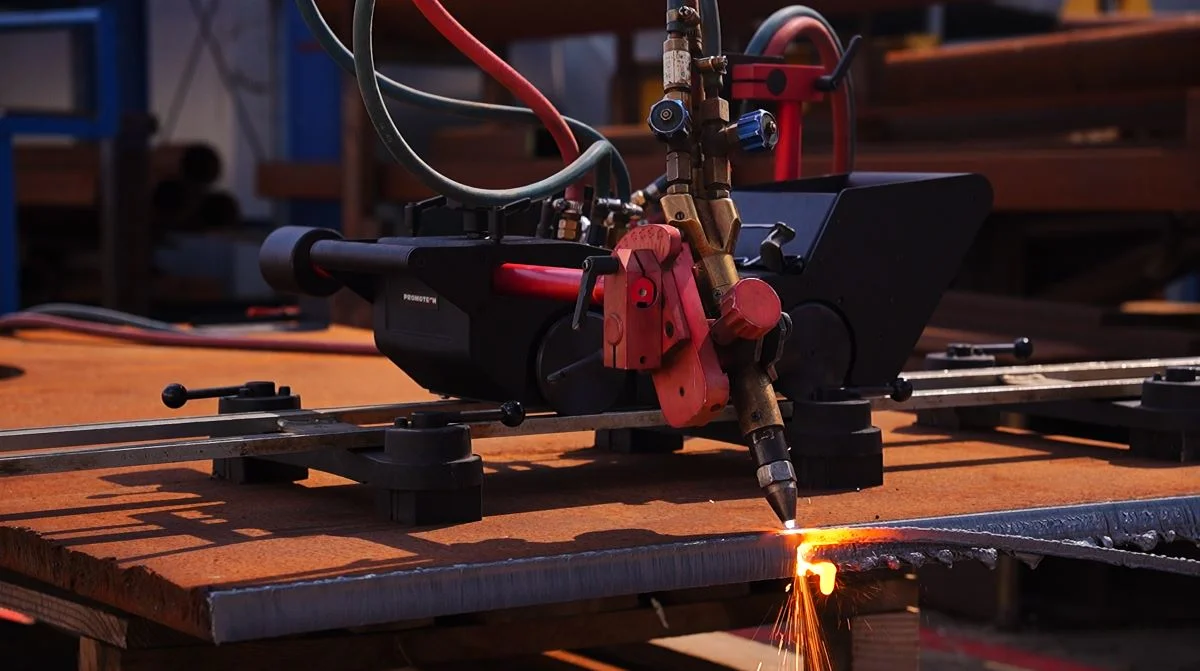

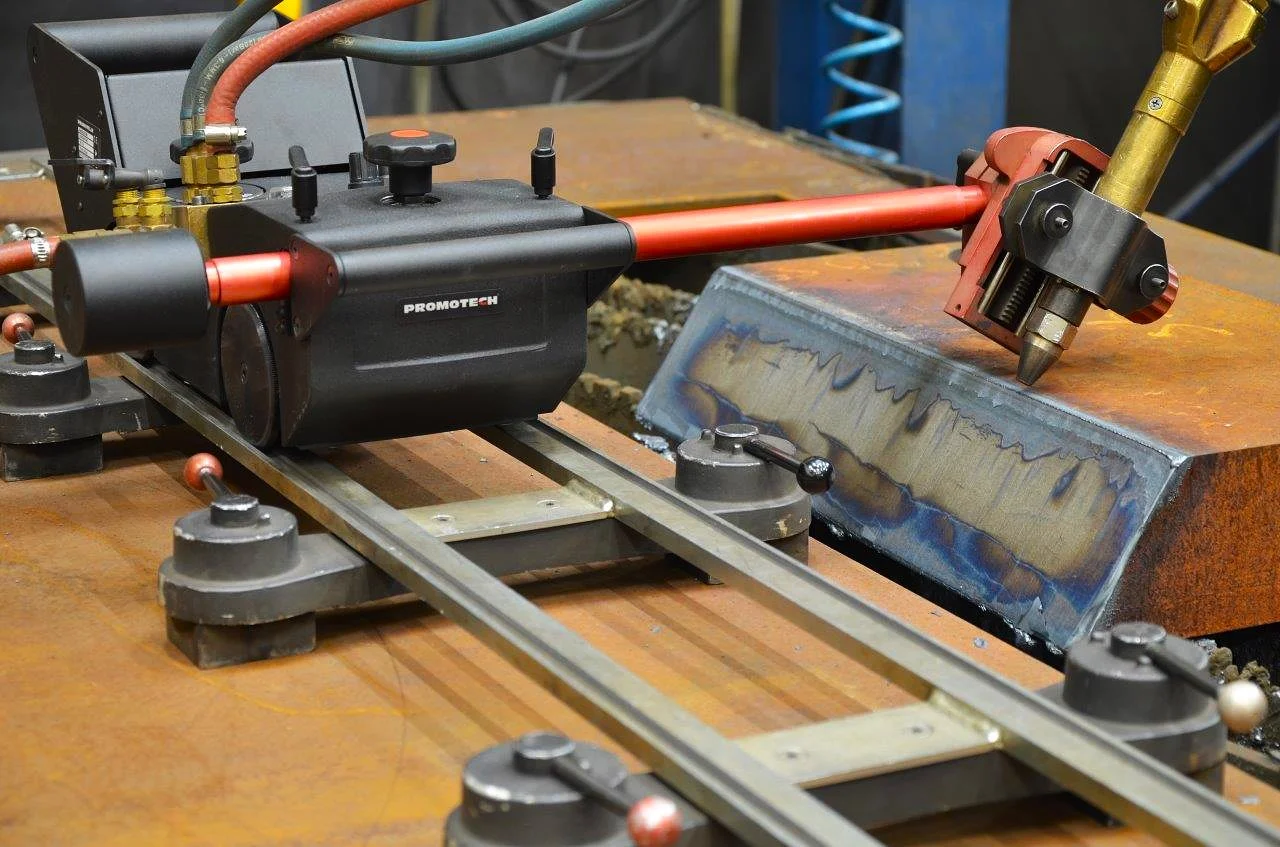

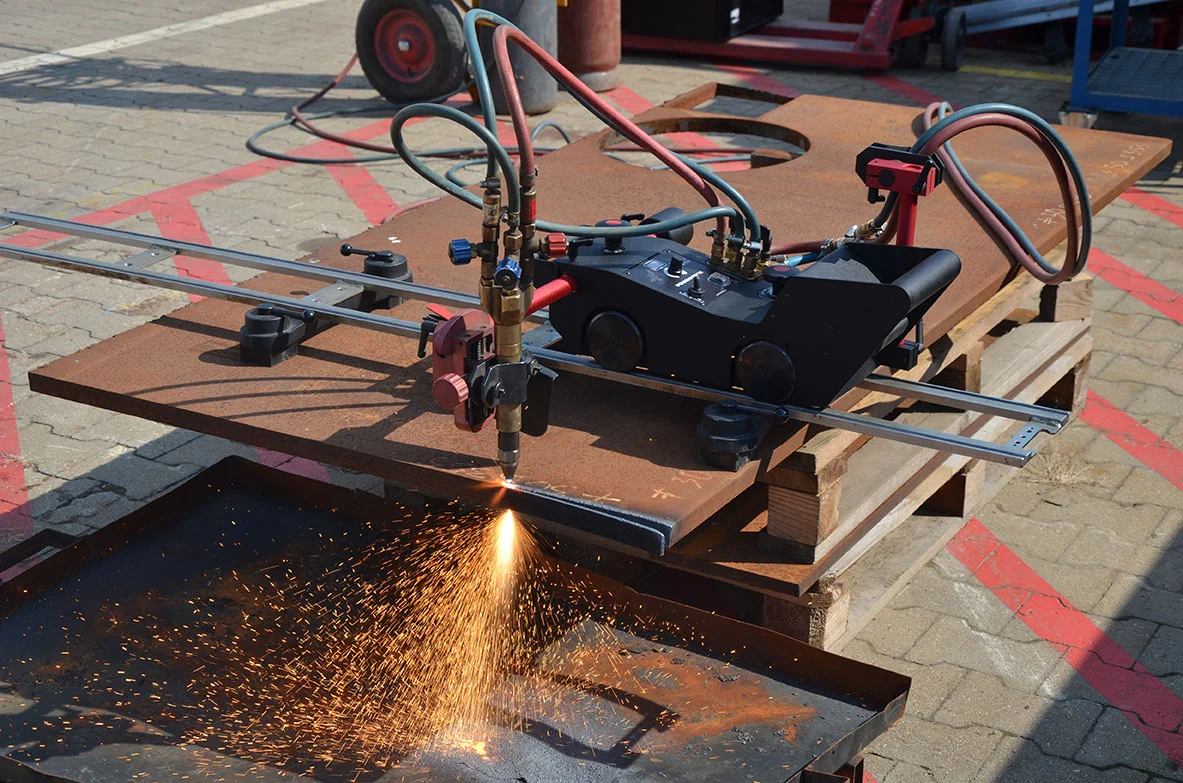

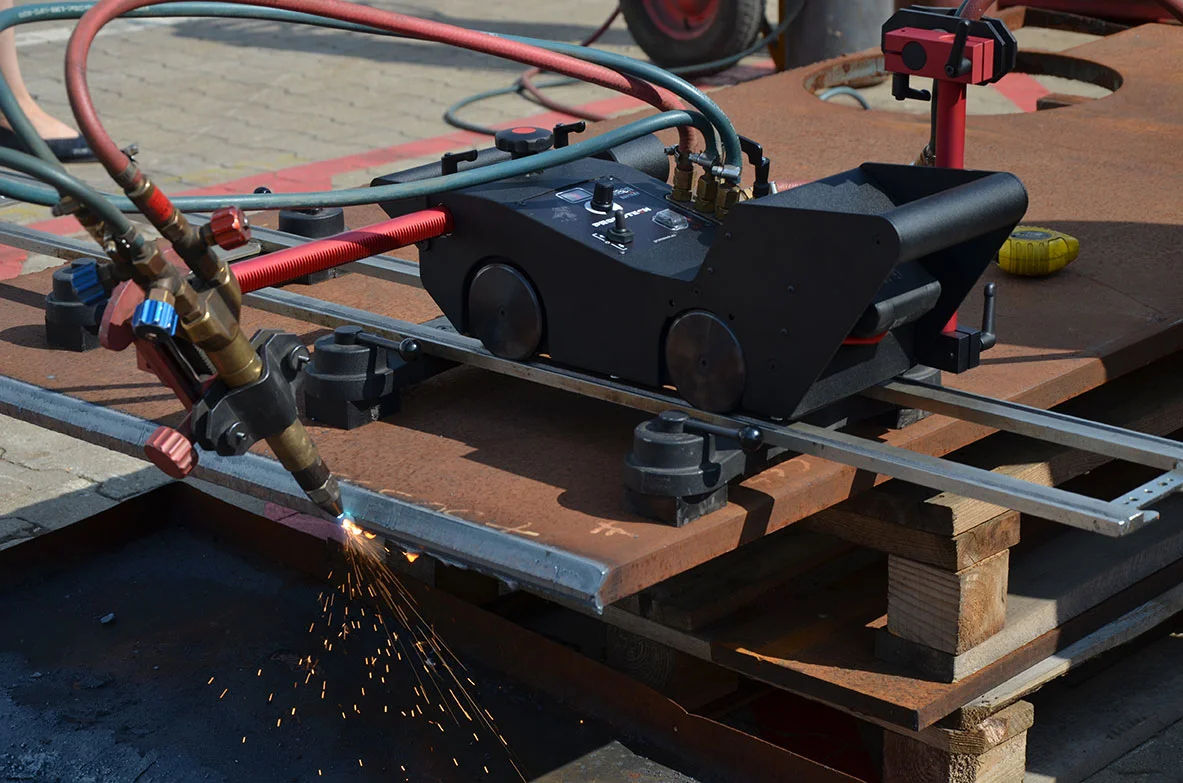

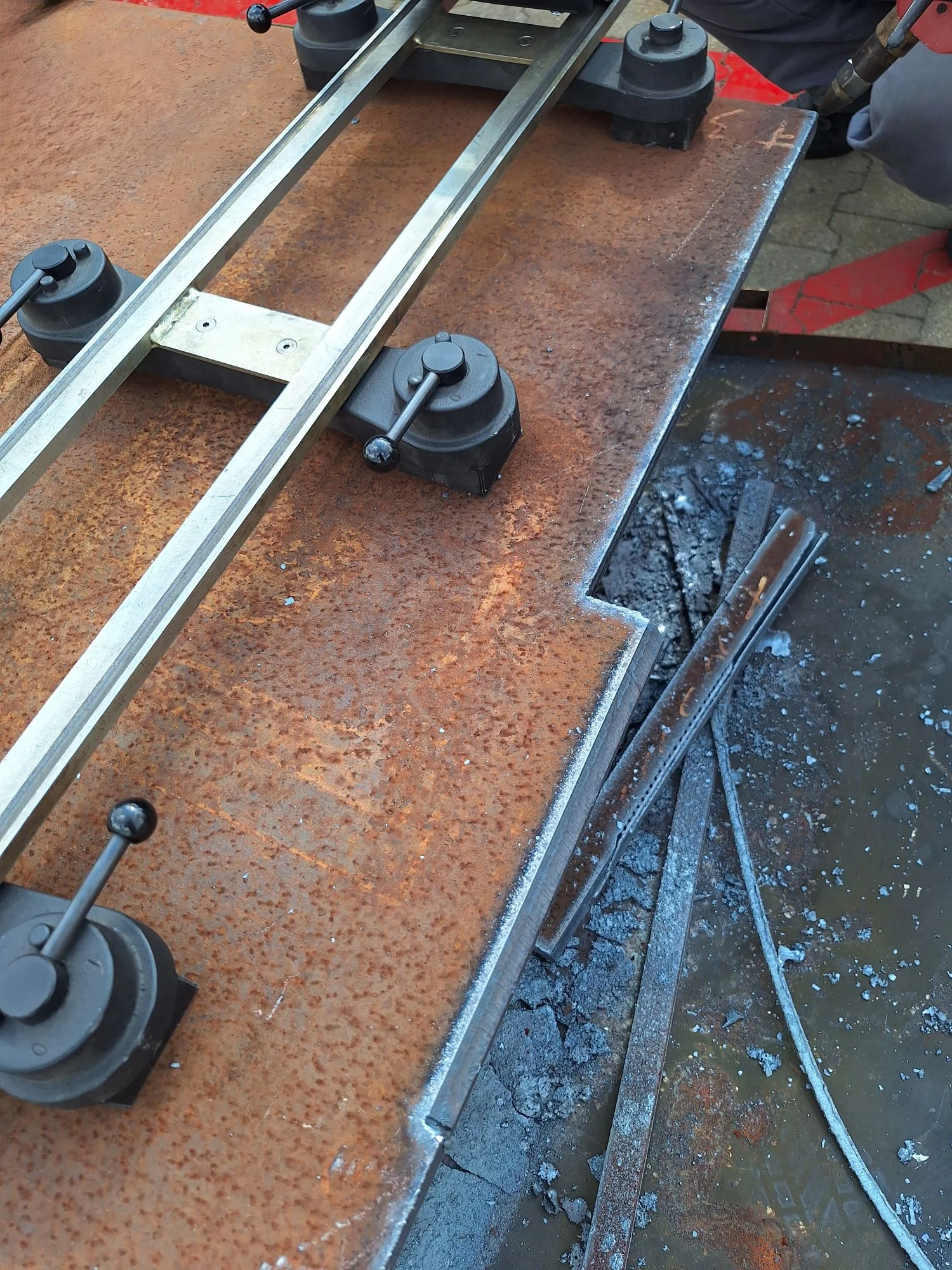

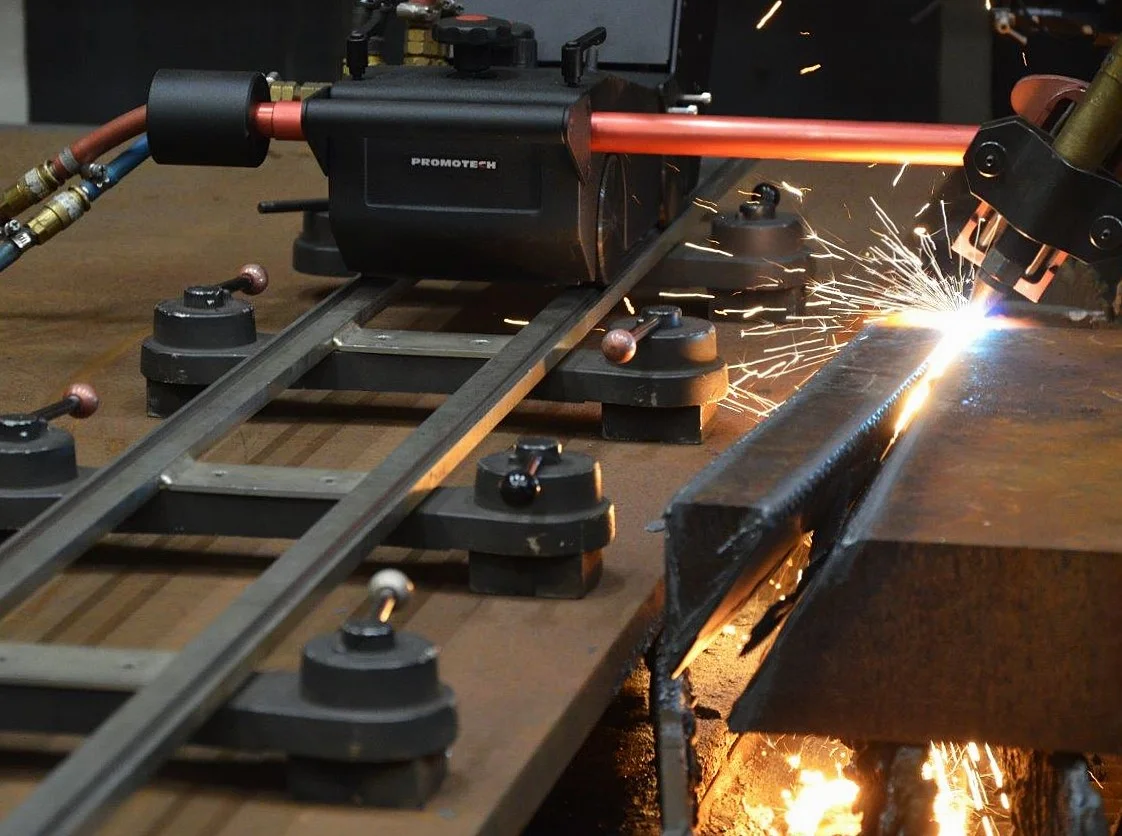

Runs on a rail or directly on a workpiece
3 years of warranty

Technical Specifications

Voltage	18 V DC, 4 Ah
Power	20 W
Work position	horizontal
Torch diameter	28–35 mm (1.10–1.38’’)
Ground clearance	8 mm (0.31’’)
Speed	0–150 cm/min (0–59 in/min)
Weight (without battery) 15.2 kg (33.5 lbs)	15.2 kg (33.5 lbs)
Protection class	IP 20
Allowed ambient temperature during operation	0–50°C (32–122°F)
Allowed ambient temperature during storage	-10–60°C (14–140°F)
Maximum allowed ambient humidity without condensation	80%
Product Code	WOZ-0788-10-00-00-0
