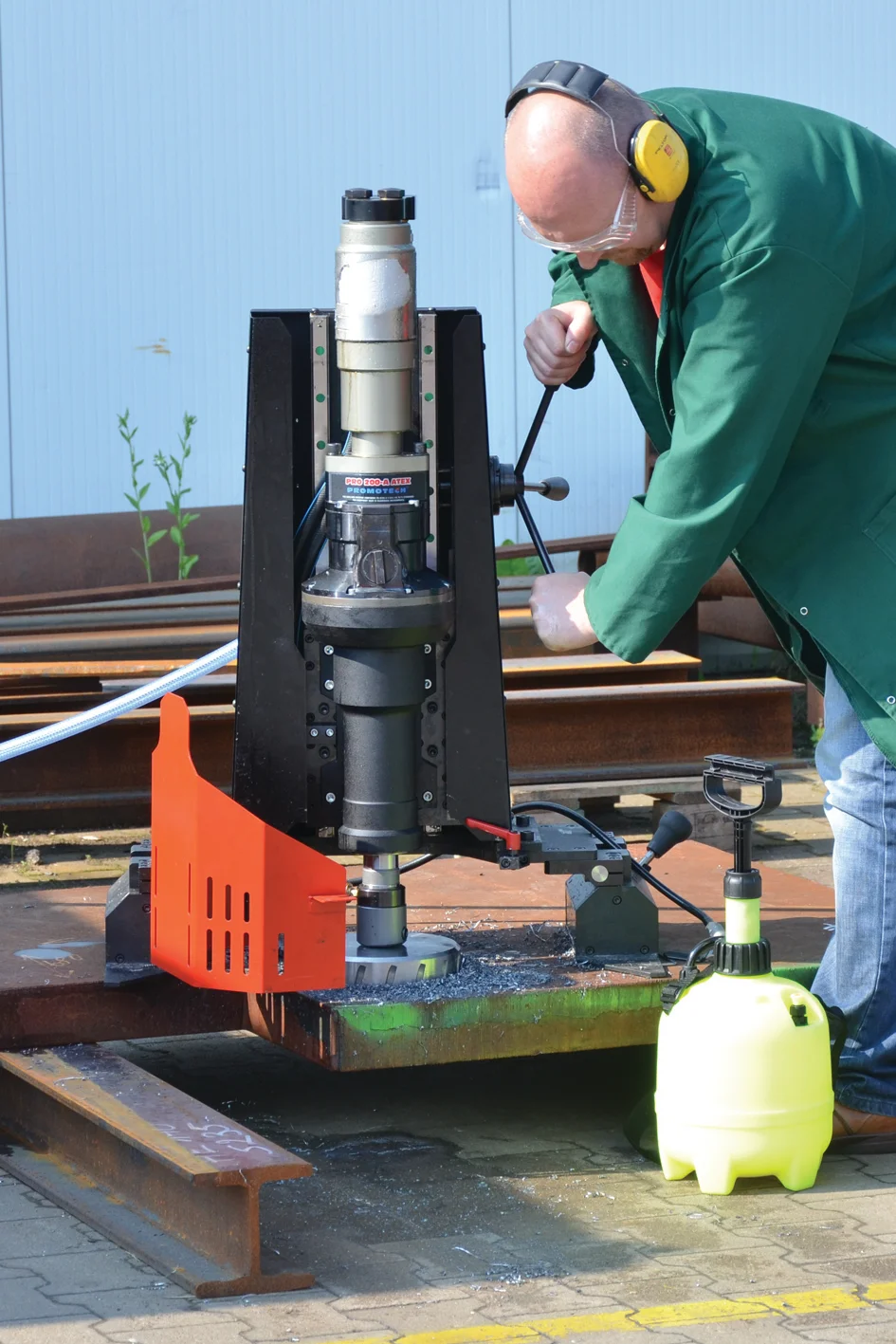

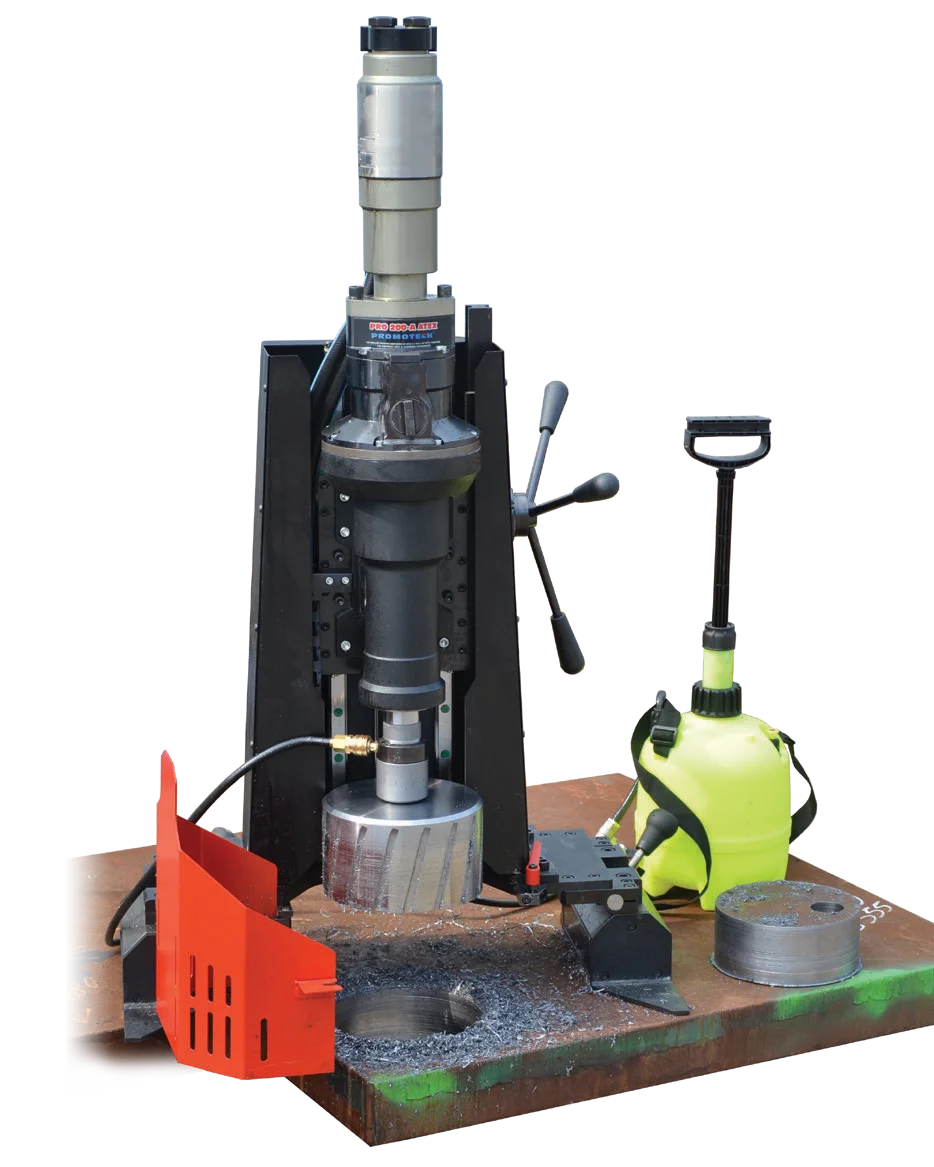

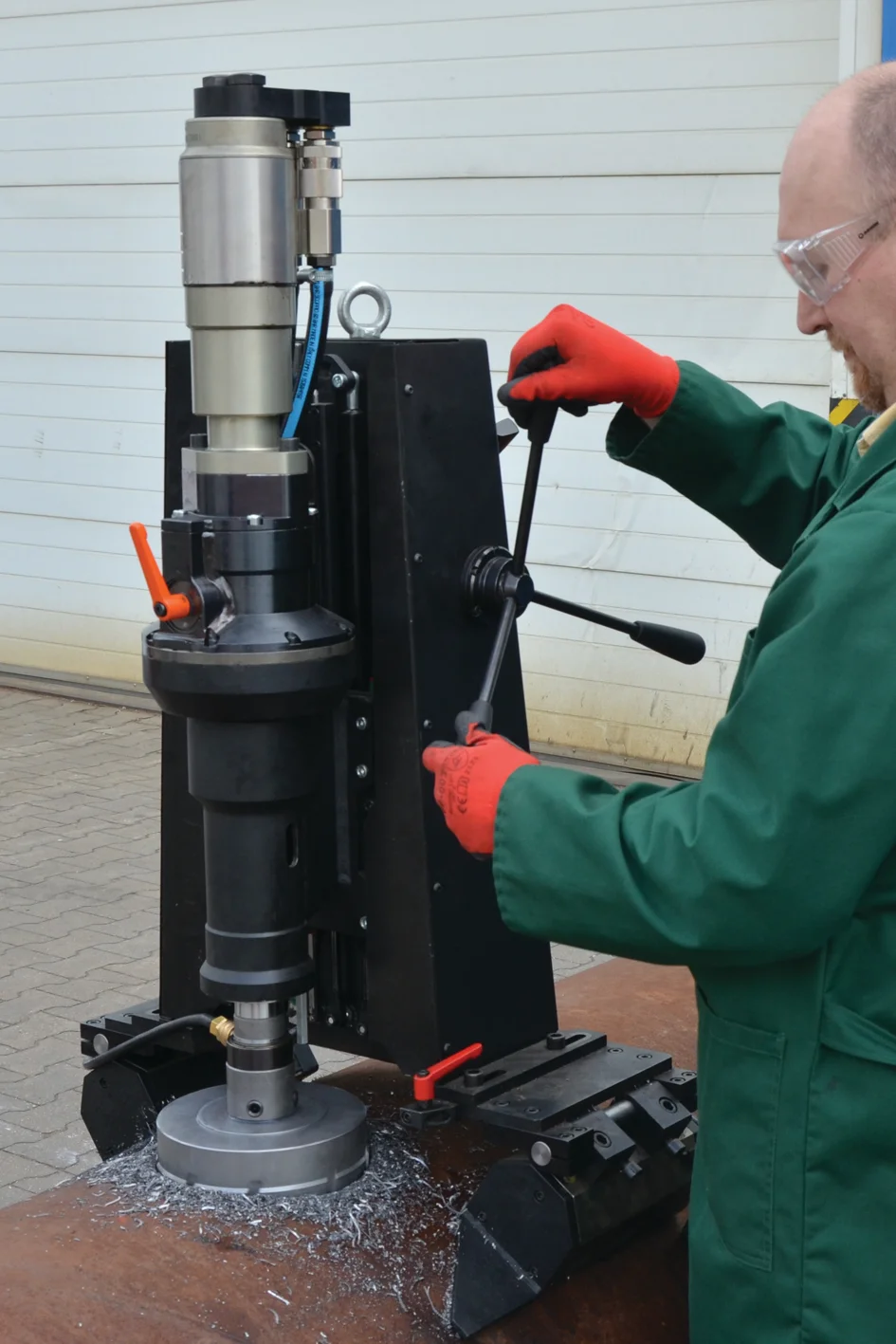

PRO-200A ATEX Pneumatic Mag Drill

Features and Advantages

Conforms to Ex c IIC T6/T4 Gb and Ex c IIIB T6/T4 Dd requirements for equipment used in hazardous environments
ATEX-approved materials – safe use in Ex zones and where hazardous, flammable or combustible vapors, liquids, dusts or residues may be present

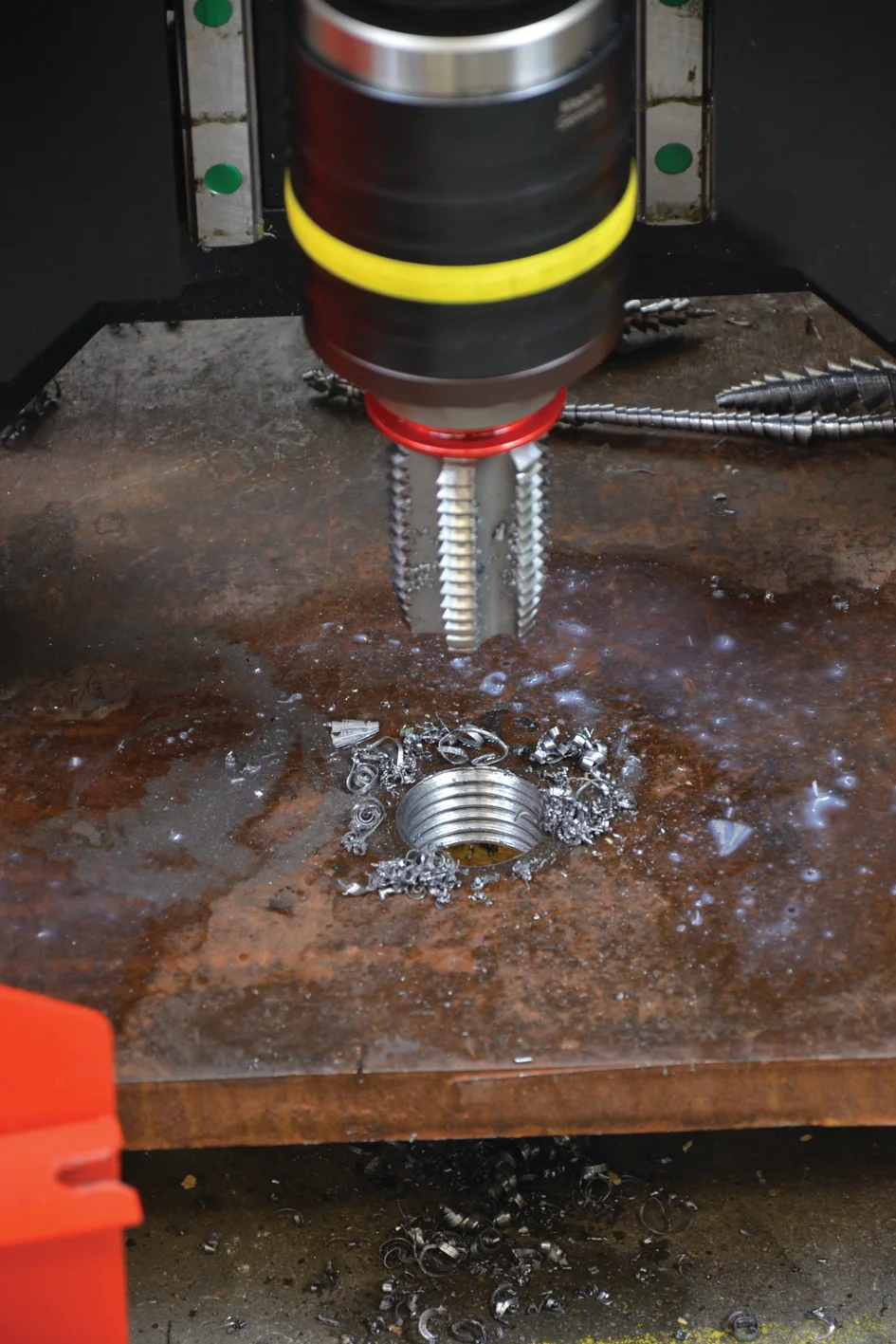

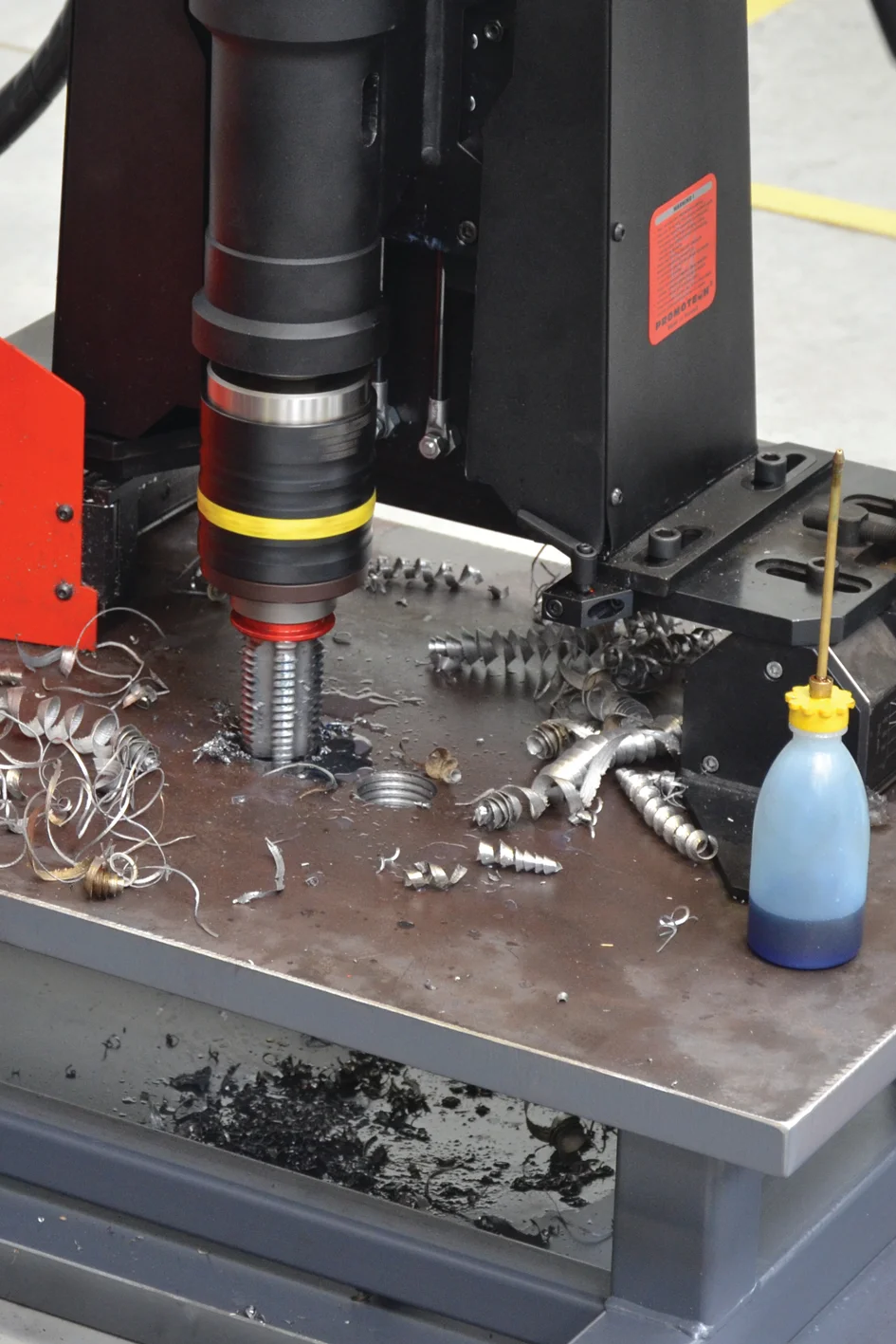

Integral forward/reverse operation – the ability to tap pre-drilled holes up to M48

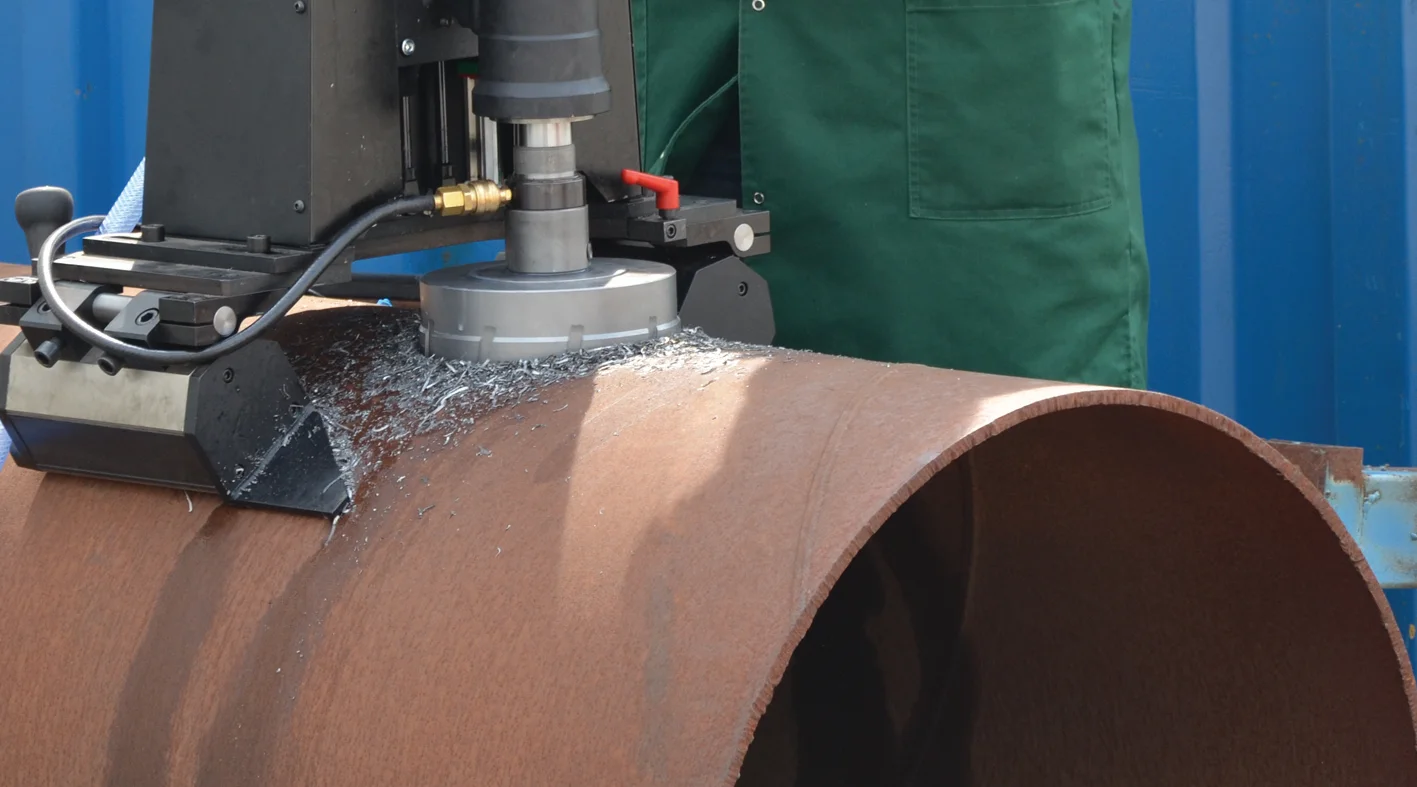

A base with strong permanent magnets keeps the machine fixed with no need for an electric supply and can be adapted to a workpiece curvature
Protection against accidental motor activation
Cross-slide system for precise hole center locations
2 years of warranty

Technical Specifications

Motor Speeds (under load)	20 rpm (gear I) 80 rpm (gear II)
Motor Power	3650 W
Air consumption	3500 l/min (125 CFM)
Pressure	6.5 bar
Air connection	G1/2’’ external thread
Spindle	MT5
Tool holder	31.75 mm Weldon (1-1/4’’)

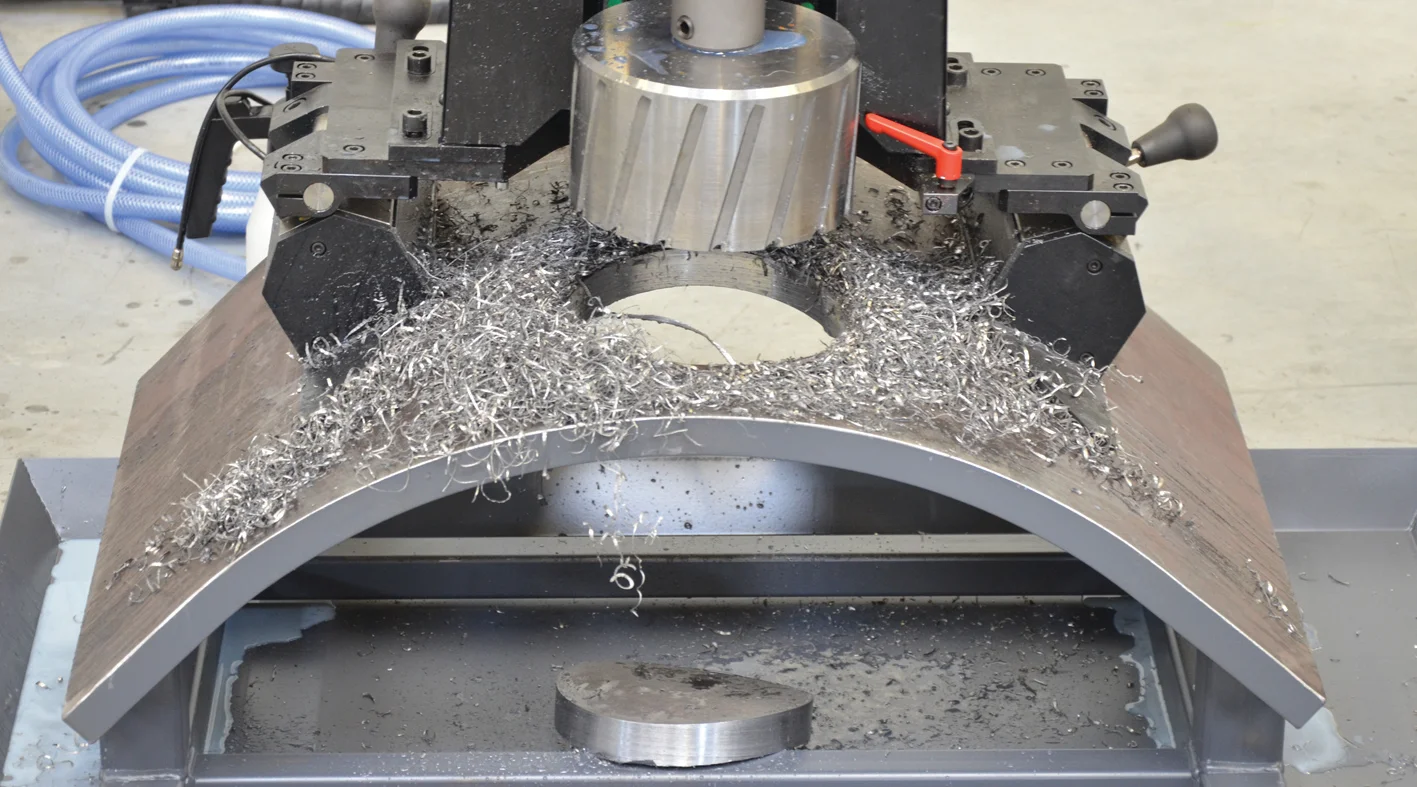

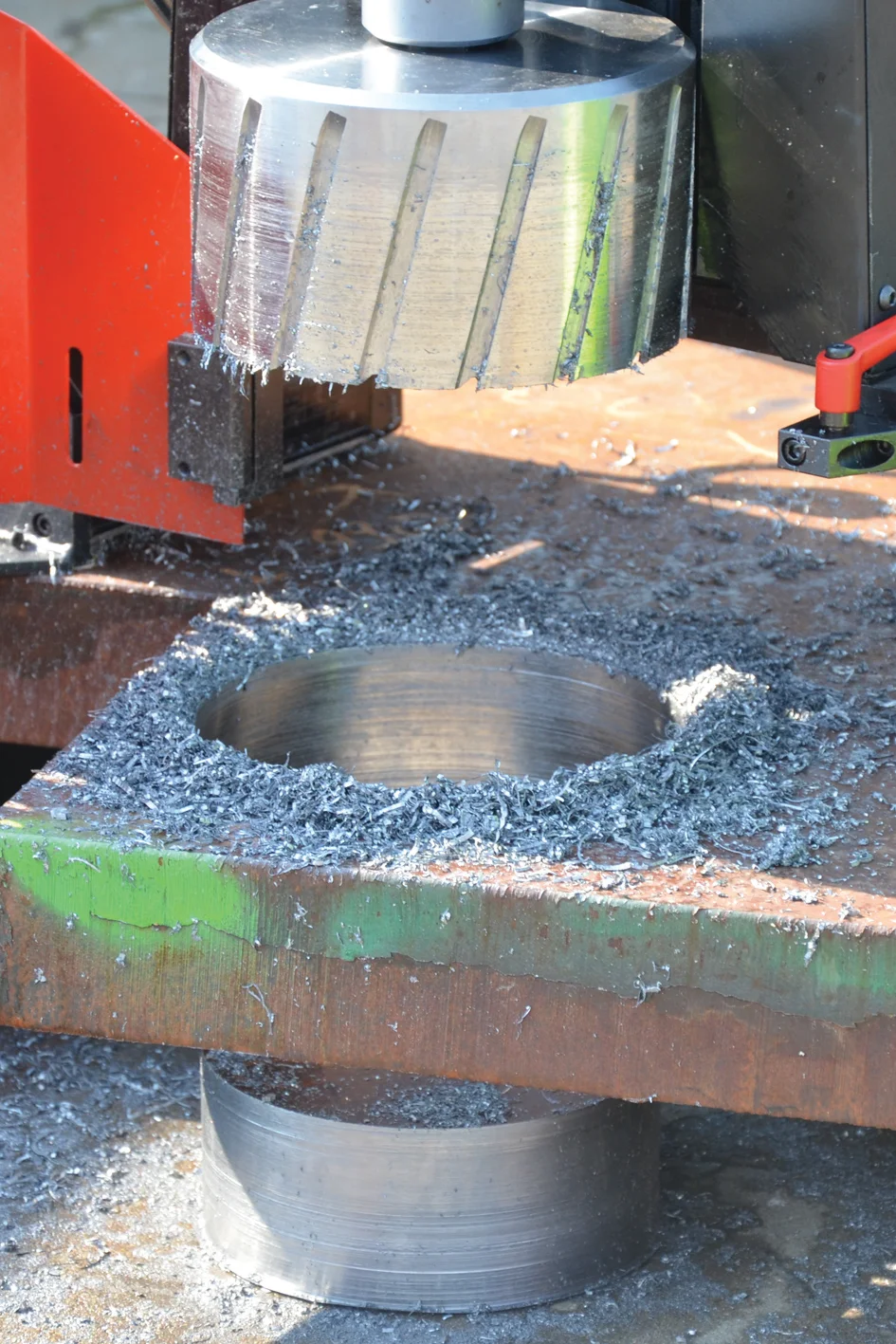

Max milling capacity	200 mm (7-7/8’’)

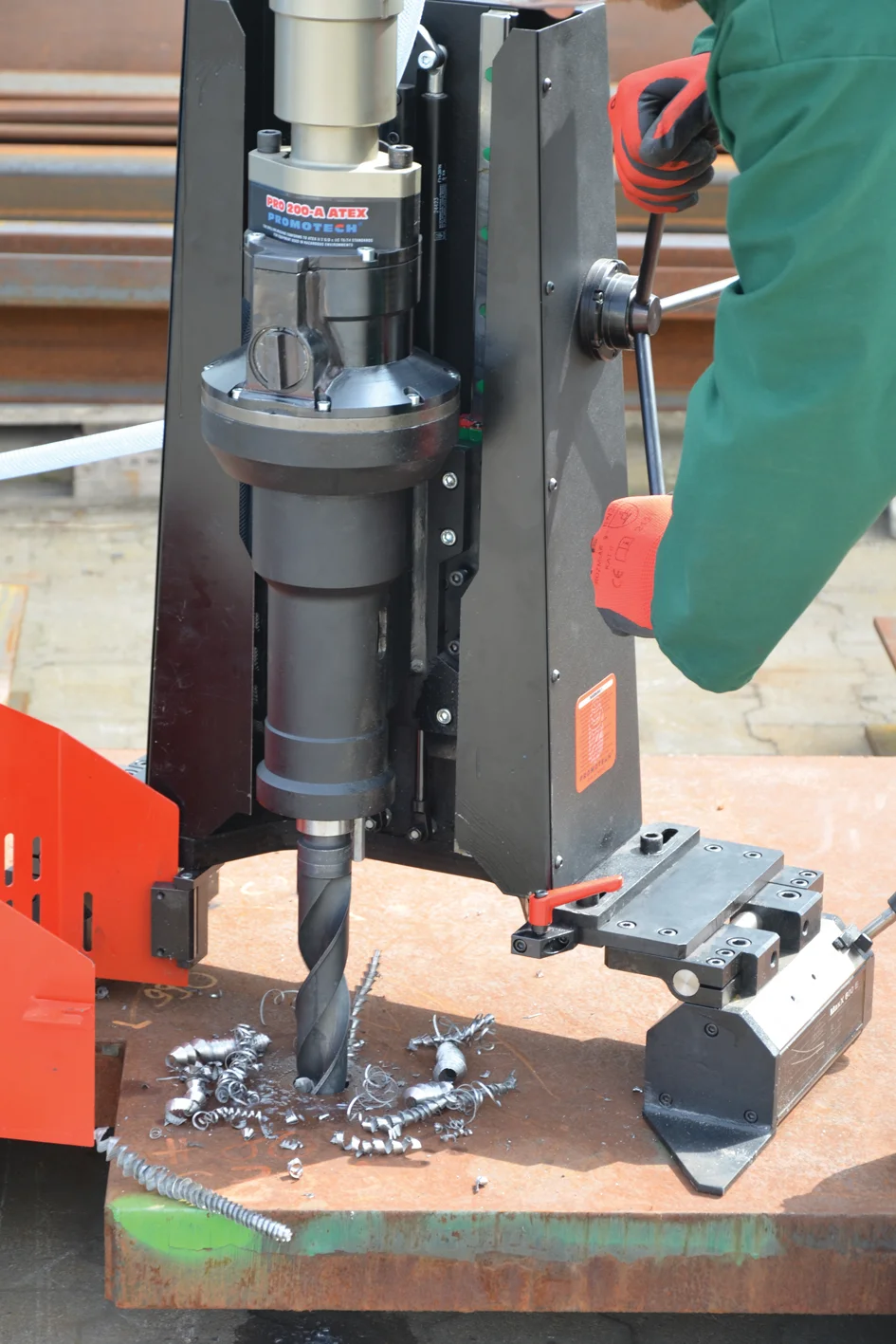

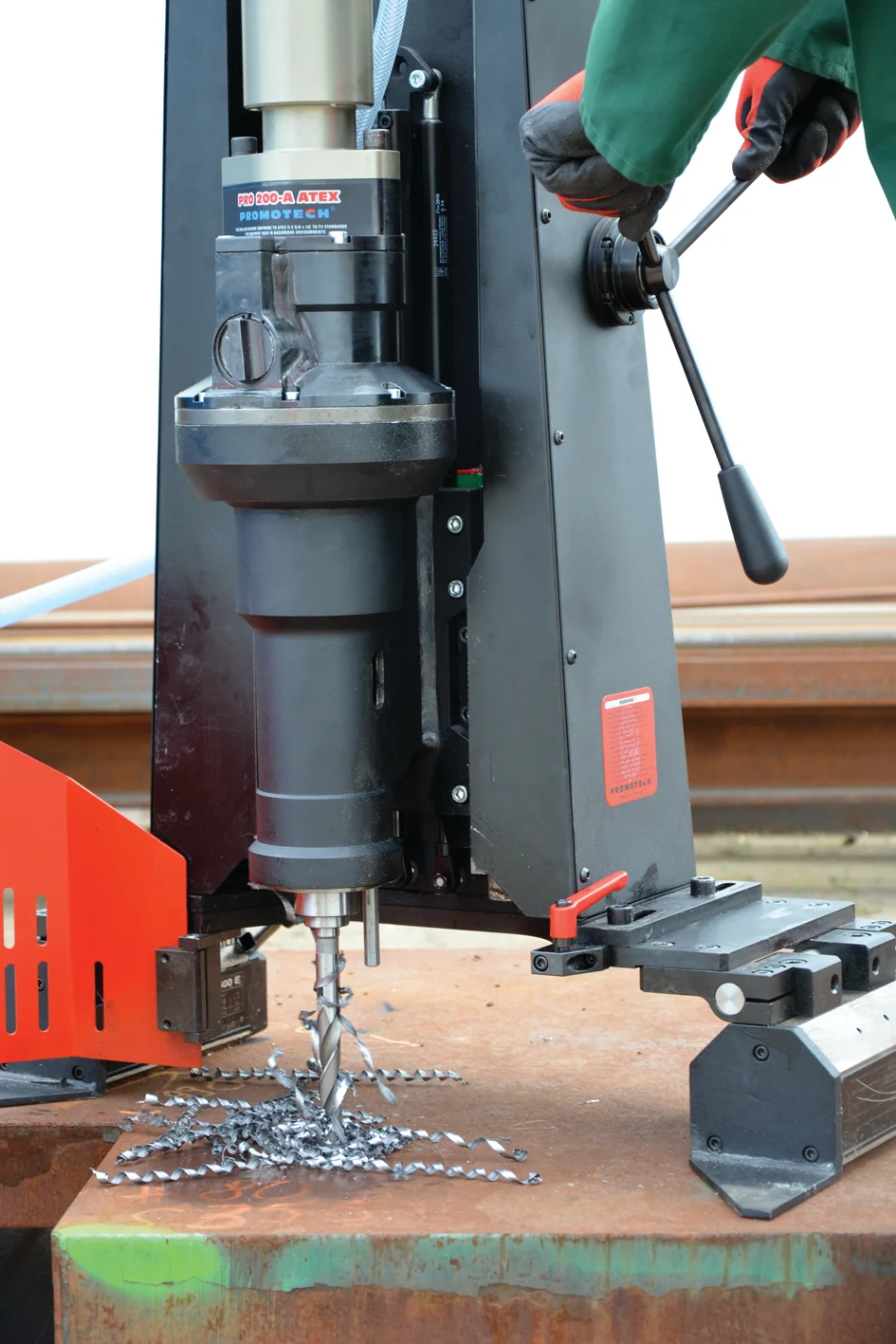

Max drilling capacity	45 mm (1-3/4’’)
Max Tap size	M48
Stroke	400 mm (15-3/4’’)
Max depth of cut	100 mm (4’’)
Magnetic clamping force	2 x 15.000 N
Min. workpiece thickness	13 mm (1/2’’)
Required ambient temperature	0–40°C (32–104°F)
Weight	130 kg (290 Ibs.)
Product Code	WRT-0490-10-00-01-1
