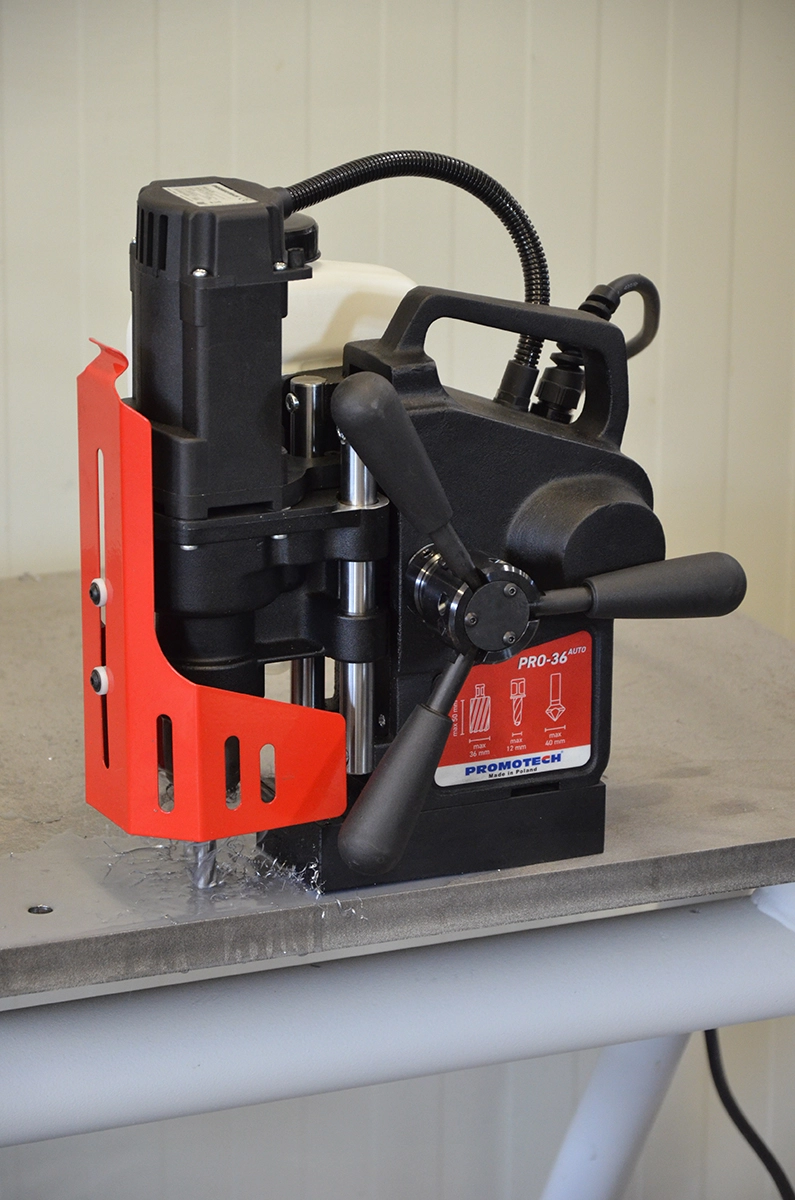

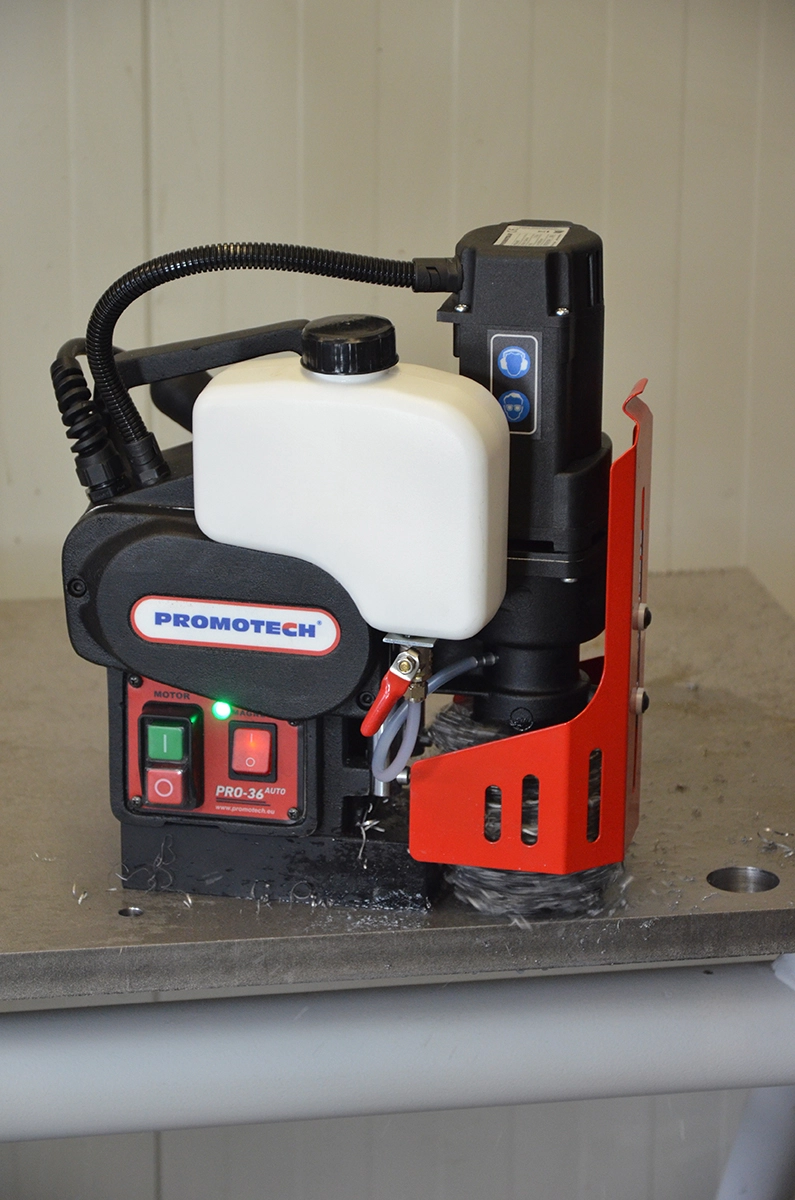

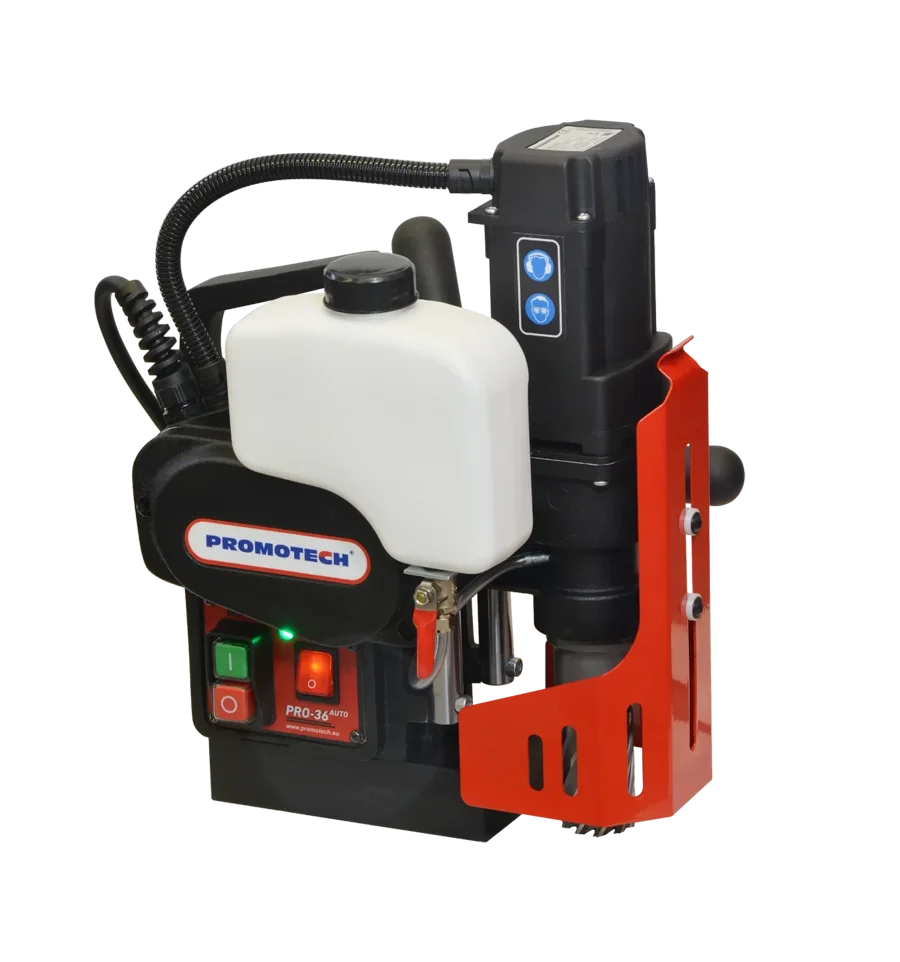

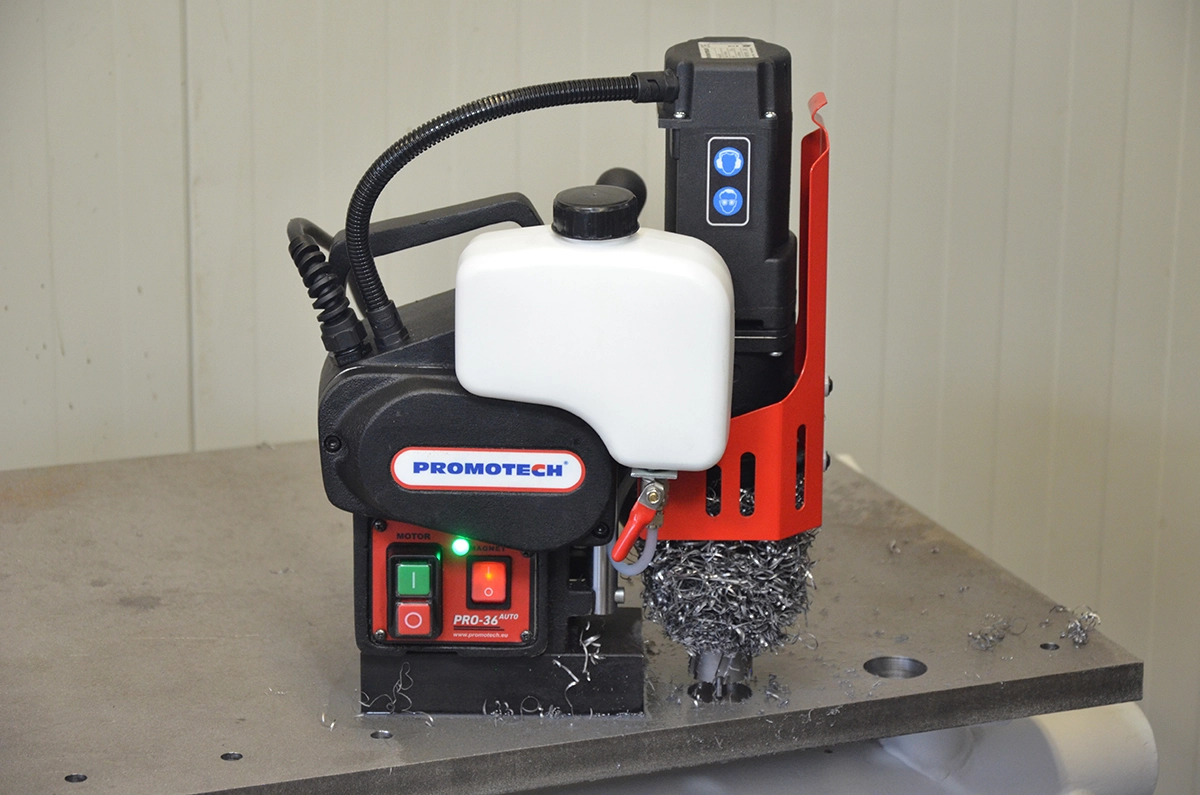

PRO-36 Auto Auto Feed Mag Drill

Features and Advantages

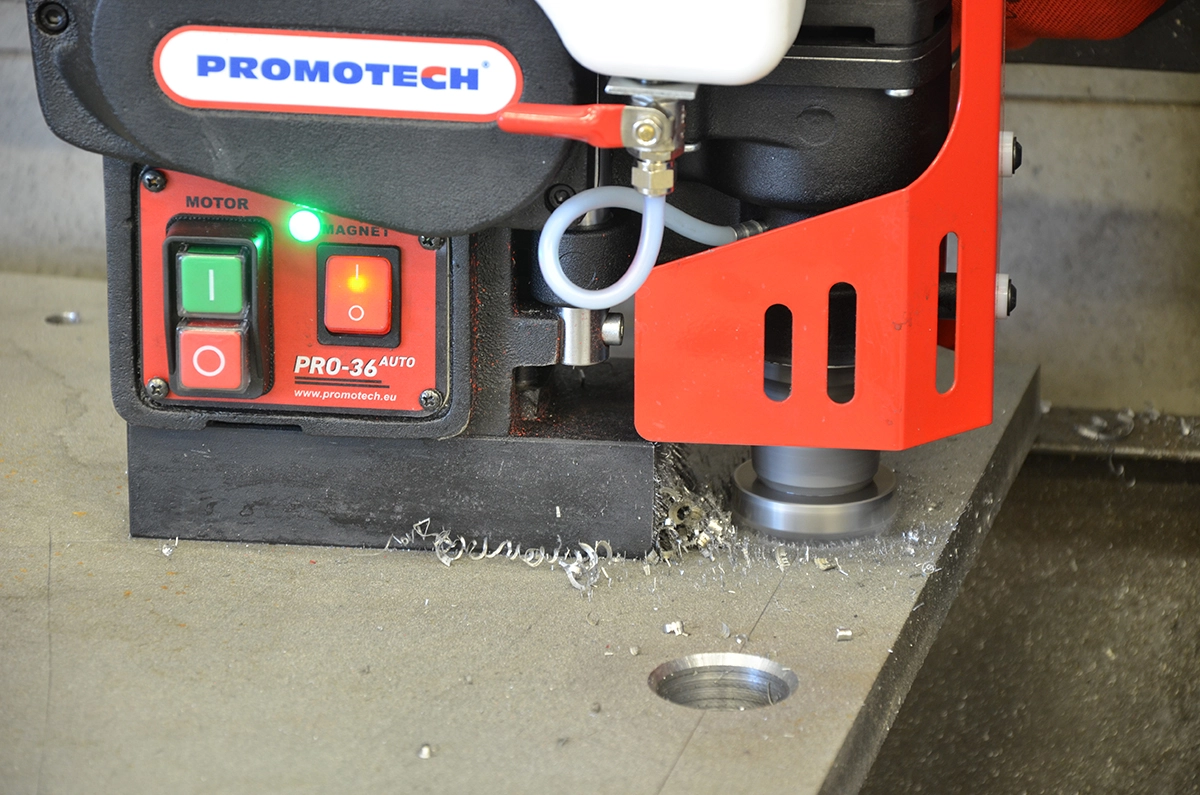

LED Monitoring System flashes green when inadequate adhesion is detected due to e.g. gap or thin workpiece
Auto-feed control stops the machine when the cutter goes through
Dual bars guide system ensures extraordinary stiffness and adjustment-free operation
Overload protection prevents misuse of the machine
Tilt sensor – to stop the motor if the machine breaks away from the surface whilst in operation
Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
Increased productivity – one operator can control several machines at one time
2 years of warranty

Technical Specifications

Motor Speeds	350 rpm (under load) 580 rpm (idle run)
Power	1020 W
Weight	13.5 kg (30 lbs)

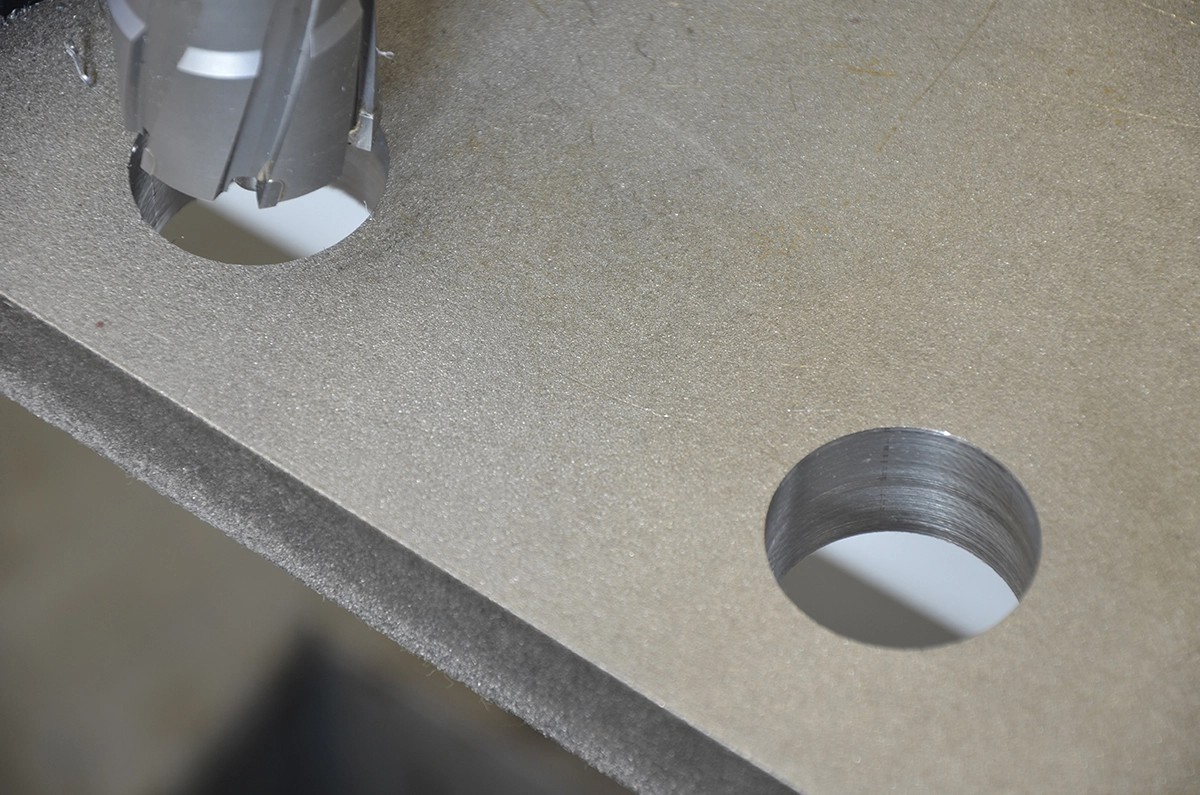

Max milling capacity	36 mm (1-7/16”)

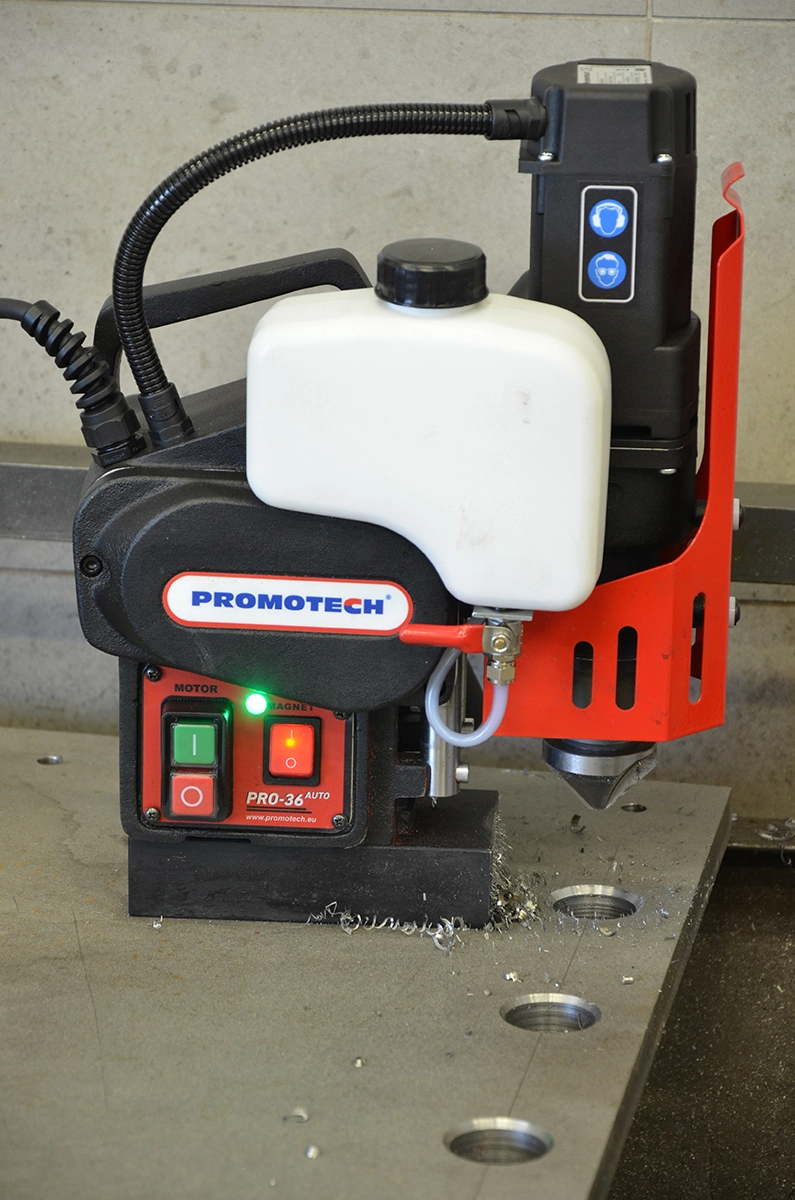

Max countersinking	40 mm (1-9/16”)
Stroke	70 mm (2-3/4")
Max depth of cut	51 mm (2”)
Voltage	1~ 220–240 V, 50–60 Hz 1~ 110–120 V, 50–60 Hz
Magnetic clamping force (surface with the thickness of 25 mm and roughness Ra = 1.25)	917 kgf (9 000 N)
Magnet Base Dimensions	80 mm × 160 mm × 38 mm 3-1/8” × 6-5/16” × 1-1/2”
Min. Workpiece Thickness	6 mm (1/4”)
Tool holder	19 mm (3/4”) Weldon
Product Code 220–240 V, 50–60 Hz	WRT-0672-10-20-00-0
Product Code 110–120 V, 50–60 Hz	WRT-0672-10-10-00-0
