Features and Advantages

• Cordless, compact, and lightweight – ideal for site work
• Dual bars guide system ensures extraordinary stiffness and adjustment-free operation
• LED Monitoring System flashes green when inadequate adhesion is detected due to e.g. gap or thin workpiece
• Overload protection prevents misuse of the machine
• Tilt sensor – to stop the motor if the machine breaks away from the surface whilst in operation
• Energy Saving Base (ESB) uses only 50% of its power when the motor is not running
• Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
• 2 years of warranty

Technical Specifications

Motor Speed (under load)	260 rpm
Power	450 W
Weight with 4.0 Ah battery	11.5 kg (25.35 lbs)

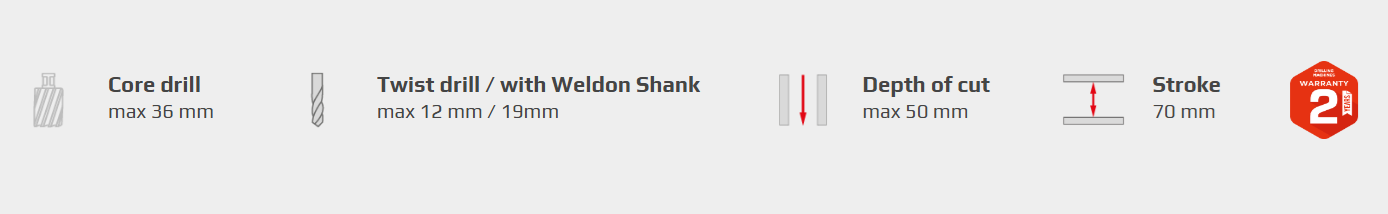

Max milling capacity	36 mm (1 7/16”)
Max drilling capacity	12 mm (0.47”)
Stroke	70 mm (2.76”)
Max depth of cut	50 mm (1.97”)
Voltage	18 V DC
MFSC (Magnetic Field Shape Control)	Yes
ESB (Energy Saving Base)	Yes
Magnetic clamping force (surface with the thickness of 25 mm and roughness Ra = 1.25)	765 kgf (7 500 N)
Magnet Base Dimensions	80 mm × 160 mm × 38 mm (3.15” × 6.3” × 1.5”)
Min. Workpiece Thickness	6 mm (0.24”)
Spindle/ Tool holder	19 mm (3/4”) Weldon
Product Code	WRT-0688-10-00-00-0

LED Monitoring System

LED interface generates signals in green and red colors to indicate current condition of the drill and give safety information. It provides quick exchange of information between the drill and the operator in the event of an emergency.

Condition Of The Drill		Strong surface. Ready to Operate. (Solid Green)
		Emergency stop. Machine tilt or vibrations. (4 Red Flashes between Green)
		Motor doesn’t turn on. Replace discharged battery. Solid Red
Safety Information		Weak surface. Low clamping force. (Flashing Green)
