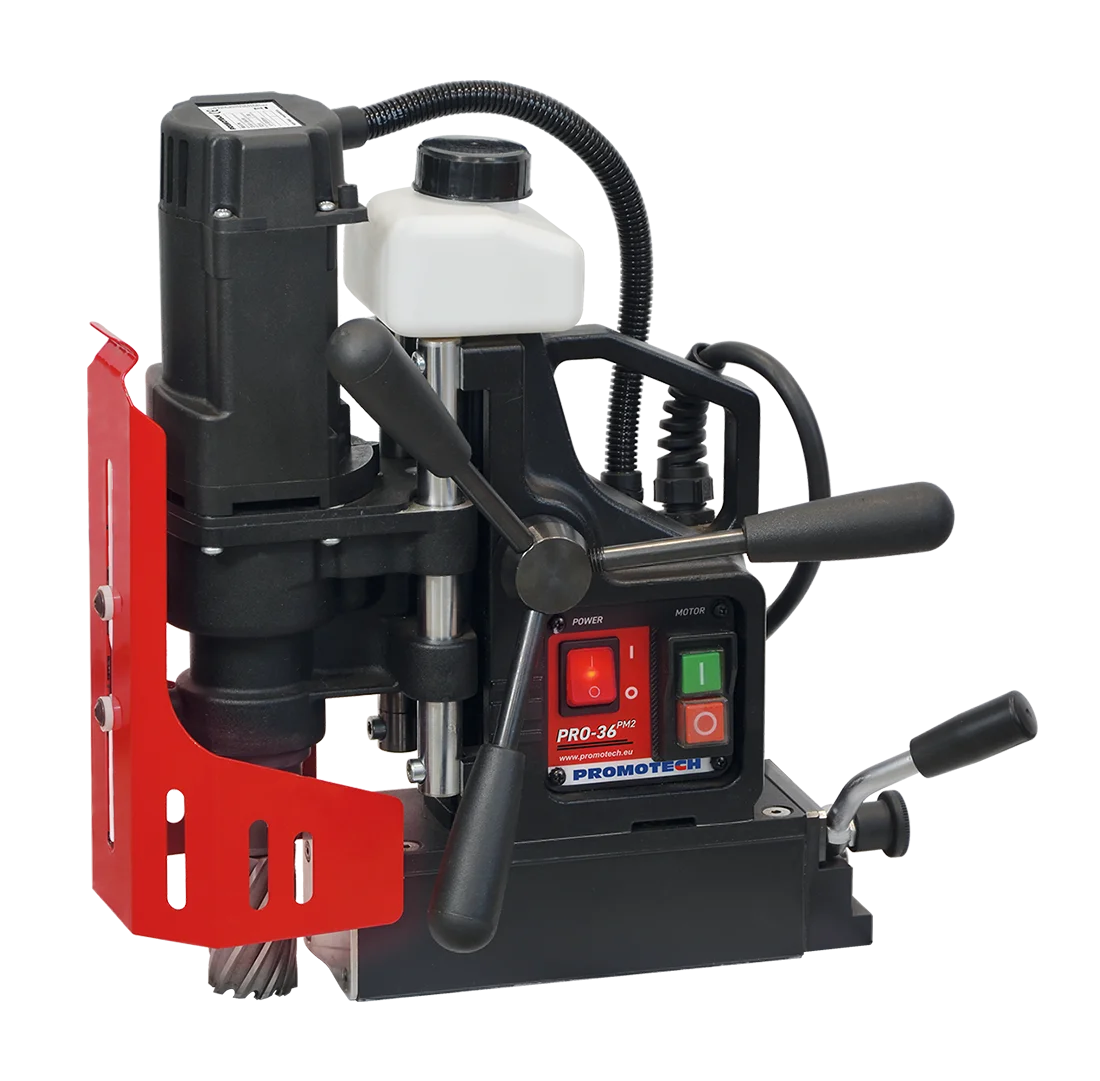

PRO-36 PM2 Drill for Special Applications

PRO-36 PM2 Drill for Special Applications


The machine equipped with a magnetic base is specifically engineered for use in situations that may involve a risk of power outages, such as when drilling into walls. Its magnetic base, powered by strong neodymium magnets, is a key feature, allowing it to operate without the need for electricity. This ensures that the machine remains operational even in the absence of power, providing reliability and convenience.

One of the standout features of this machine is its switchable holding force, which facilitates easy and accurate positioning of the drill. By partially engaging the magnetic base, users can adjust the drill’s position with precision, enhancing the drilling process’s effectiveness and efficiency.

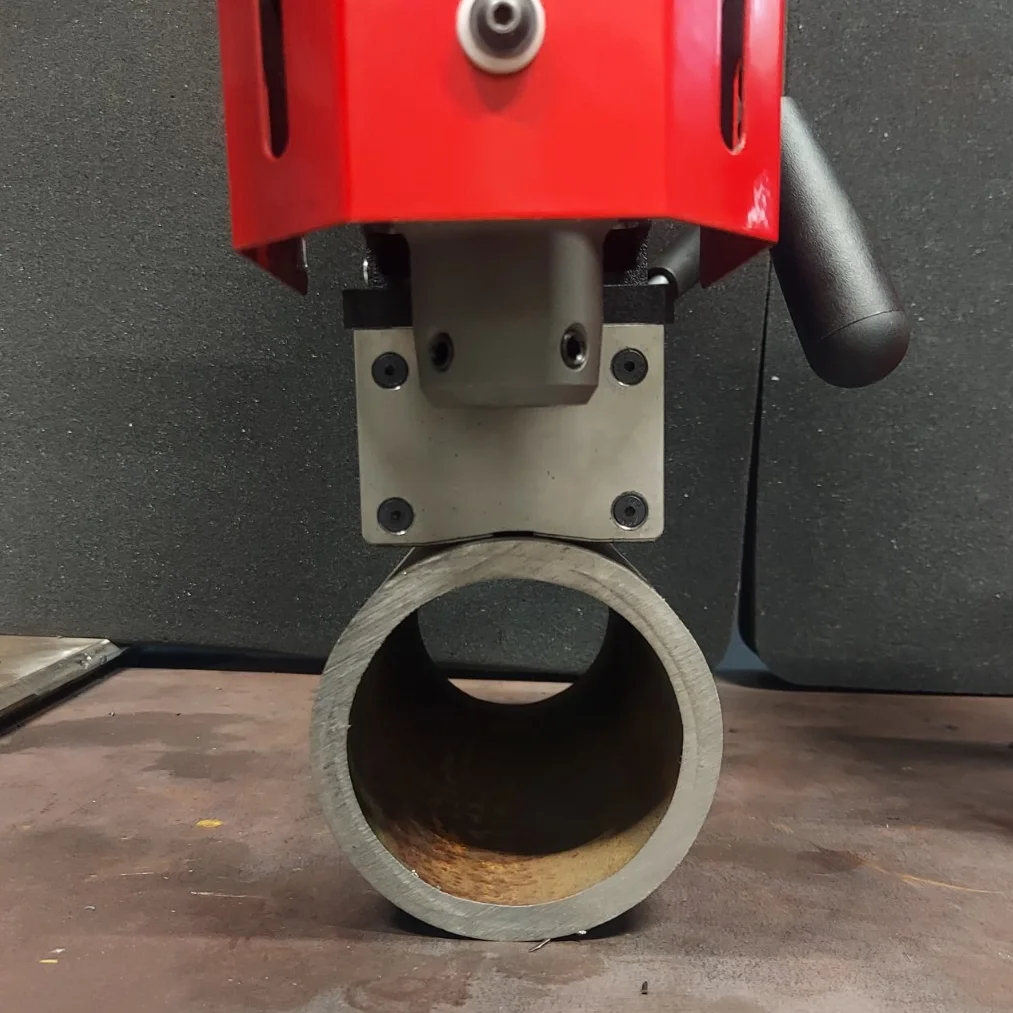

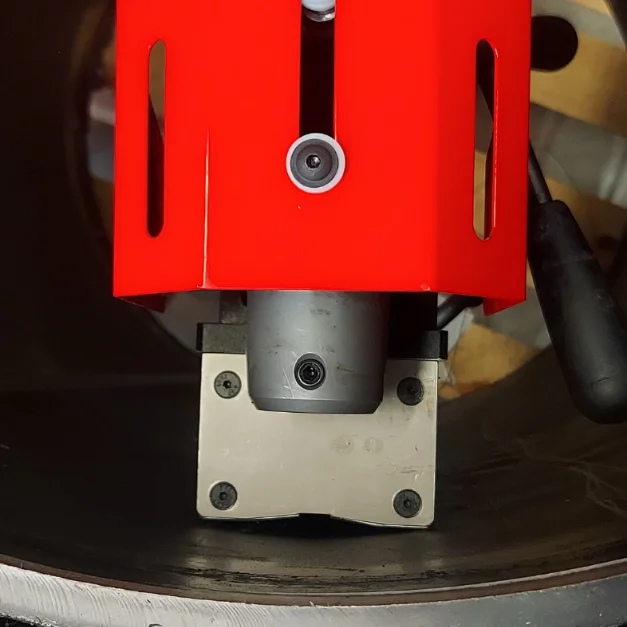

Designed for versatility, the drill accommodates a variety of material shapes, including convex surfaces with a minimum diameter of 80 mm and concave surfaces with a minimum diameter of 1000 mm. This adaptability allows users to tackle a wide range of drilling tasks with ease, making the machine a practical choice for diverse applications.

Technical Specifications
Motor speed (under load) 350 rpm
Power 1020 W
Weight 14 kg (31 lbs)
Max milling capacity 36 mm (1 7/16’’)
Max drilling capacity 12 mm (0.47”)
Stroke 70 mm (2 3/4’’)
Max depth of cut 35 mm (1 3/8’’)
Voltage

1~ 110–120 V, 50–60 Hz

1~ 220–240 V, 50–60 Hz

MFSC (Magnetic Field Shape Control)
Magnetic base holding force 612 kgf (6 000 N)
Magnetic base dimensions

243mm × 218 mm × 96 mm

9.57’’ × 8.58’’ × 3.78’’

Minimum workpiece thickness 5 mm (0.24”)
Tool holder 19 mm (3/4’’) Weldon
Product Code (110-120V) WRT-0440-10-10-05-4
Product Code (220-240V) WRT-0440-10-20-05-4
