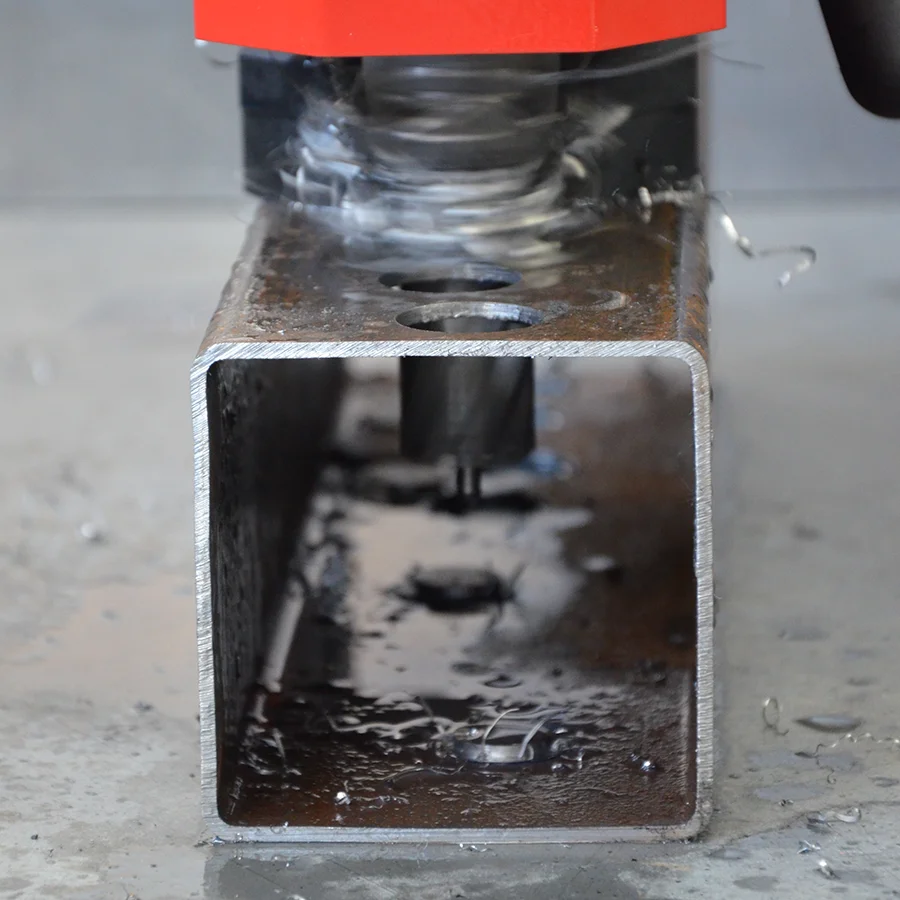

This innovative approach to magnetic field distribution means that the machine’s electromagnetic base can maintain a strong, reliable grip on extremely thin materials. This feature is particularly advantageous for precision work on thin steel profiles, where maintaining stability and accuracy is crucial. The ability to work effectively on such thin materials opens up new possibilities for construction and manufacturing projects, making this machine a valuable tool for professionals seeking versatility and efficiency in their operations.

2 years of warranty

Technical Specifications

Motor speed (under load)	350 rpm
Power	1020 W
Weight	11 kg (24 lbs)
Max milling capacity	36 mm (1 7/16’’)
Max drilling capacity	12 mm (1 9/16’’)
Stroke	70 mm (2 3/4’’)
Max depth of cut	51 mm (2’’)
Voltage	1~ 110–120 V, 50–60 Hz 1~ 220–240 V, 50–60 Hz
MFSC (Magnetic Field Shape Control)	yes
Magnetic base holding force	918 kgf (9 000 N)
Magnetic base dimensions	100 mm × 200 mm × 38 mm 3.94’’ × 7.87× 1.5’’
Minimum workpiece thickness	3 mm (0.12’’) for rigid steel profiles 3 - 6 mm (0.12” - 0.24’’) to be careful
Tool holder	19 mm (3/4’’) Weldon
Product Code (110-120V)	WRT-0440-10-10-04-4
Product Code (220-240V)	WRT-0440-10-20-04-4
