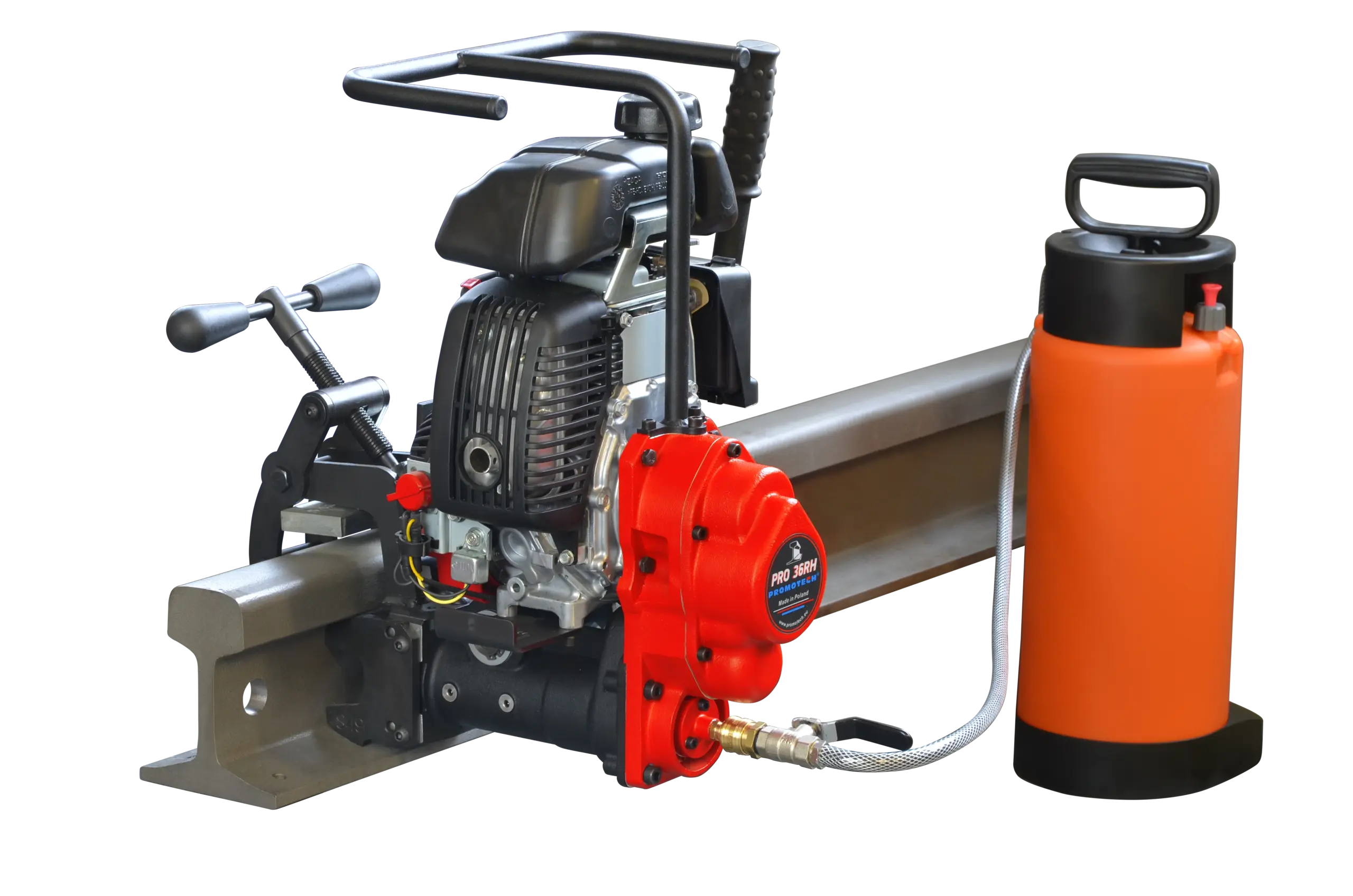

PRO-36RH Petrol Motor Rail Drill

Brand:
PRO-36RH Petrol Motor Rail Drill
PRO-36RH Petrol Motor Rail Drill - Image 2

PRO-36RH Petrol Motor Rail Drill

Brand:
Order a product
Technical specialist

PRO-36RH enables drilling in rails of any standard with two optional rail profile templates and one-hole center positioner, to be chosen by customers from a comprehensive range of auxiliary accessories dedicated to a variety of types of rails. PRO-36RH can also be ordered with an electric motor as PRO-36R.

Features and Advantages
  • Powerful 4-stroke petrol motor enables drilling of holes up to 36 mm in diameter
  • Compact and lightweight rail drill
  • No need for an electric supply means it is ideally suited for site work
  • Fast positioning, quick clamping, and instant unlocking mechanisms make it easy to use and safe device
  • Pressure Coolant system including 5l bottle enables forced feeding of the cooling medium in any drilling positions
  • Custom-made positioners and templates to suit any required rail standards are available on request
  • 2 years of warranty
Technical Specifications

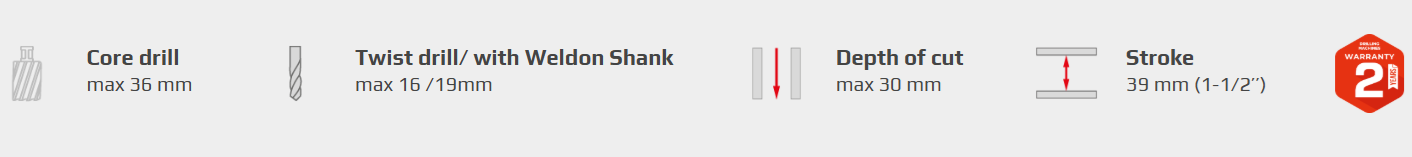

Spindle Tool Holder Arbor 19 mm; 3/4" Weldon
Max milling capacity Ø 36 mm (1 7/16")
Max drilling capacity Ø 16 mm (5/8")
Stroke 39 mm (1 1/2")
Max depth of cut 30 mm (1 3/16")
Motor type 4-stroke petrol engine
Power consumption 1500 W
Motor Power 1500 W
Speeds 225 rpm
Weight 18.5 kg (40.8 lbs)
Product Code WRT-0565-10-00-00-0

pro-36rh-en Drills-Punchers_Product-Catalogue_25.09 Drills-Punchers_Product-Overview_25.08
