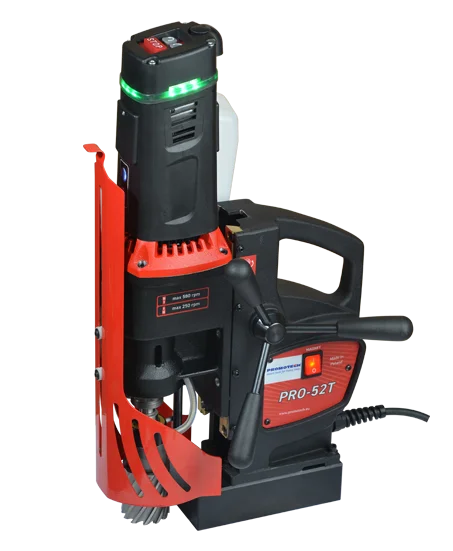

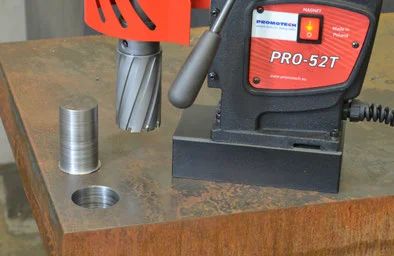

PRO-52T Universal Tapping and Drilling Machine

Особливості та переваги

Integral forward/reverse operation – ability to tap pre-drilled holes up to M20
360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
Electronic Speed Stabilization System (ESSS) maintains stable speed regardless of load changes
Rigid casting designed to withstand downwards drilling force, prolonging the tool life
Tilt sensor – to stop the motor if the machine breaks away from the surface whilst in operation
Semi-automatic gib adjustment enables simple, fast, correct and repeatable slide backlash settings without any expert knowledge or experience
Energy Saving Base (ESB) uses only 50% of its power when motor is not running
Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
2 years of warranty

Технічні характеристики

Motor Speeds (under load)	160–250 rpm (gear I) 390–580 rpm (gear II)
Power	1600 W
Weight	17 kg (37 lbs)
Max milling capacity	50 mm (2”)
Max drilling capacity	23 mm (7/8”)
Max Tap size	M20 (3/4")
Stroke	190 mm (7-1/2”)
Max depth of cut	75 mm (3”) *
Voltage	1~ 220–240 V, 50–60 Hz 1~ 110–120 V, 50–60 Hz
Overload protection	yes
Overheat protection	yes
Continuous Speed Adjustment	yes
ESSS (Electronic Speed Stabilization System)	yes
Semi-automatic gib adjustment yes	yes
MFSC (Magnetic Field Shape Control)	yes
ESB – Energy Saving Base	yes
Magnet detachment safeguard	yes
Magnetic clamping force (surface with the thickness of 25 mm and roughness Ra = 1.25)	1122 kgf (11 000 N)
Magnet Base Dimensions	90 mm × 180 mm × 48 mm 3-9/16" x 7" x 1-7/8"
Min. Workpiece Thickness	8 mm (5/16)
Spindle	MT2
Tool holder	19 mm (3/4”) Weldon
Product Code 220–240 V, 50–60 Hz	WRT-0600-10-20-00-0
Product Code 110–120 V, 50–60 Hz	WRT-0600-10-10-00-0

* If more than 51 mm (2″), use AMT2-C19/2-3 Arbor (UCW-0220-00-00-00-4).
