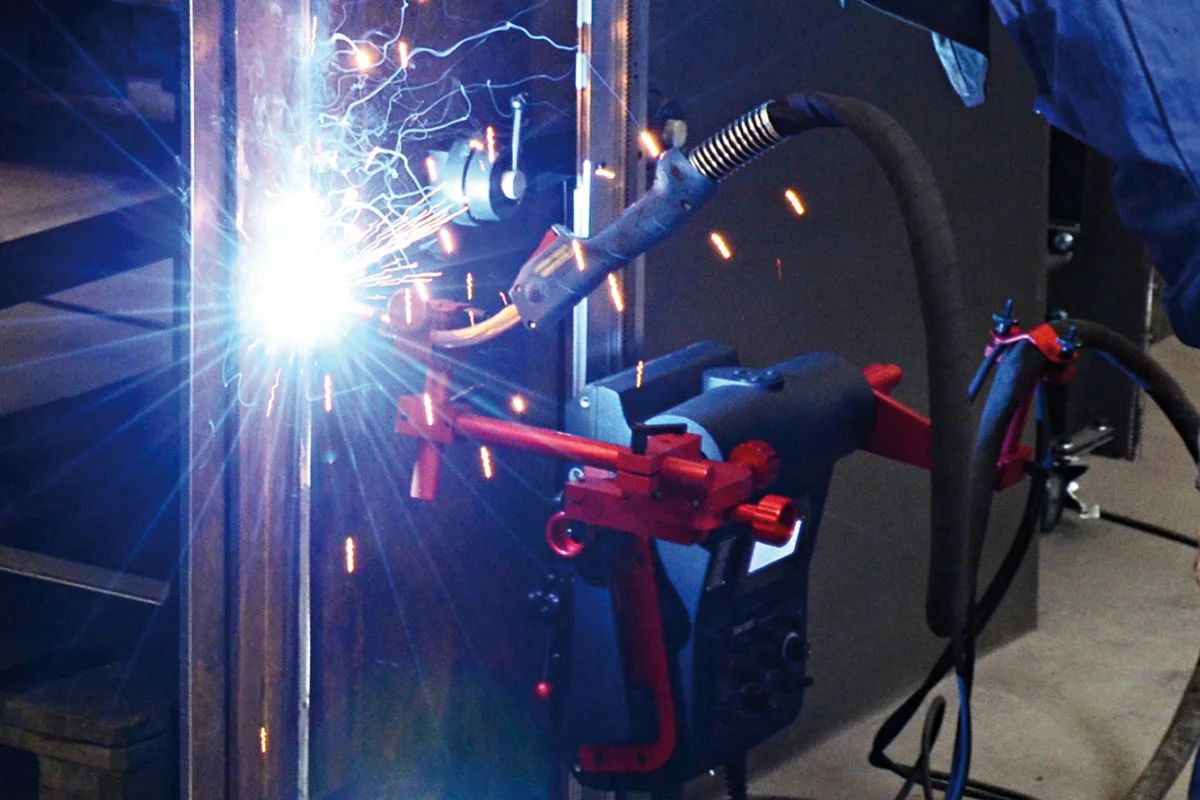

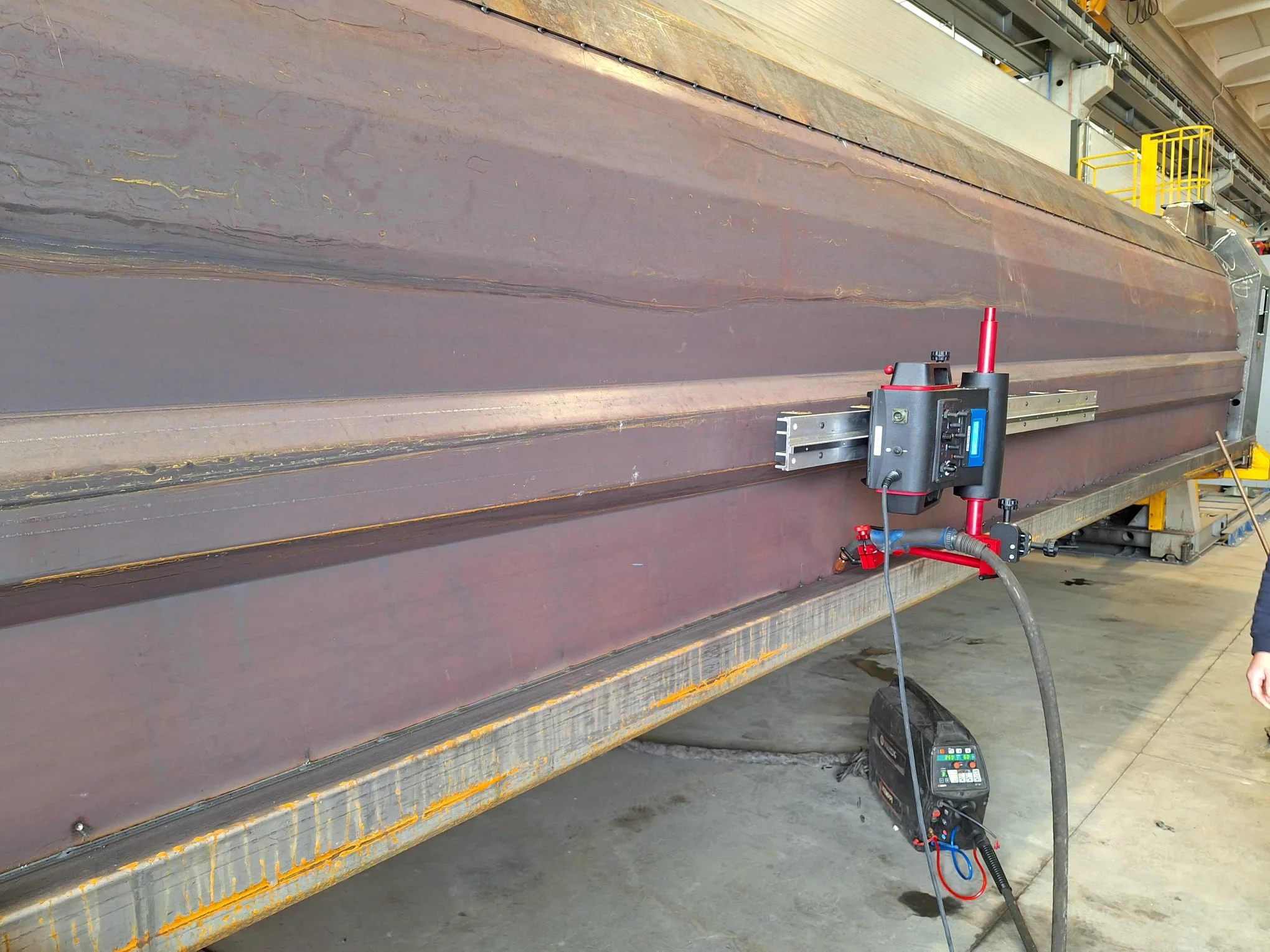

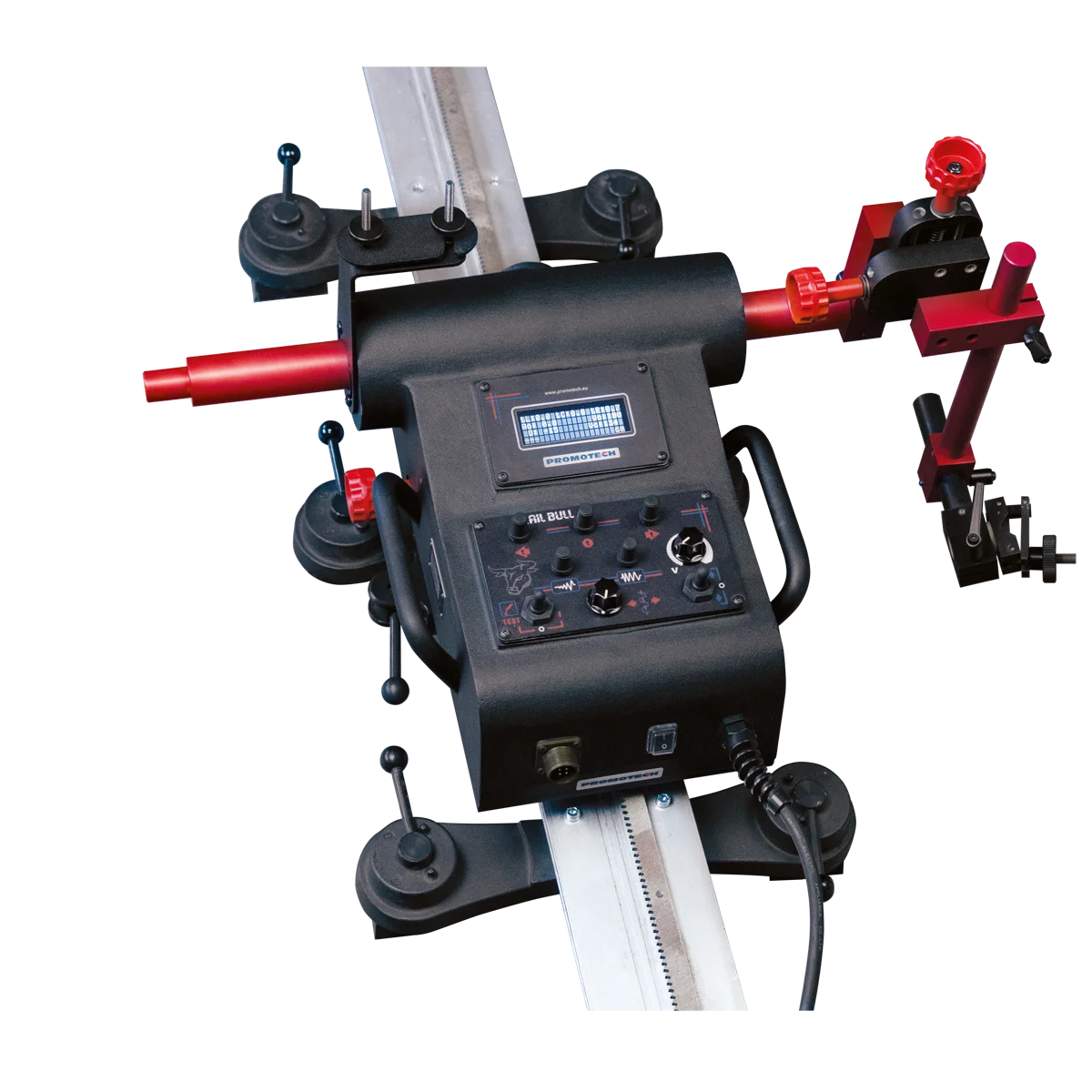

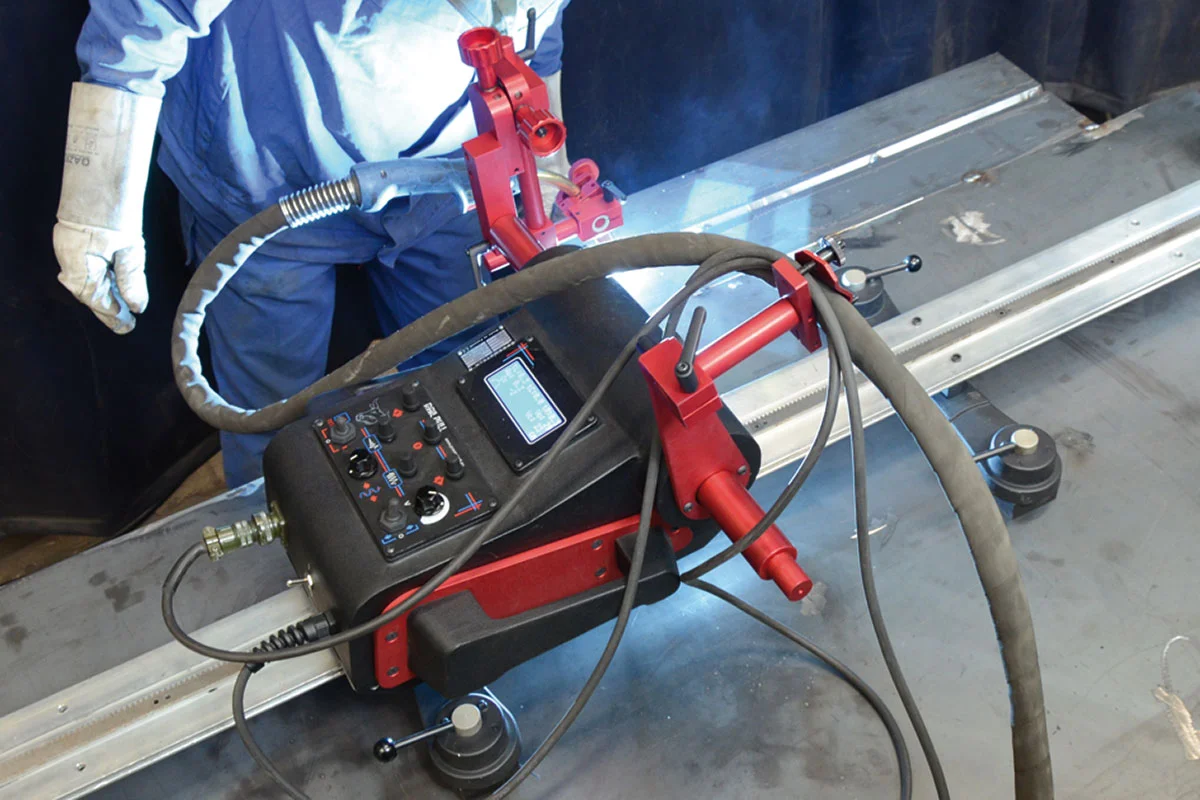

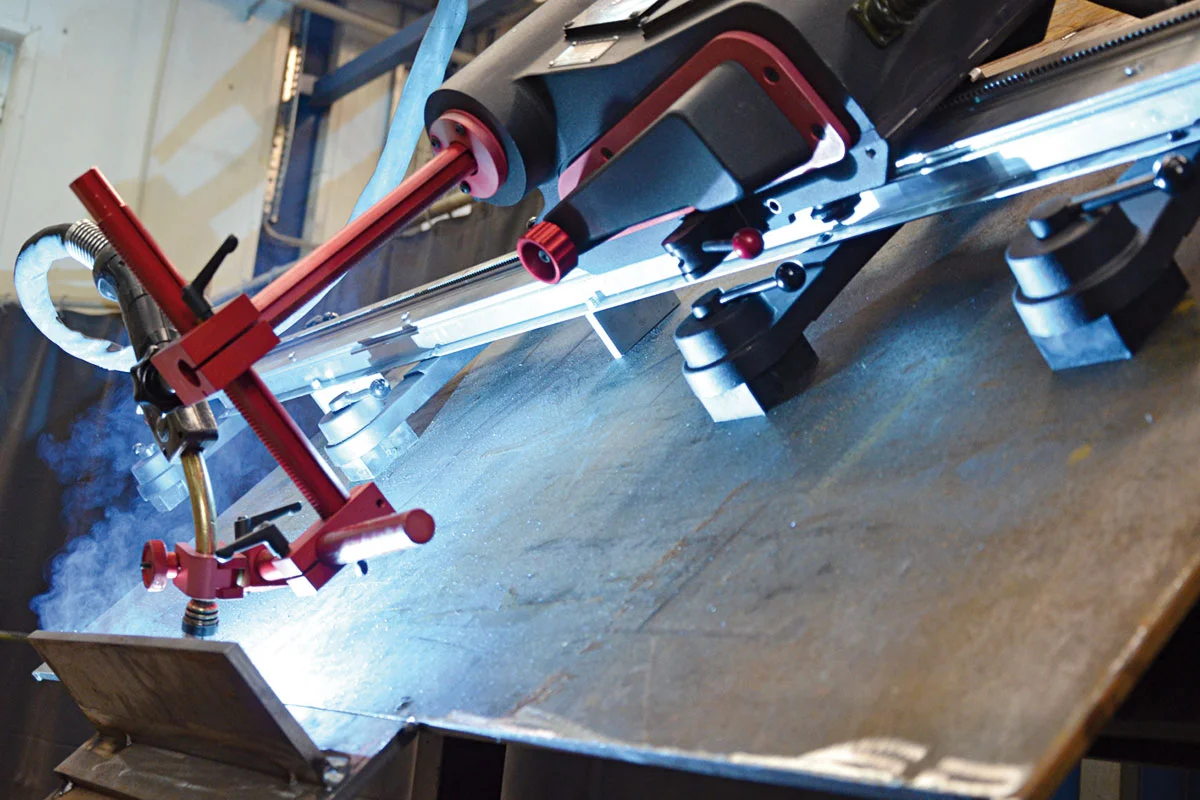

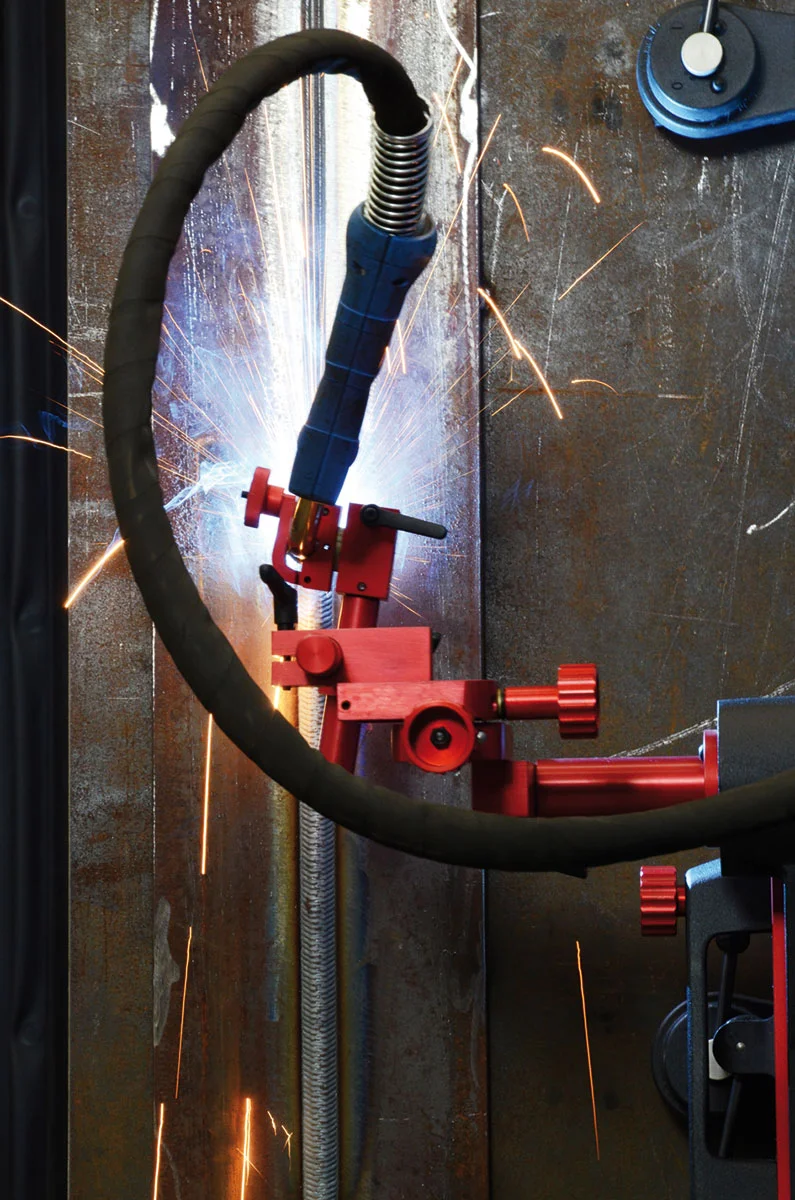

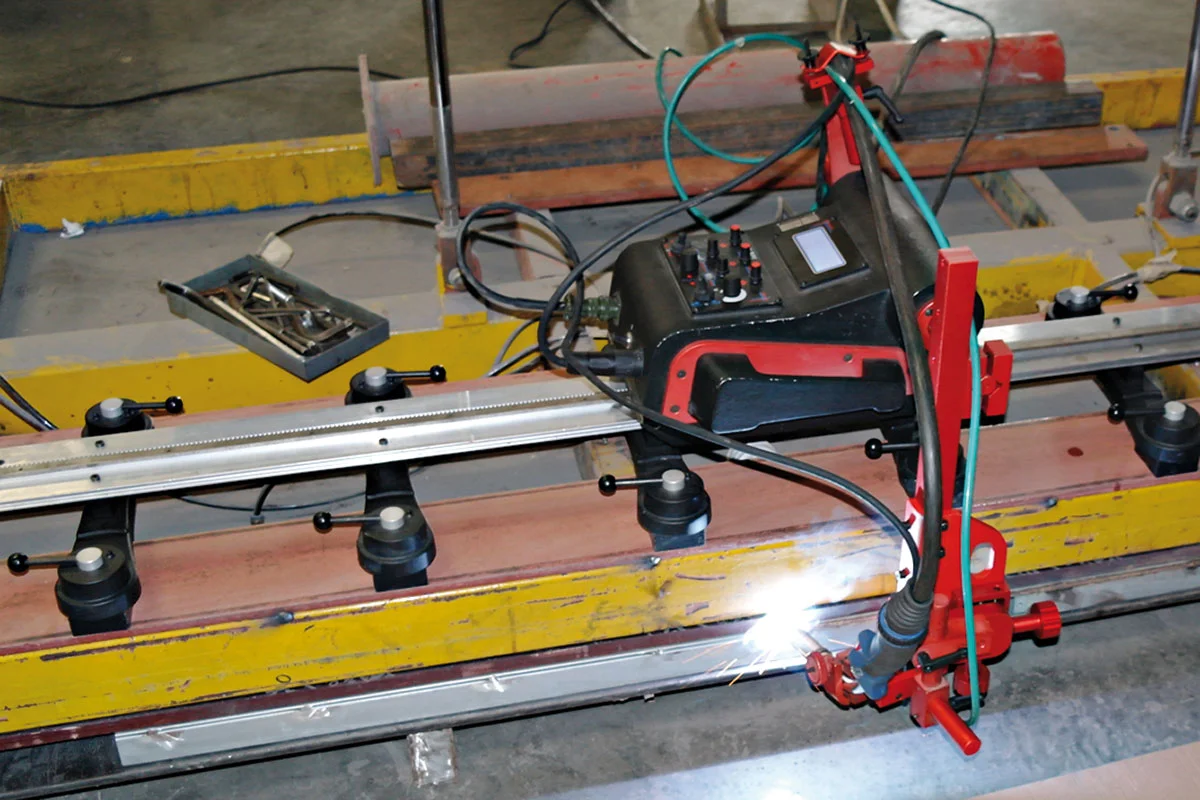

Rail Bull Welding & Cutting Track Carriage

Advantages and Features

Closed loop position control system based on an electric motor with an encoder ensures increased accuracy of speed and positioning
Integrated linear oscillator for weave welding and overlay

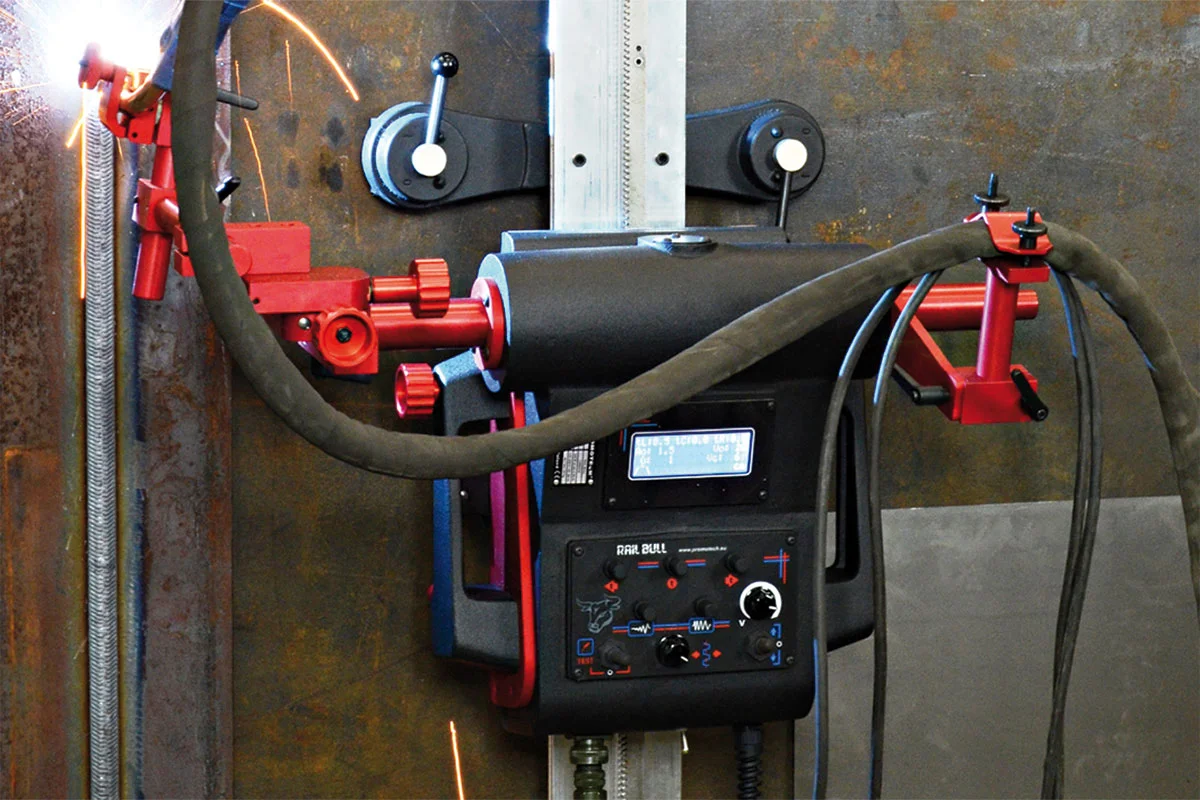

Multifunctional LCD shows process parameters and warnings
Compact, lightweight design with a durable aluminum cast housing
Convenient power supply 115–230 V, 50–60 Hz or 42 V, 50–60 Hz

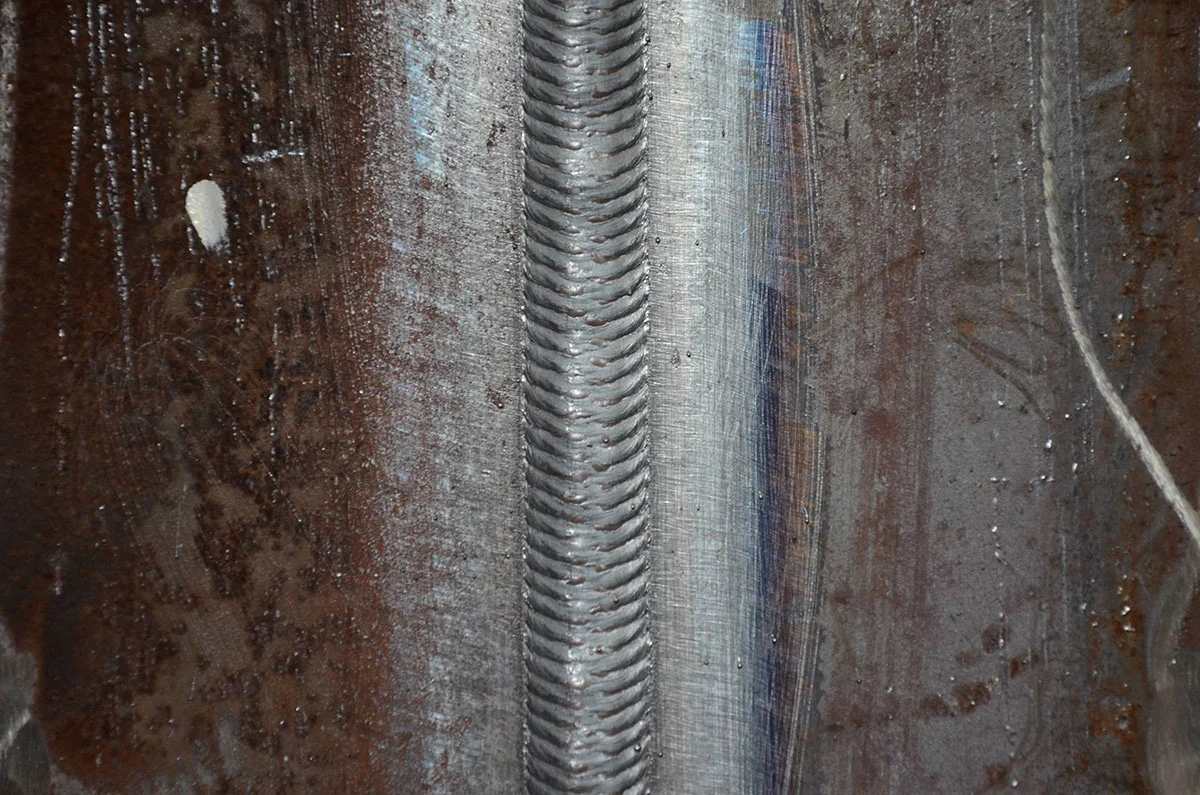

Rail Bull produces consistently high-quality welds and cuts in a fraction of the time required by manual operations
3 years of warranty

Technical Specifications

Voltage	1~ 100–240 V, 50–60 Hz 42 V, 50–60 Hz
Power	100 W
Welding position (according to EN ISO 6947 and AWS/ASME)	PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G PF / 3G PG / 3G

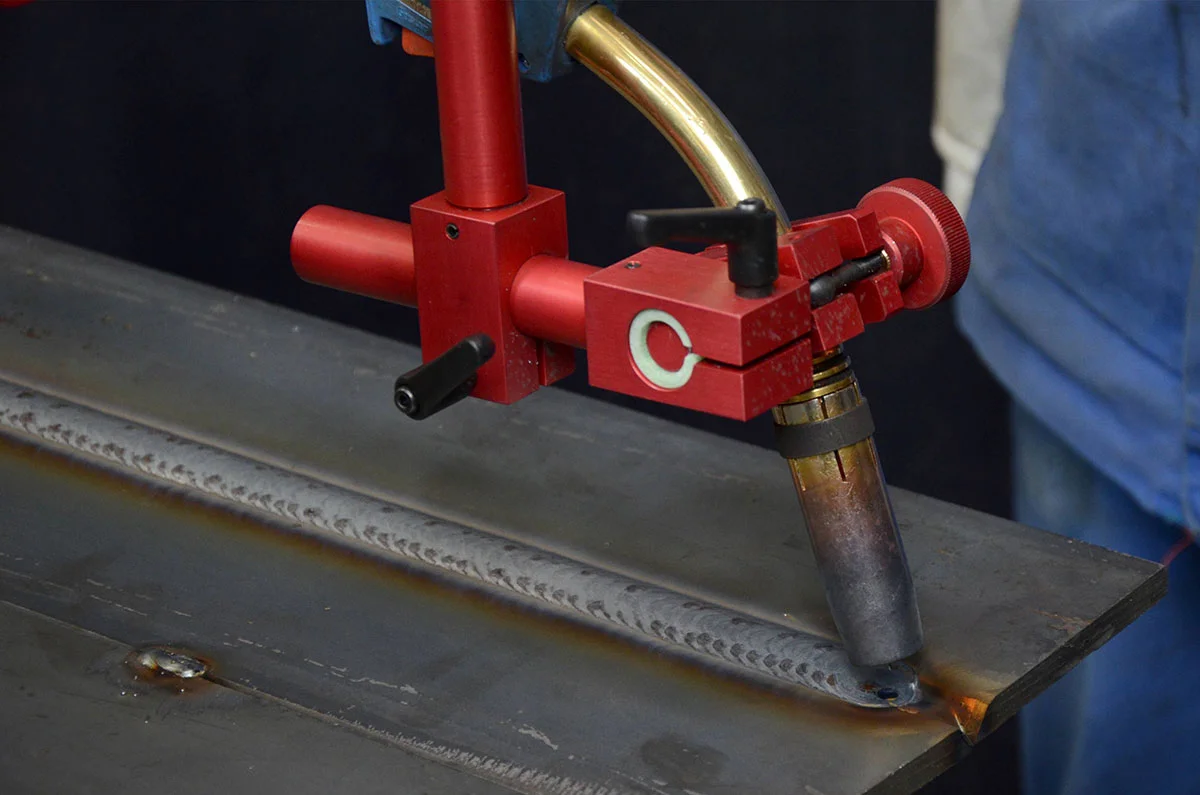

Torch diameter	16–22 mm (0.63–0.87”); up to 35 mm (1.38”) option
Minimum radius of curved workpiece surface	5000 mm (16 ft)
Minimum workpiece thickness	5 mm (0.2”)
Horizontal pulling force	350 N
Vertical pulling force	150 N
Cross slide adjustment range	0–35 mm (0–1.38”) up‑down, left-right
Horizontal speed	0–120 cm/min (0–47.2 in/min)
Vertical speed	0–110 cm/min (0–43.3 in/min)
Weight	16.5 kg (36.4 lbs)
Welding settings storage	1 (last used)
Oscillation type	linear (0 - 100 mm)
Oscillation (weaving) pattern	trapezoid, triangle, straight line
Oscillation width	0–50 mm (0–1.9”)
Oscillation speed	0–1500 mm/min (0–59 in/min)
Oscillation delay time	0–5 s (at external and central points)
Product Code (115–230 V, 50–60 Hz, plug EU)	WOZ-0482-10-20-01-0
Product Code (115–230 V, 50–60 Hz, plug UK)	WOZ-0482-10-10-01-0
Product Code (42 V, 50–60 Hz)	WOZ-0624-10-04-00-0
