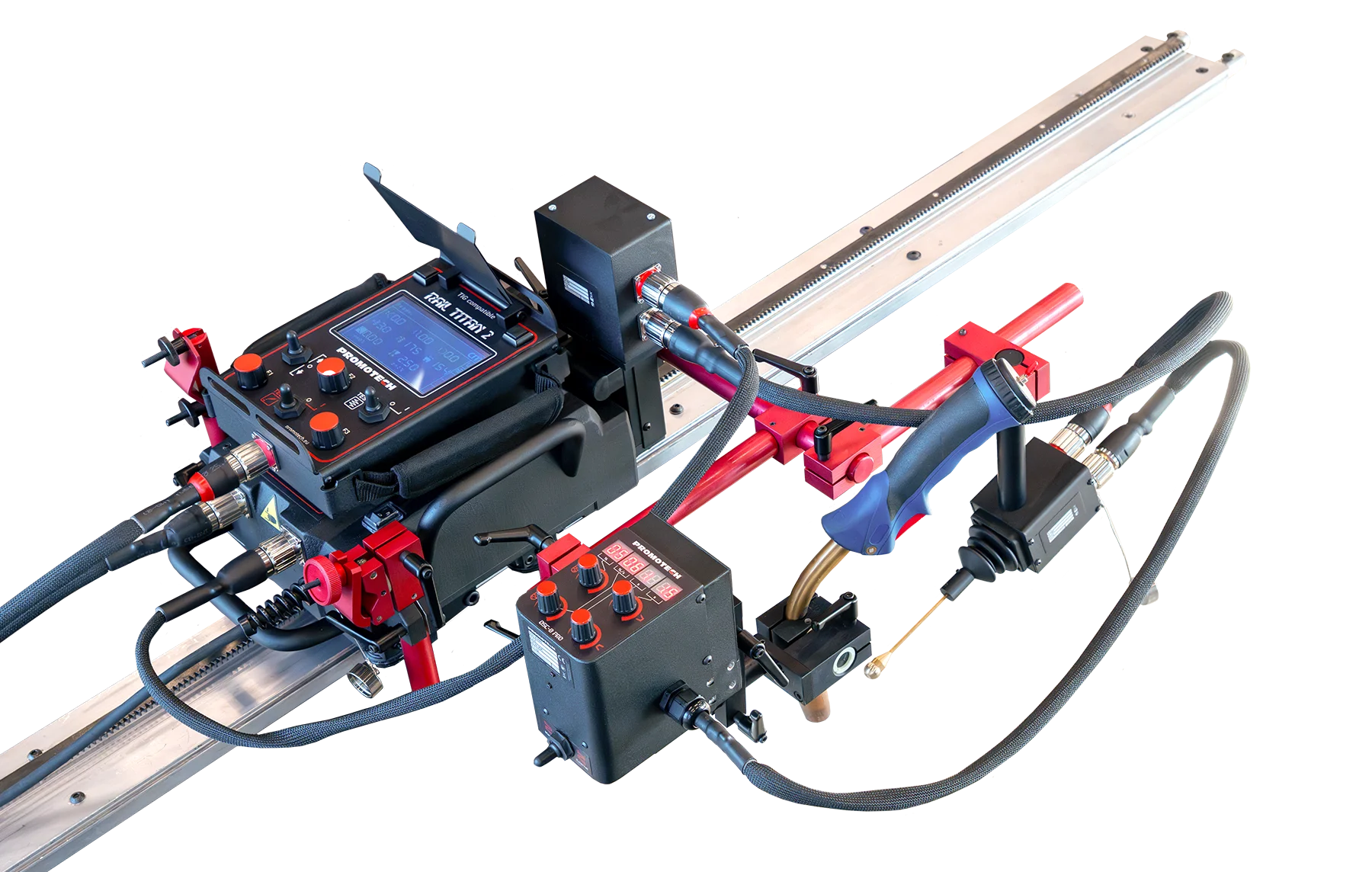

RAIL TITAN 2 Modular TIG / MIG-MAG Rail Tractor

Advantages and Features

Suitable for TIG welding (HF resistant)
Mirror Switch function
Robust design with die-cast aluminum housing

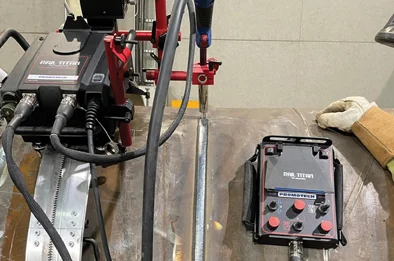

Ergonomic remote control pendant with simple and easy-to-find control knobs makes adjustments possible without lifting the operator’s welding hood
Programmable path of stitch welds

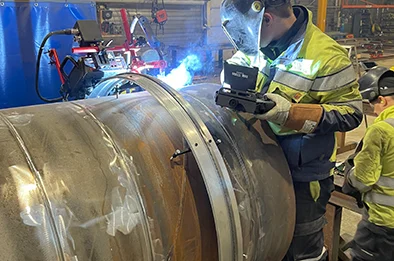

Suitable for a variety of circumferential and irregular surface applications down to min. radius of 100 mm (4”)

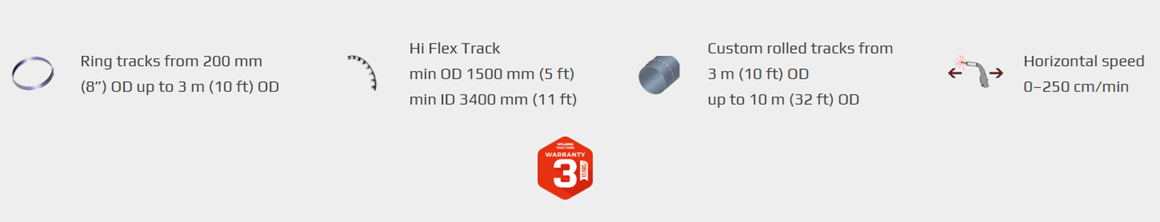

- Ring tracks on diameters from 200 mm (8”) OD up to 3 m (10 ft) OD
- Hi-Flex tracks on diameters from 1500 mm (59”) OD upwards
- Semi-flexible tracks can be flexed to a minimum radius of 5 m (16 ft) without permanent deformation
3 years of warranty

Technical Specifications

Voltage		1~100-240V, 50-60Hz
Power		120 W
Welding position (according to EN ISO 6947 and AWS/ASME)	Horizontal	PA/1F/1G PB/2F PC/2G PD/4F PE/4G
	Vertical	PF/3G PG/3F (contact your dealer) PG/3G
Fixing on pipes and round workpieces	Ring tracks (OD) Hi-flex tracks (OD) Hi-flex tracks (ID) Custom rolled tracks (OD) Semi-flex tracks (OD)	200 mm (8”) – 3 m (10 ft) Minimum 1.5 m (5 ft) Minimum 3.4 m (11 ft) 3–10 m (10–32 ft) (contact your dealer) Minimum 10 m (32 ft)
Torch type		MIG/MAG, TIG, oxy-fuel, plasma
MIG/MAG torch diameter		16–22 mm (0.63–0.87”)

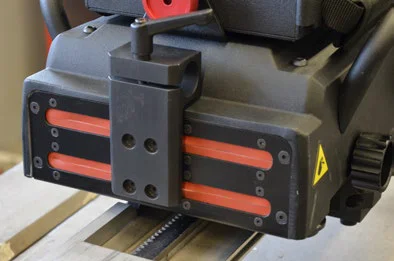

Minimum workpiece thickness for magnetic clamping		5 mm (0.2”)
Horizontal pulling force		400 N
Vertical pulling force		315 N
Horizontal speed		0–250 cm/min (0–98 in/min)
Vertical speed		0–250 cm/min (0–98 in/min)
Oscillation type		Linear
Weld path		Straight, triangle, trapezoid, square
Oscillation width		0.1–11.8 cm (0.04–4.5”)
Oscillation speed		10–200 cm/min (5–78 in/min)
Oscillation dwell time at center and on ends		0–5 s
Maximum oscillator pulling force		100 N
Weight (incl. standard accessories)		13 kg (29 lbs)
Product code		WOZ-0813-10-20-00-0
