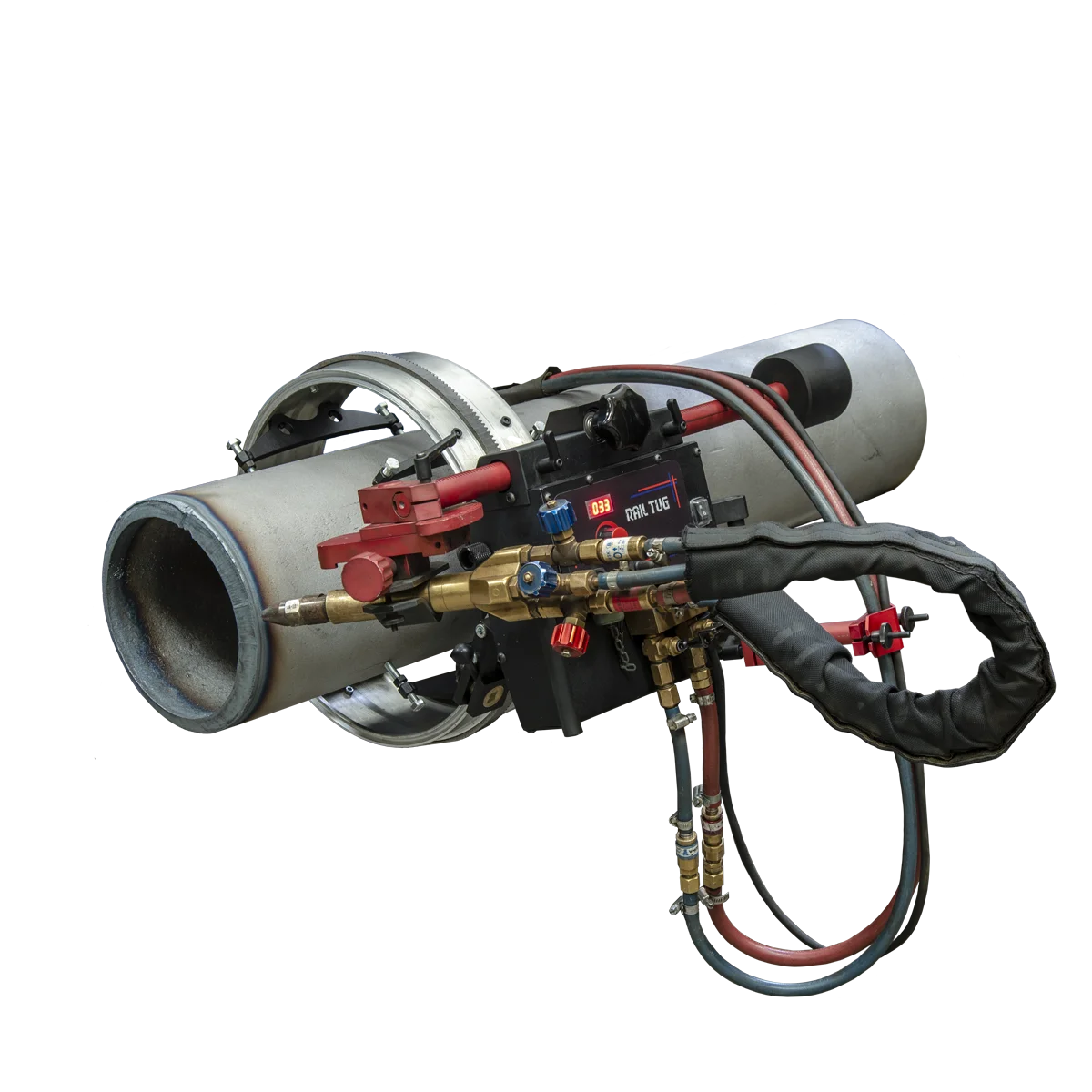

Rail Tug Welding and Cutting Tractor

Advantages and Features

Compact, lightweight design
The closed-loop speed control system stabilizes travel speed, enabling uniform heat input to produce consistently high-quality welds and cuts
Digital LED display for pre-setting travel speed
Convenient power supply 115–230 V, 50–60 Hz
Suitable for a variety of circumferential and irregular surface applications down to a minimum radius of 100 mm (4″)

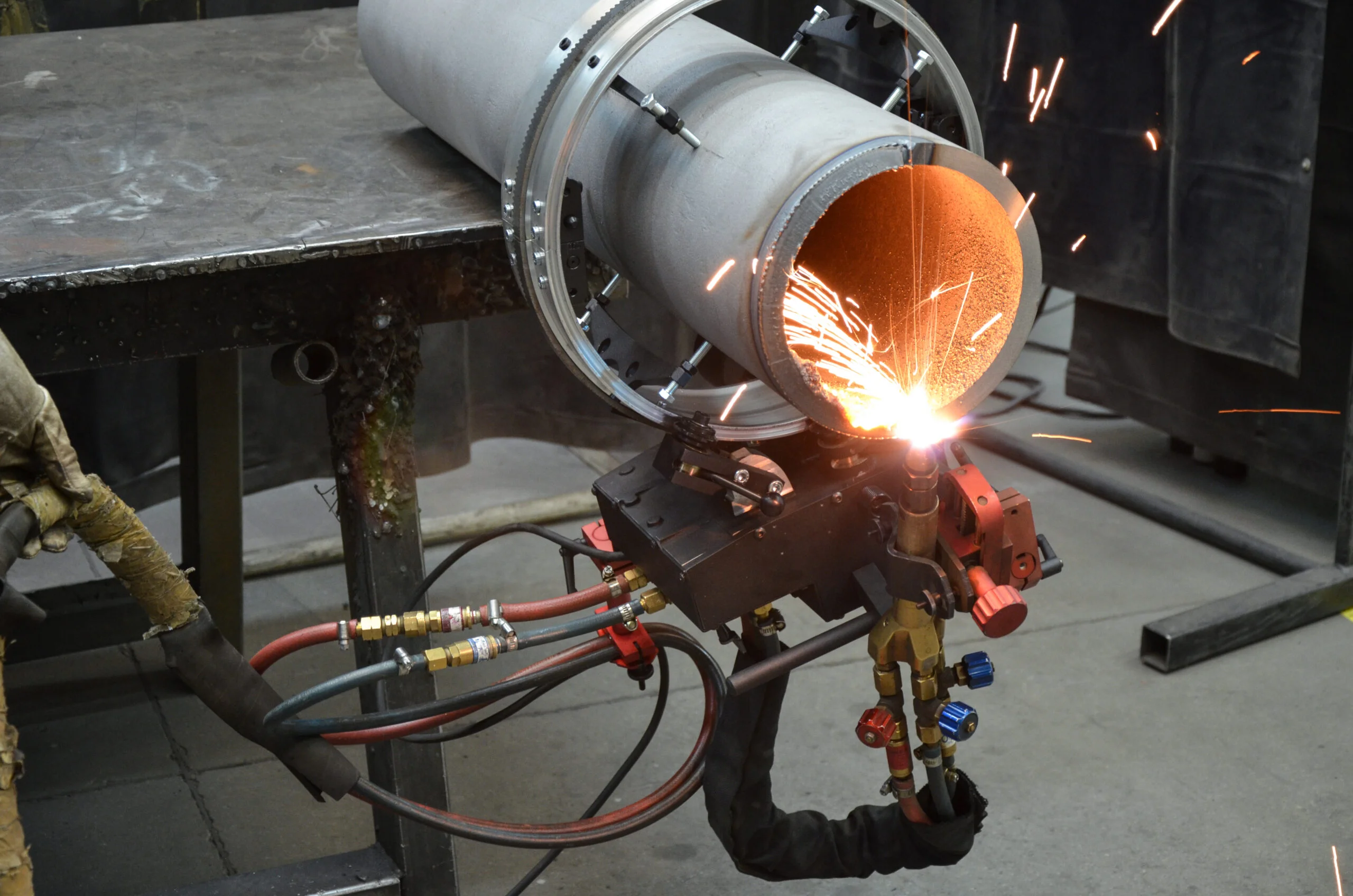

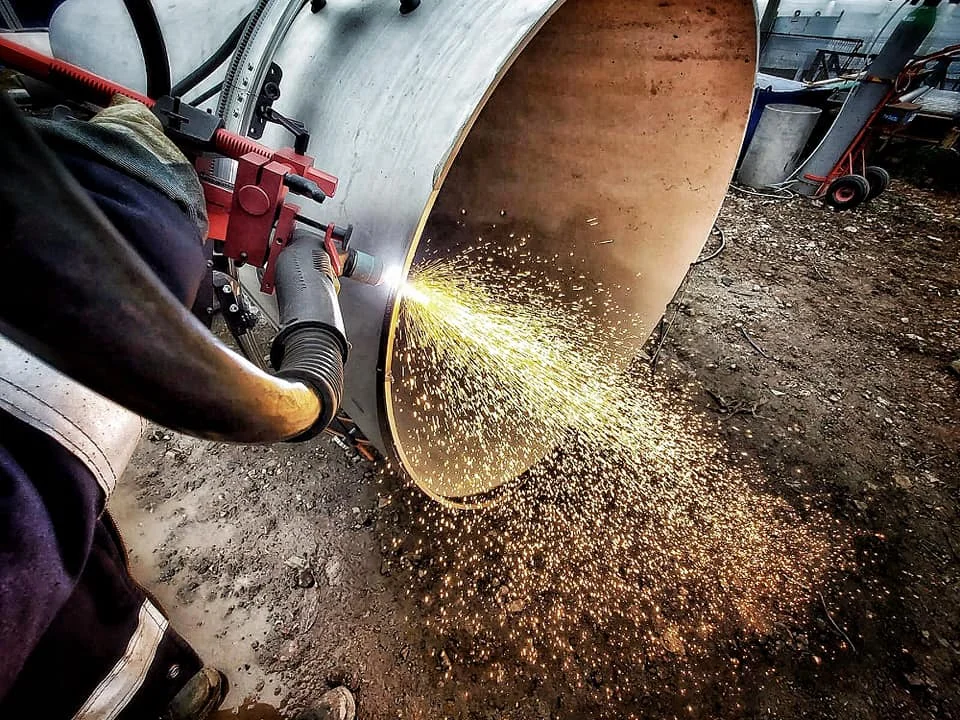

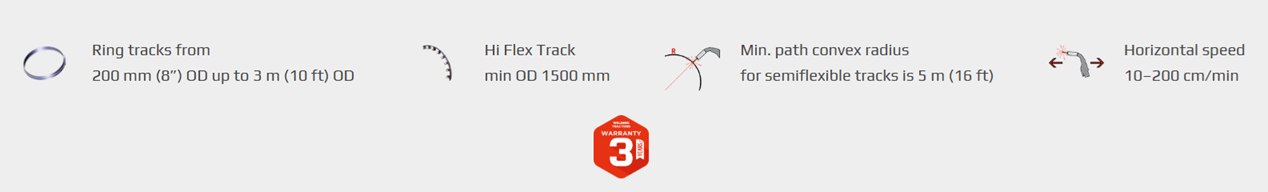

Ring tracks on diameters from 200 mm (8″) OD up to 3 m (10 ft) OD
Hi-Flex tracks on diameters from 1500 mm (59″) OD upwards
Semi-flexible tracks can be bent to a minimum radius of 5 m (16 ft) without permanent deformation
3 years of warranty

Technical Specifications

Voltage	1~ 115–230 V, 50–60 Hz
Power	66 W
Welding position (according to EN ISO 6947 and AWS/ASME)	PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G PG / 3F (contact your dealer)
Fixing on pipes and round workpieces - Ring tracks	PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G PG / 3F (contact your dealer)
Fixing on pipes and round workpieces - Hi-flex tracks	PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G PG / 3F (contact your dealer)
Torch type	MIG/MAG, SAW, Plasma, Oxy-fuel
Fixing on pipes and round workpieces - Semi‑flexible track	Minimum curvature radius of 5 m (16 ft)
Torch diameter -MIG/MAG	16–22 mm (0.63–0.87’’) up to 35 mm (1.38”) option
Torch diameter SAW, Plasma	16–22 mm (0.63–0.87’’) up to 35 mm (1.38”) option
Torch diameter Oxy-fuel	16–22 mm (0.63–0.87’’) up to 35 mm (1.38”) option
Horizontal pulling force	300 N
Vertical pulling force	200 N
Horizontal speed	10–200 cm/min (4–80 in/min)
Vertical speed	10–200 cm/min (4–80 in/min)
Weight	10 kg (22 lbs)
Product Code (115–230 V, 50–60 Hz, plug EU)	WOZ-0570-10-20-00-0
