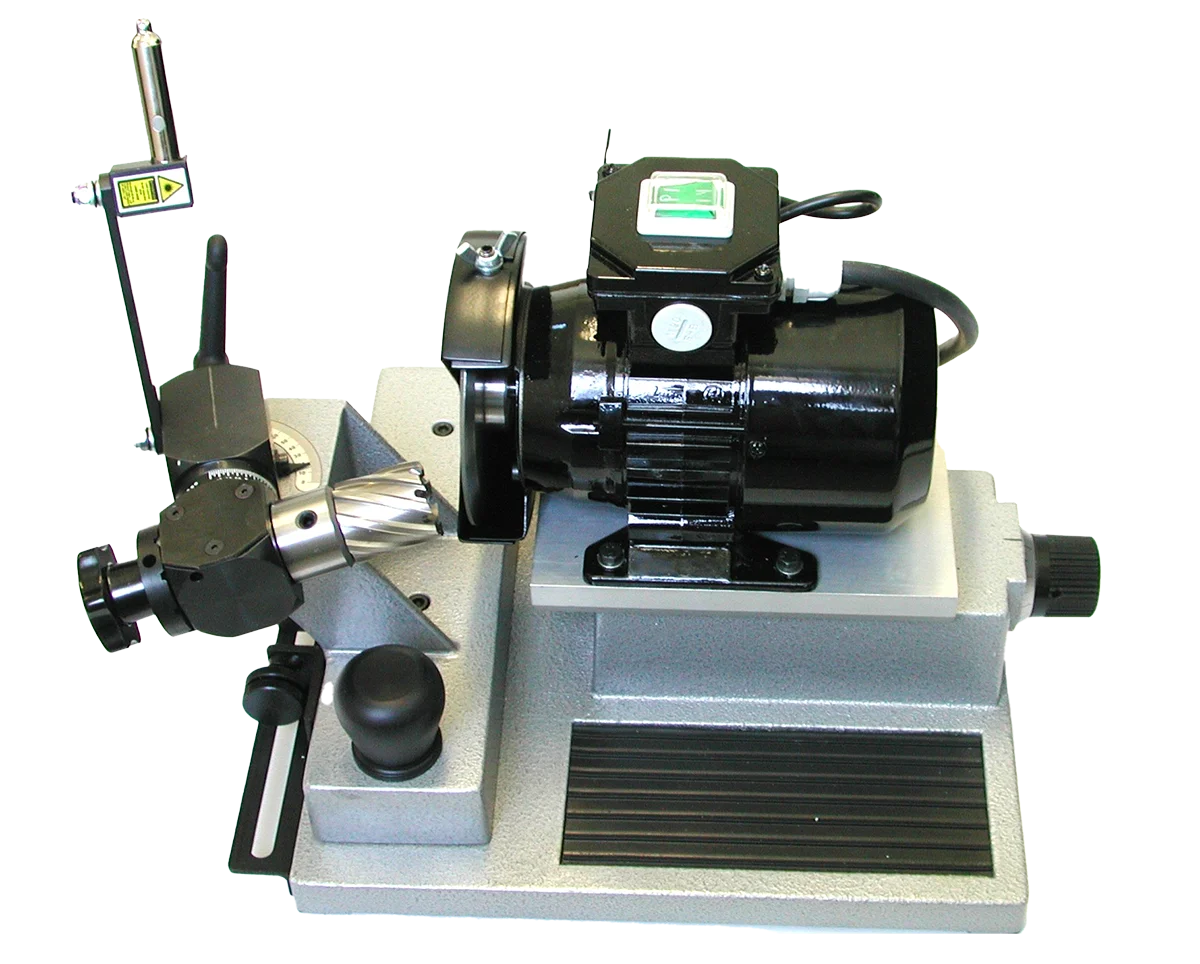

SM-101 Annular cutter regrinding machine

SM-101 Annular cutter regrinding machine


Annular cutter regrinding machine SM-101 saves time and money in carrying out an effective HSS core drills re-sharpening, particularly if the customer is in urgent need for continued production drilling. Thanks to its solid construction, low power consumption, small dimensions, the machine can be used in any place and needs short time to be installed.

Advantages and Features
  • simple set up operation – easy positioning of cutting tool
  • economical – far less expensive than heavier equipment
  • lightweight and portable – ideal for site work, or a small workshop
  • diamond wheel – creates a sharp, clean new cutting edge
  • easy angle adjustment – simple alignment to original angle geometry
  • laser guided cutter alignment – ensure correct positioning of cutting edge to the wheel
  • will re-sharpen cutters from 12mm to 50 mm diameter in cutting depths of 25 mm and 50 mm
Technical Specifications
Dimensions L x W x H 465 x 399 x 355 mm
Net weight 15.5 kg
Supply [V] 1~230 V, 50–60 Hz
Motor power / speed 0.18 kW / 2820 rpm
Movement length Motor guide 70 mm
Movement length Guiding slide 162 mm
Noise level <70 dB(A)
Grinding disc Electroplated, diamond grinding disc Ø 125 mm
Cutter’s clamping 19.05 mm (Weldon shank)
Max cutter’s length 50 mm
Scope of the cutter’s diameter Ø 12 mm - Ø 50 mm
