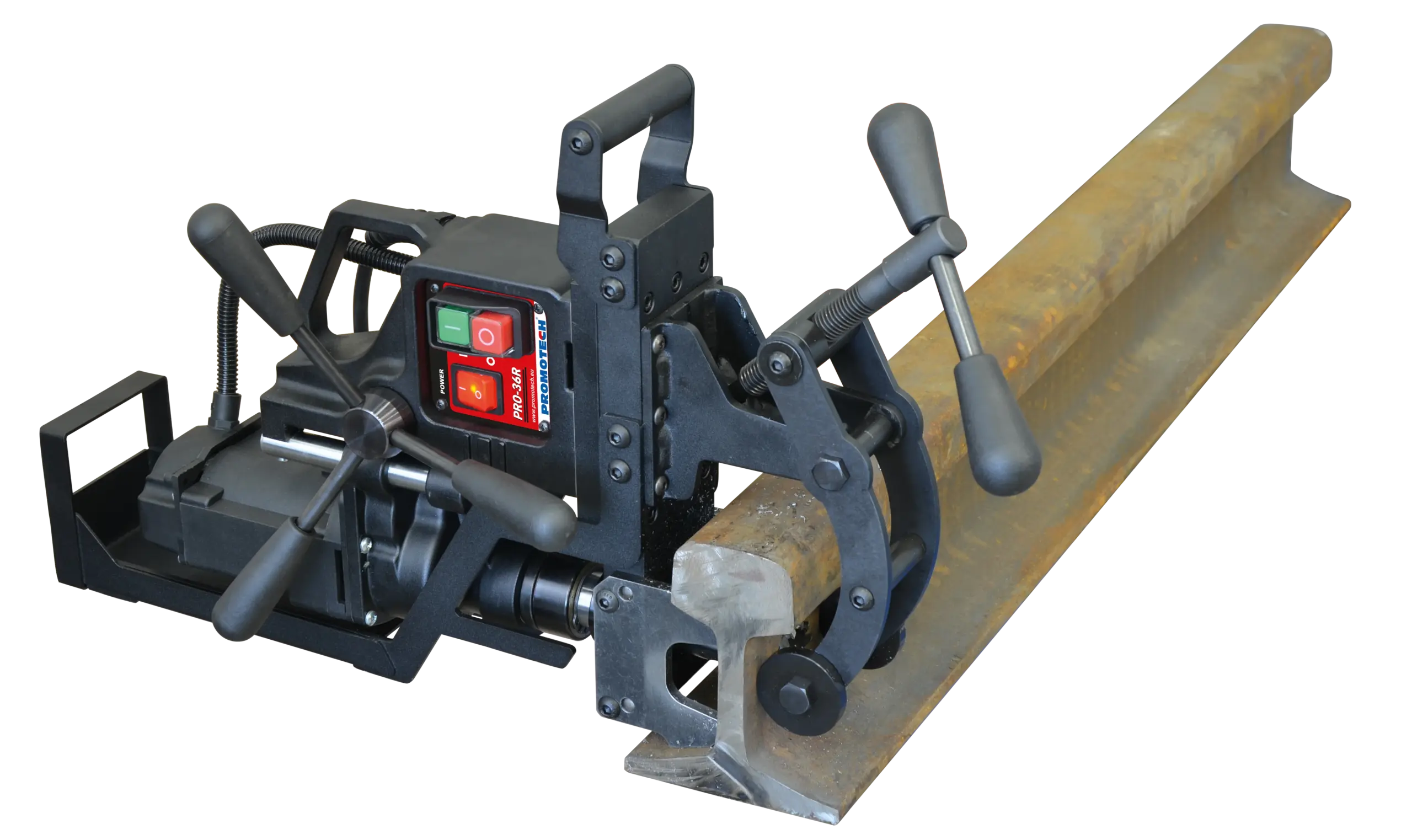

PRO-36R Electric Motor Rail Drill

Brand:
PRO-36R Electric Motor Rail Drill
PRO-36R Electric Motor Rail Drill - Image 2

PRO-36R Electric Motor Rail Drill

Brand:
Order a product
Technical specialist

PRO-36R enables drilling in rails of any standard by means of two optional rail profile templates and one hole center positioned, to be chosen by customers from a comprehensive range of auxiliary accessories dedicated to a variety of types of rails. PRO-36R can also be ordered with Honda 4-stroke petrol motor as PRO-36RH.

Features and Advantages

  • A powerful electric motor enables the drilling of holes up to 36 mm in diameter
  • Compact and lightweight rail drilling machine – suitable for site work
  • Fast positioning, quick clamping, and instant unlocking mechanisms make it an easy to use and safe device
  • Pressure Coolant system including 5l bottle enables forced feeding of the cooling medium in any drilling positions
  • Custom-made positions and templates to suit any required rail standards are available on request
  • 2 years of warranty

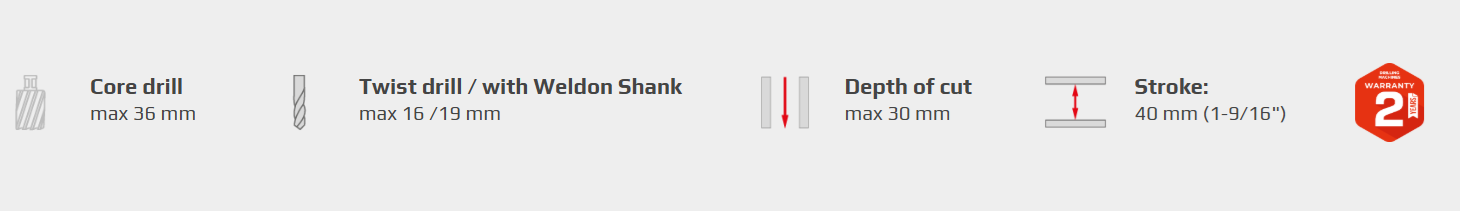

Technical Specifications
Tool Holder Arbor 19 mm; 3/4” Weldon
Max milling capacity 36 mm (1-7/16”)
Max drilling capacity Ø 16 mm (5/8”)
Stroke 40 mm (1-9/16”)
Max depth of cut 30 mm (1-3/16”)
Motor type

1~ 220–240 V, 50–60 Hz

1~ 110–120 V, 50–60 Hz
Power 1020 W
Speed (under load) 350 rpm
Weight 14,5 kg (32 lbs)

Product Code 230V/50Hz

Product Code 115V/60Hz

WRT-0676-10-20-00-0

WRT-0676-10-10-00-0
