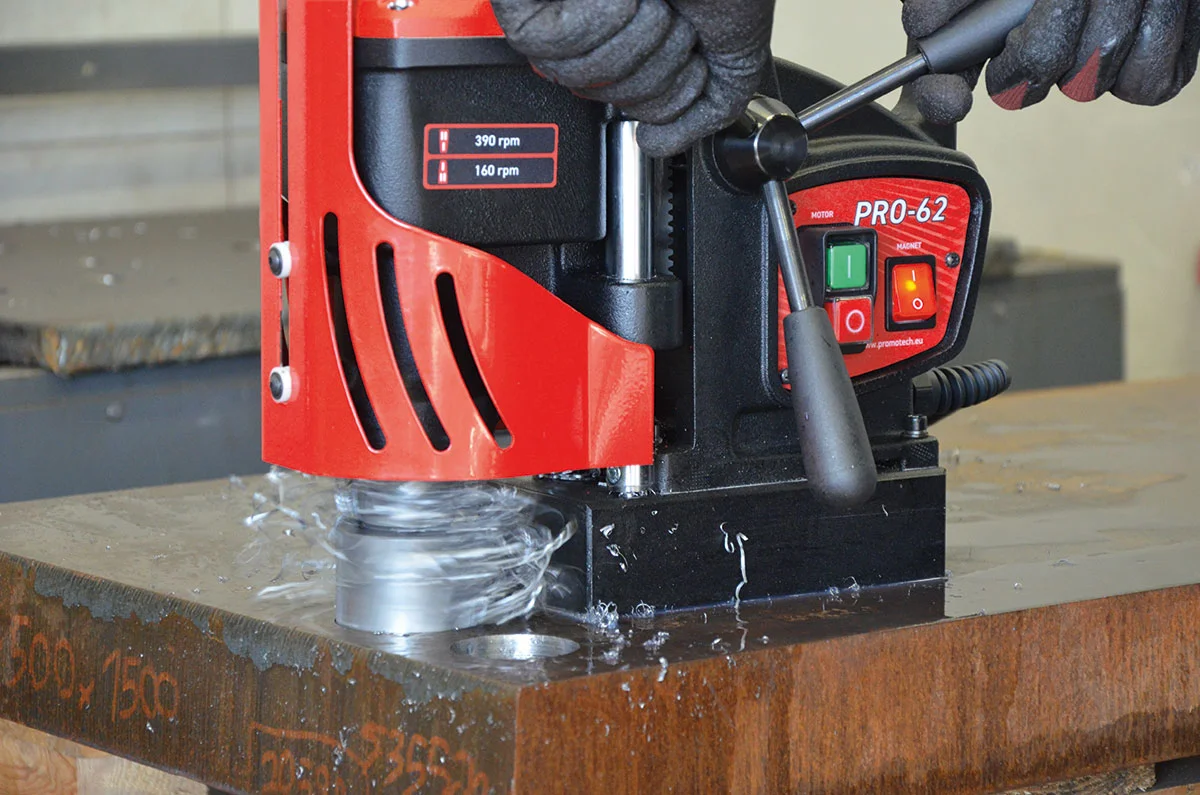

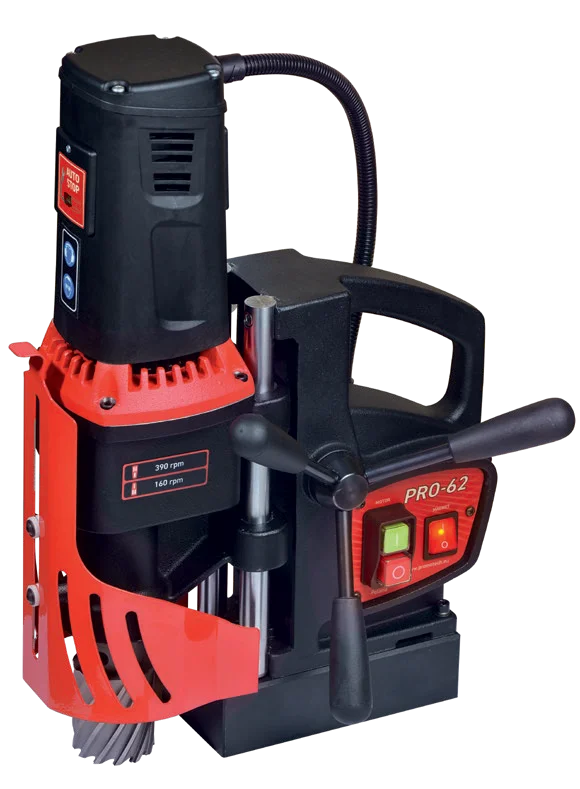

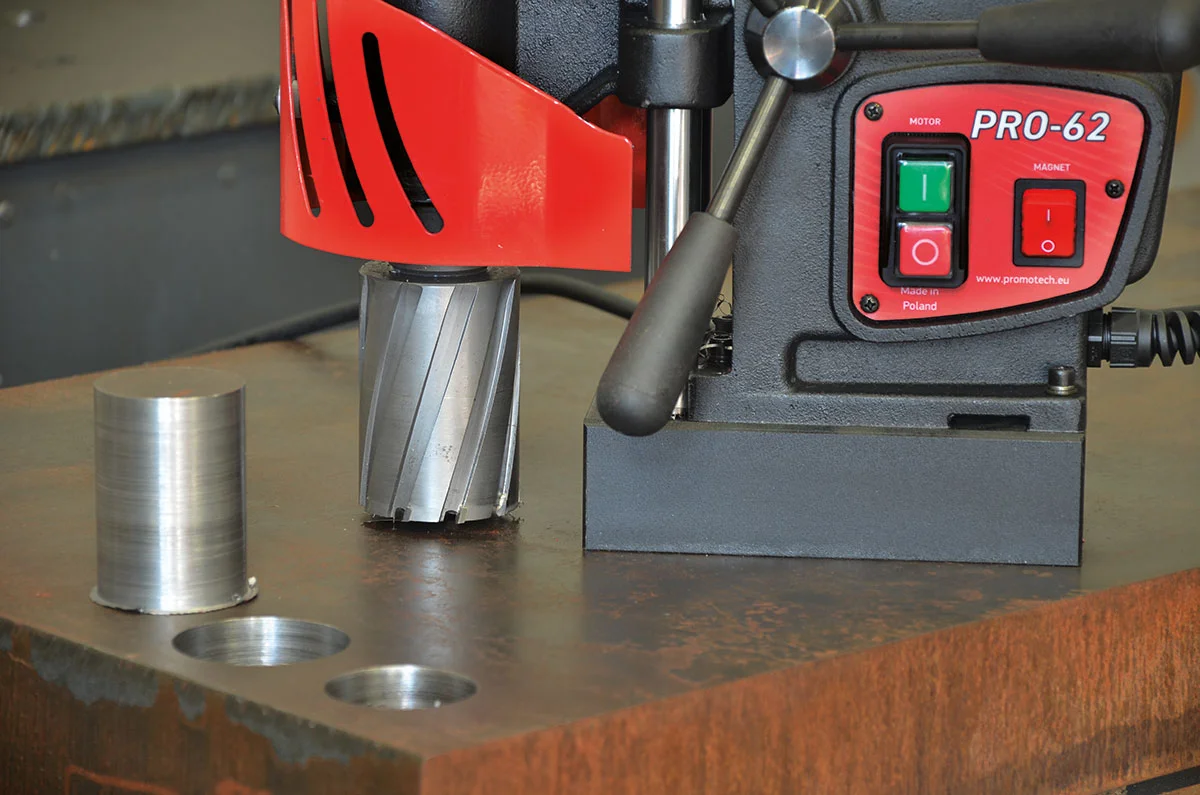

PRO-62 Annular Cutter Drilling Machine

Features and Advantages

Rigid casting prolonging the tool’s life
The motor stops when the brushes are worn out ( replace the brushes to restart the motor)
Innovative smart magnet with reduced weight
Large capacity coolant container, for more holes without re-fill
Energy Saving Base (ESB) uses only 50% of its power when the motor is not running
Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
Magnetic Power Adhesion Control (MPAC) detects the adhesive force of the electromagnetic base and protects both the machine and the operator from working on the too thin workpiece
2 years of warranty

Technical Specifications

Motor Speeds (under load)	160 rpm (gear I) 390 rpm (gear II)
Power	1600 W
Weight	17 kg (37 lbs)
Max milling capacity	65 mm (2-9/16”)
Stroke	95 mm (3-3/4”)
Max depth of cut	75 mm (3”)
Voltage	1~ 220–240 V, 50–60Hz 1~ 110–120 V, 50–60 Hz
MFSC (Magnetic Field Shape Control)	yes
MPAC (Magnetic Power Adhesion Control)	yes
ESB (Energy Saving Base	yes
Magnetic clamping force (surface with the thickness of 25 mm and roughness Ra = 1.25)	1122 kgf (11 000 N)
Magnet Base Dimensions	90 mm × 180 mm × 48 mm 3-9/16" x 7" x 1-7/8"
Min. Workpiece Thickness	8 mm (5/16)
Tool holder	19 mm (3/4”) Weldon
Product Code 220–240 V, 50–60 Hz	WRT-0630-10-20-00-0
Product Code 110–120 V, 50–60 Hz	WRT-0630-10-10-00-0
Product Code 110–120 V, 50–60 Hz	WRT-0630-10-10-00-0
