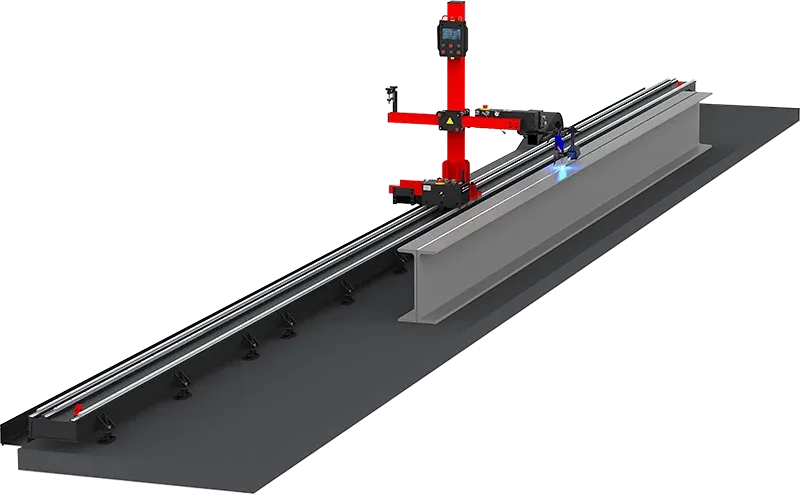

WA Compact Welding System

Advantages and Features

Advanced Welding Capabilities: Supports continuous and stitch welding using MIG/MAG method, ensuring versatility in different welding tasks.
Precision and Efficiency: Equipped with oscillation and joint tracking with motorized vertical slide, maintaining the correct torch position for high-quality welds.

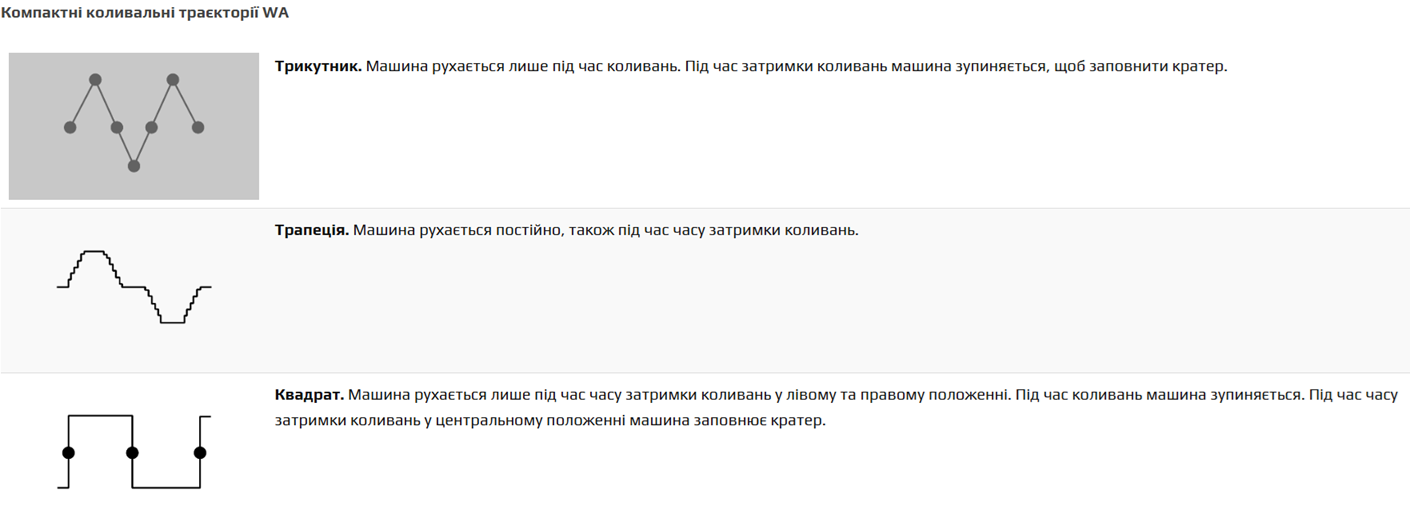

Flexible Oscillation Patterns: Offers weld paths such as straight, triangle, trapezoid, and square, increasing adaptability to different requirements.
User-Friendly Control: Ergonomic remote control pendant with simple and easy to find control knobs makes adjustments possible without lifting the operator’s welding hood
Custom Track Length: Track sections consist of 2 m support segments. The total length of the track can be tailored to the customer’s requirements.
Cost-Effective Solution: Budget-friendly advanced and versatile welding solution with customized workspace, making it a practical choice for both workshops and large industrial facilities

Technical Specifications

Voltage	1~ 110–120 V, 50–60 Hz 1~ 220–240 V, 50–60 Hz
Power	200 W
Torch type	MIG/MAG
MIG/MAG torch diameter	16–22 mm (5/8″–55/64″)
Horizontal speed	0,05–2,5 m/min (2–98 inch/min)
Standard torch travel length *	3.5 m
Standard overall track length *	4 m
* Can be extended by a 2 m long track section to maximum 20 m total length	Option
Cable chain in custom lengths on request	Option
Oscillation type	Linear
Weld path	Straight, triangle, trapezoid, square
Oscillation width	0–11,4 cm (0–4 31/64″)
Oscillation speed	0,1–2 m/min (4–79 inch/min)
Oscillation dwell time at center and on ends	0–5 s
Maximum oscillator pulling force	50 N
Allowed ambient temperature during operation	0–40°C (32–104°F)
Weight	950 kg (2095 lbs)
